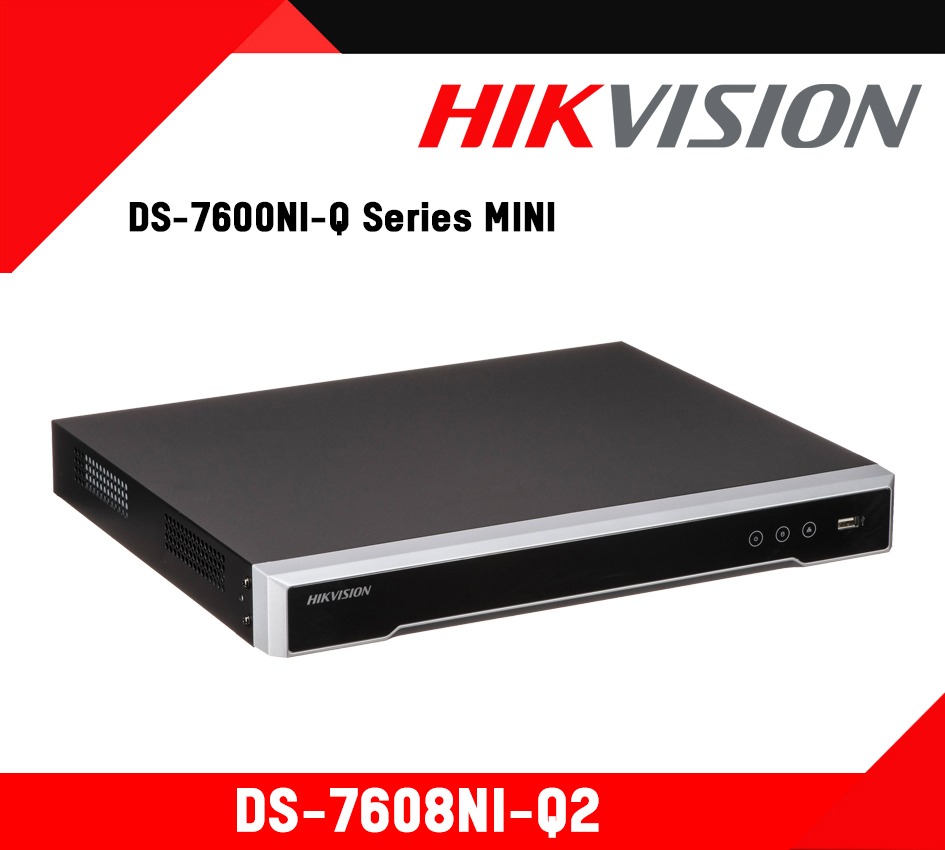

DS-7608NI-Q2 - Hikvision DS-7600NI-Q Series MINI NVR Colombo CCTV Srilanka
DS-7608NI-Q2
Availability: not in Stock

DS-7608NI-Q2

logo-2

Key Features

  • H.265+/H.265/H.264/H.264+ video formats
  • Connectable to the third-party network cameras
  • Up to 8 IP cameras can be connected
  • Recording at up to 8 MP resolution
  • Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
  • HDMI and VGA independent outputs
  • HDMI Video output at up to 4K (3840 × 2160) resolution
  • 2 SATA interfaces connectable for recording and backup
  • H.265+ compression effectively reduces the storage space and costs by up to 75%
  • 1 self-adaptive 10/100/1000 Mbps network interface
  • Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
  • Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
  • VCA detection alarm is supported
  • Instant playback for assigned channel during multi-channel display mode
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency
  • Hik-Connect for easy network management
Categories:

Description

User Manual of DS-7608NI-Q2

Quick Start Guide of DS-7608NI-Q2

Datasheet: DS-7608NI-Q2

Video/Audio Input
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input: 8-ch
IP Video input: Up to 8 MP resolution
Network
Incoming bandwidth: 80Mbps
Outgoing bandwidth: 80Mbps
Video/Audio Output
HDMI Output: 1-ch, resolution:4K (3840 × 2160)/30Hz,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback: 8-ch
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Live view / Playback: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Capability: 1-ch @ 8 MP / 4-ch @ 1080p
Hard Disk
SATA: 2 SATA interfaces
Capacity: Up to 6TB capacity for each HDD
External Interface
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: 2, USB2.0
General
Power Supply: 12 VDC
Consumption(without hard disk and POE): ≤ 15W
Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity: 10 % ~ 90 %
Chassis: 1U chassis
Dimensions: 385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
Weight(without HDD): ≤ 1.8 kg (4.0 lb)
