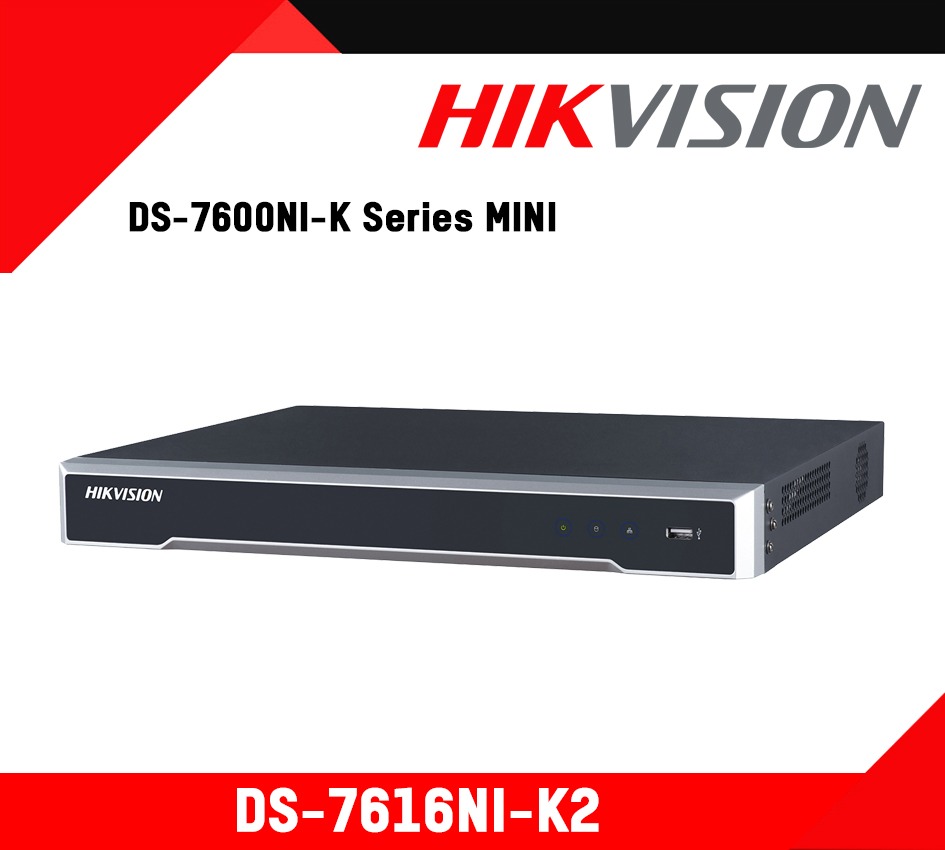

DS-7616NI-K2 Hikvision DS-7600NI-K Series Mini NVR Colombocctv.com Srilanka
DS-7616NI-K2
Availability: not in Stock

DS-7616NI-K2

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • Up to 16 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 4K high-definition live view, storage and playback
  • Up to 8-ch @ 1080p decoding capacity
  • Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 2 HDDs for continuous video recording
  • Compatible with third-party network cameras
  • Supports various specific function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
  • Channel-zero function ensures smooth remote live view and playback in low bandwidth environments
Categories:

Description

Data Sheet: DS-7616NI-K2
Decoding
  • Recording Resolution : 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Decoding Format : H.265/H.265+/H.264/H.264+/MPEG4
  • Synchronous Playback : 16-ch
  • Capability : 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
External Interface
  • Two-Way Audio Input : 1-ch, RCA (2.0 Vp-p, 1kΩ)
  • Network Interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • USB Interface : Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out : 4/1
General
  • Power Supply : 12 VDC,≤ 40 W
  • Consumption (Without HDD) : ≤15 W
  • Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity : 10 to 90 %
  • Dimensions (W × D × H) : 385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″)
  • Weight (Without Hard Disk) : ≤ 1 kg (2.2 lb)
Video/Audio Input
  • Incoming/Outgoing Bandwidth : 160 Mbps
  • IP Video Input : 16-ch
Video/Audio Output
  • VGA Output : 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI Output : 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Network Management
  • Network Protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk
  • SATA : 2 SATA interfaces
  • Capacity : Up to 6 TB capacity for each HDD
