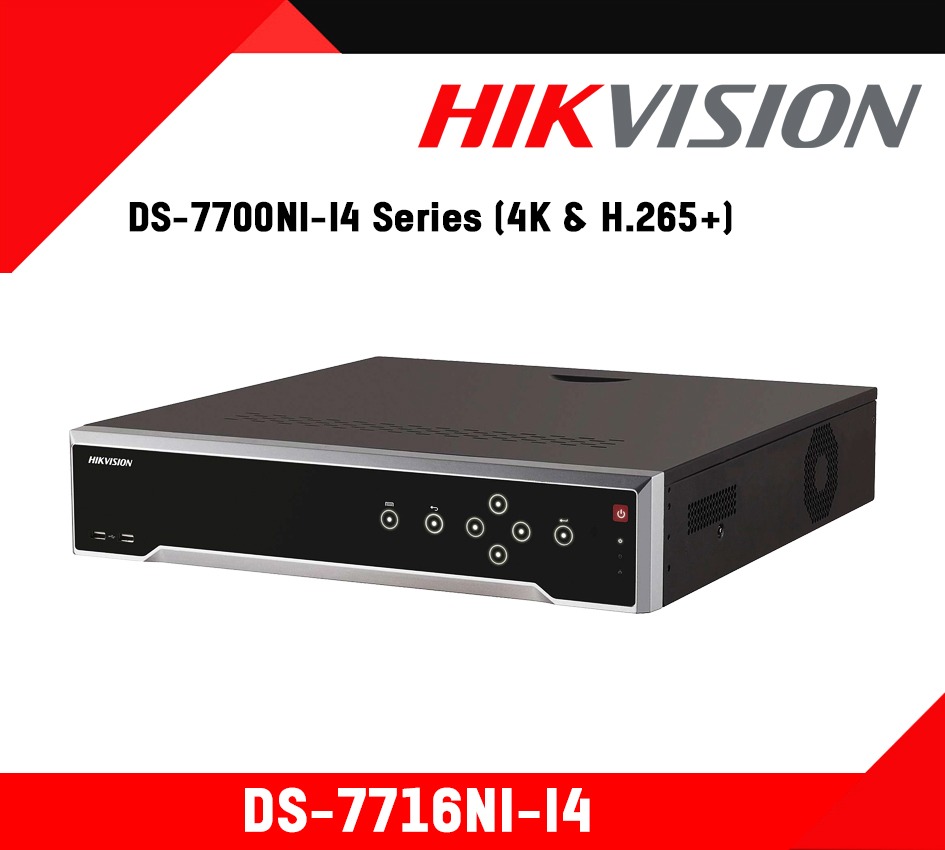

DS-7716NI-I4 Hikvision DS-7700NI-I4 Series (4K & H.265+) NVR Colombocctv.com Srilanka
DS-7716NI-I4
Availability: not in Stock

DS-7716NI-I4

logo-2

Key Features

  • Third-party network cameras supported
  • Up to 12 Megapixels resolution recording
  • Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160) resolution
  • 16/32-ch network cameras can be connected with 160M/256M incoming bandwidth
  • Up to 4 SATA interfaces
  • Plug & Play with up to 16 independent PoE network interfaces
  • Support dual-os to ensure high reliablility of system running
  • Support various VCA detection alarm and VCA search
  • Support H.265/H.264/MPEG4 video formats

Description

Datasheet – DS-7716NI-I4

Model DS-7716NI-I4
IP video input: 16-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth: 160Mbps
Outgoing bandwidth: 256Mpbs
Remote connection: 128
HDMI Output: 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback: 16-ch
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Live view / Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: 4-ch@8MP,16-ch@1080P
SATA: 4 SATA interfaces for 4HDDs
Capacity: Up to 6TB capacity for each HDD
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface: RS-232; RS-485;
USB Interface: Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In: 16-ch
Alarm Out: 4-ch
Interface: 16 independent 10/100 Mbps PoE Ethernet interfaces
Max. Power: 200W
Supported Standard: AF and AT
Power Supply: 100 to 240 VAC
Consumption(without hard disk and POE): ≤20 W
Working Temperature: -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: 10 % ~ 90 %
Chassis: 19-inch rack-mounted 1.5U chassis
Dimensions: 445 × 390 × 70 mm (17.5″× 15.3″ × 2.8″)
Weight(without HDD): ≤ 5 Kg (11 lb)
