Description

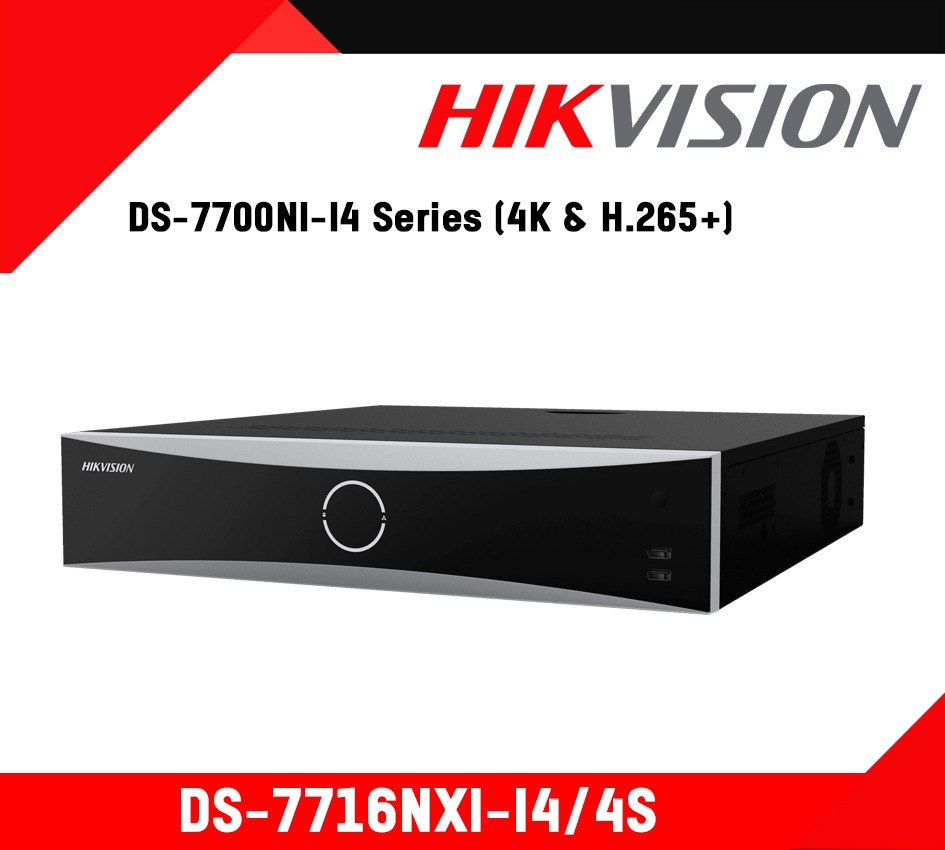

User Manual of DS-7716NXI-I4/4S
Quick Start Guide of DS-7716NXI-I4/4S
| Video/Audio Input | |
|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input: | 16-ch |
| Network | |
| Incoming bandwidth: | 256Mbps |
| Outgoing bandwidth: | 200Mbps |
| Video/Audio Output | |
| HDMI/VGA output: | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz. 4K resolution is only available for HDMI. |
| CVBS Output: | 1-ch, BNC(1.0Vp-p, 75Ω) Resolution: 704×576(PAL); 704×480(NTSC) |
| Synchronous Playback: | 16-ch |
| Decoding | |
| Capability: | 12-ch @ 1080p |
| Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Hard Disk | |
| eSATA: | 1 eSATA interface |
| SATA: | 4 SATA interfaces for 4HDDs |
| Capacity: | Up to 8TB capacity for each HDD |
| External Interface | |
| Network Interface: | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
| Serial Interface: | RS-232, RS-485, Keyboard |
| USB Interface: | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Alarm In: | 16-ch |
| Alarm Out: | 4-ch |
| General | |
| Power Supply: | 100 to 240 VAC |
| Power: | ≤ 80 W |
| Consumption(without hard disk and POE): | ≤ 30 W |
| Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity: | 10 % ~ 90 % |
| Dimensions: | 445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″) |
| Weight(without HDD): | ≤ 5 kg (11 lb) |
