Description

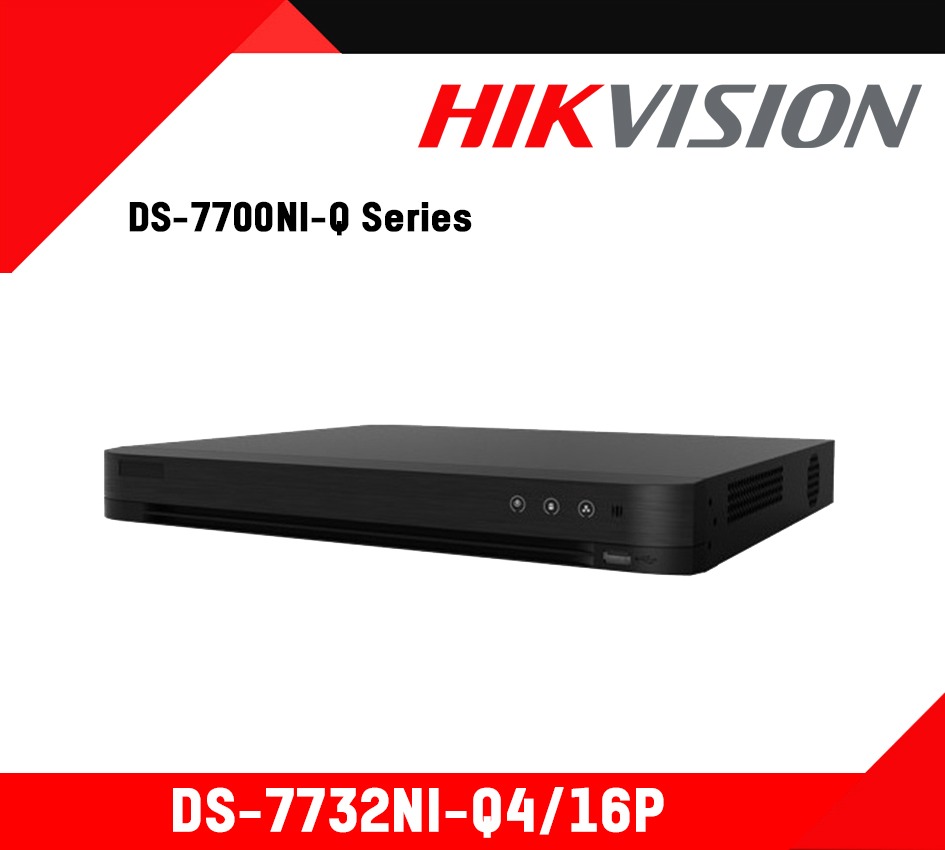

Datasheet: DS-7732NI-Q4/16P
Quick User Guide: DS-7732NI-Q4/16P
Video And Audio
- IP Video Input: 32-ch,Up to 8 MP resolution
- HDMI Output: 1-ch, 1920 × 1080/60Hz,,1600 × 1200/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz;,
- VGA Output: HDMI,VGA
- Incoming Bandwidth: 128 Mbps,200 Mbps
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
- Decoding Format: H.265+,H.265,H.264+,H.264
- Decoding Capability: 1-ch @ 8 MP (30 fps) / 4-ch @ 1080p (30 fps)
- Synchronous Playback: 16-ch
- Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Network
- Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: 16-ch
- Power: ≤ 150W
- Standard: IEEE 802.3 af/at
RAID
- RAID Type: No
Auxiliary Interface
- SATA: 4, SATA interface
- Capacity: Up to 6 TB capacity for each disk
- Serial Interface: 1 RS-485 (half-duplex), 1 RS-232
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out: 16/4 (16/8 optional)
General
- Power Supply: 100 to 240 VAC or ≤ 300 W
- Consumption: ≤ 15 W (without enabling PoE)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10 % to 90 %
- Dimension (W × D × H): 440 × 393 × 75 mm (17.3″ × 15.5″ × 3.0″)
- Weight: ≤ 5 kg (11 lb)
