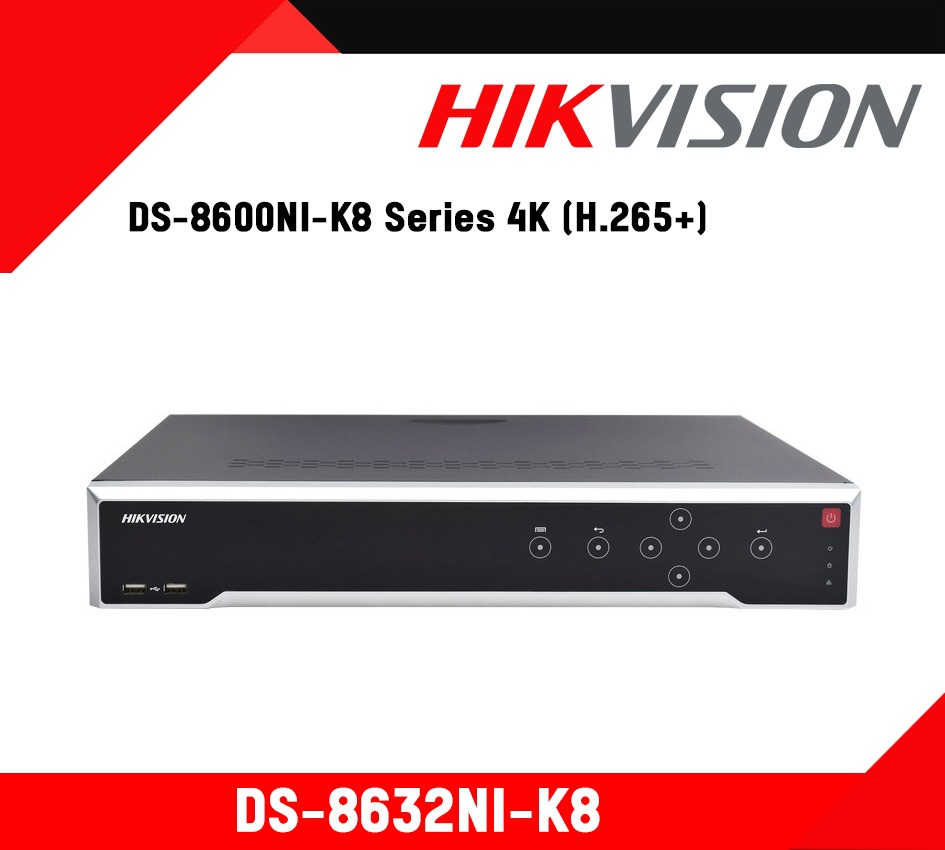

DS-8632NI-K8 Hikvision DS-8600NI-K8 Series 4K (H.265+) NVR Colombocctv.com Sri Lanka
DS-8632NI-K8
Availability: not in Stock

DS-8632NI-K8

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • Up to 32 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264/MPEG4 video formats
  • Up to 4K high-definition live view, storage and playback
  • Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 2 HDMI (different source) and 2 VGA (different source) interfaces
  • 8 HDD can be used for continuous video recording
  • Compatible with third-party network cameras
  • Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera
    Advanced streaming technology enables smooth live view in poor network conditions.
Categories:

Description

Data Sheet: DS-8632NI-K8
User Manual: DS-8632NI-K8
Quick Start Guide: DS-8632NI-K8



Decoding
Recording Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF
Decoding Format : H.265/ H.265+/H.264/H.264+/MPEG4
Synchronous Playback : 16-ch
Capability : 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)

External Interface
Two-Way Audio Input : 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Network Interface : 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Serial Port : RS-232; RS-485; Keyboard
USB Interface : Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out : 16/4

General
Max. Power : 200 W
Power Supply : 100 to 240 VAC, 50 to 60 Hz
Consumption (Without HDD) : ≤ 30 W
Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity : 10 to 90 %
Dimensions (W × D × H) : 445 × 470 × 90 mm (17.5″ × 18.5″ × 3.5″)
Weight (Without Hard Disk) : ≤ 8 kg (17.6 lb)
Chassis : 19-inch rack-mounted 2U chassis

Video/ Audio Input
IP Video Input : 32-ch
Incoming/Outgoing Bandwidth : 160 Mbps or 256 Mbps

Video/ Audio Output
VGA1 /HDMI : 1 Output HDMI1: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
VGA2 /HDMI : 2 Output VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
Audio Output : 2-ch, RCA (Linear, 1 K Ω)

Network Management
Network Protocols : TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk
SATA : 8 SATA interfaces
ESATA (Optional) : 1 eSATA interface
Capacity : Up to 6 TB capacity for each HDD
