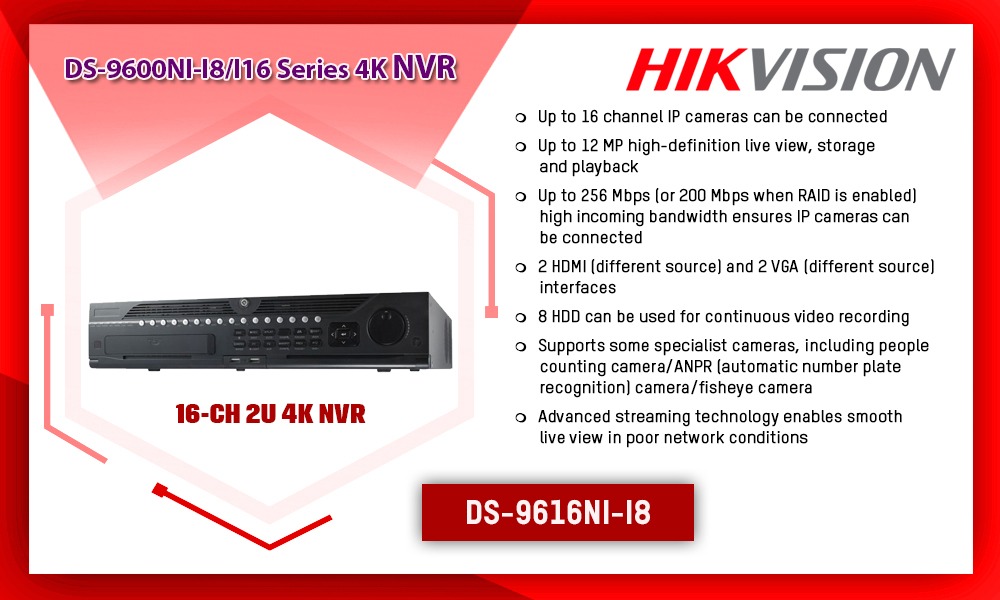

DS-9616NI-I8

Description

Datasheet: DS-9616NI-I8

User Manual: DS-9616NI-I8

Quick Start Guide: DS-9616NI-I8

Specification

Video And Audio

• IP Video Input: 16-ch
  Up to 12 MP resolution
  *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
• Incoming Bandwidth: 256 Mbps
• Outgoing Bandwidth: 256 Mbps
• Incoming Bandwidth (RAID Mode): 200 Mbps
• Outgoing Bandwidth (RAID Mode): 200 Mbps
• HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA 1 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode
  • HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output
  • HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output: 2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4
• Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
• Synchronous Playback: 16-ch
• Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
• Dual-Stream Recording: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

• Remote Connection: 128
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

• RAID Type: RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)

Auxiliary Interface

• Serial Interface: 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
• SATA: 8 SATA interfaces supporting hot-plug
• ESATA: 1 eSATA interface
• Capacity: Up to 10TB capacity for each disk
• Alarm In/Out: 16/4
• USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Consumption: ≤ 30 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Chassis: 2U chassis
• Dimension (W × D × H): 445 × 465 × 92 mm ( 17.5″× 18.3″ × 3.6″)
• Weight: ≤ 10 kg (22 lb)

Certification

• FCC: Part 15 Subpart B, ANSI C63.4-2014
• CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
