Description
Quick Start Guide: DS-9632NI-I16
Communication Matrix: DS-9632NI-I16

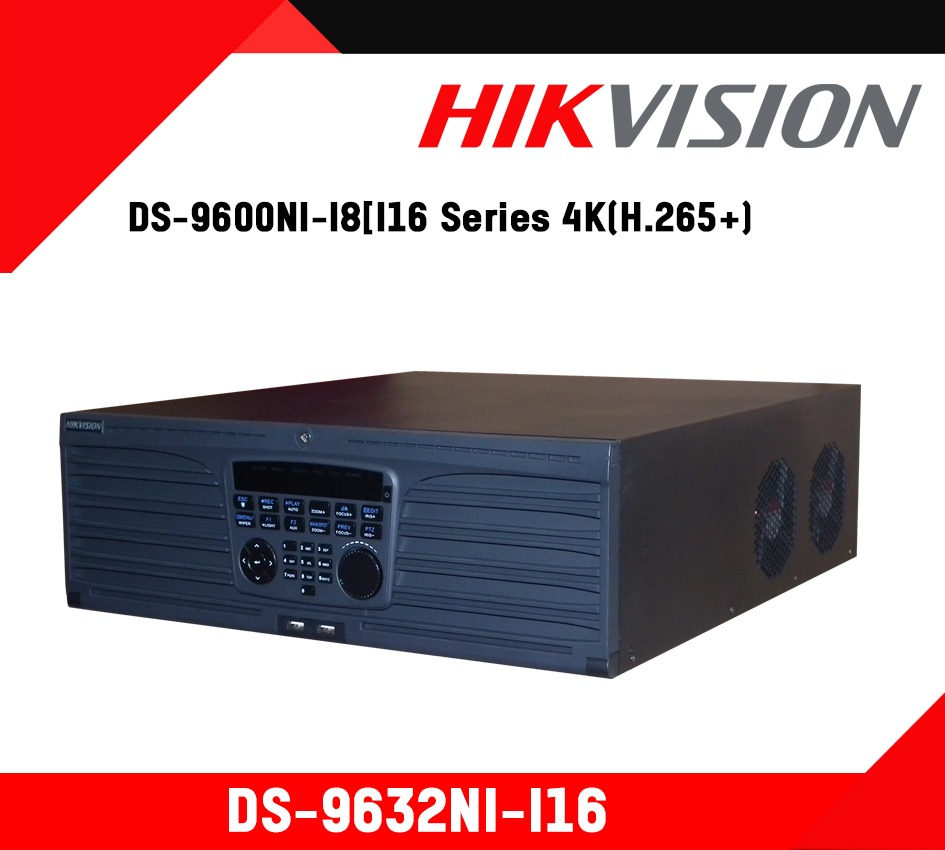

| Model | DS-9632NI-I16 |
|---|---|
| IP video input: | 32-ch |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Incoming bandwidth: | 320Mbps or 200Mbps(when RAID is enabled) |
| Outgoing bandwidth: | 256Mpbs or 200Mbps(when RAID is enabled) |
| Remote connection: | 128 |
| HDMI/VGA output: | 2-ch, resolution: HMDI1/VGA1:HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | 2-ch, RCA (2.0Vp-p, 1KΩ) |
| Synchronous Playback: | 16-ch |
| Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | 4-ch@4K, 16-ch@1080p |
| SATA: | 16 SATA interfaces for 16 HDDs |
| Interface Type: | 1 eSATA interface |
| Capacity: | Up to 6TB capacity for each HDD |
| Array type: | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Number of array: | 5 |
| Network Interface: | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
| Serial Interface: | RS-232, RS-485, Keyboard |
| USB Interface: | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Power Supply: | 100 to 240 VAC, 50 to 60 Hz |
| Consumption(without hard disk and POE): | ≤ 45 W |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | 10 % ~ 90 % |
| Chassis: | 19-inch rack-mounted 2U chassis |
| Dimensions: | 445 × 496 × 146 mm (17.5 × 19.5 × 5.7″) |
| Weight(without HDD): | ≤ 12.5 Kg (27.6 lb) |
