DS-9632NI-I8
Vous êts ici:
ColomboCCTV Home Page
/
/
/
DS-9632NI-I8

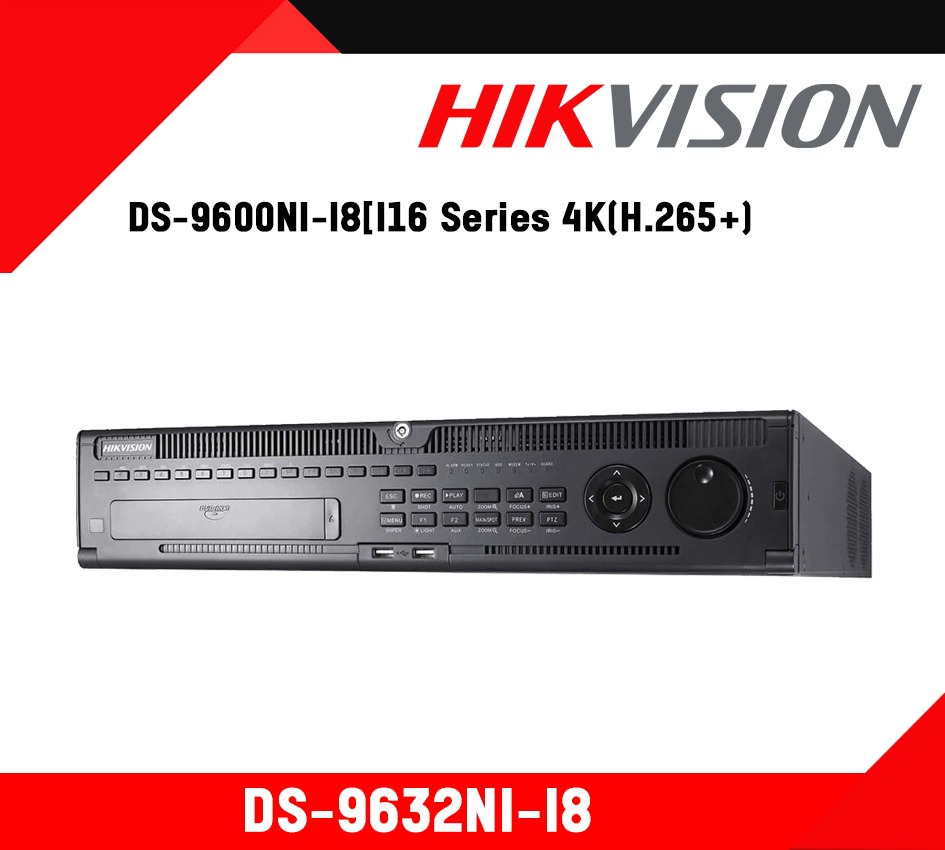

DS-9632NI-I8 - Hikvision DS-9600NI-I8 [I16 Series 4K[H.265+] NVR Colombo CCTV Srilanka
DS-9632NI-I8
Availability: not in Stock

DS-9632NI-I8

logo-2

Key Features

  • H.265, H.264+, H.264, MPEG4 Video Formats
  • Up to 12 Megapixels Resolution Recording
  • Synchronous 2-ch HDMI, 2-ch VGA and HDMI1 4 K (3840 x 2160) Resolution
  • Connect Up to 32/64 IP Cameras with 320 Mbps Incoming Bandwidth
  • Up to 8 SATA HDD and 1 eSATA Interface for Record and Backup
  • Redundant Power Supply To Improve System Stability
  • HDD Hot-Swap with Configurable RAID 0, RAID 1, RAID 5, RAID 10
  • VCA Detection Alarm and VCA Search
  • RS-485 Control Hikvision-C and Pelco D/P Protocol
  • Instant Camera Playback During Multi-Channel Live View
  • 16-ch Synchronous Playback
  • Reverse Playback for Multi-Channels
  • Smart Search and Playback for Efficiency
  • Customization of Tags, Searching, and Playing Back by Tags
  • Alarm I/O, 16/4
  • HDD Quota and Group Management
  • Hikvision DDNS (Dynamic Domain Name System)
  • Third-Party Network Cameras Supported
Categories:

Description

Datasheet : DS-9632NI-I8

User Manual : DS-9632NI-I8

Quick Start Guide : DS-9632NI-I8

Model DS-9632NI-I8
IP video input 32-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Video Compression H.265, H.264+, H.264, MPEG4
Incoming bandwidth 320 Mbps, or 200 Mbps (when RAID is enabled)
Outgoing bandwidth 256 Mbps, or 200 Mbps (when RAID is enabled)
Remote connection 128
Recording resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/ 4CIF/DCIF/2CIF/CIF/QCIF
VGA1/HDMI1 Output Resolution HDMI1: 4K (3840 × 2160), 2K (2560 × 1440), 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
VGA1: 2K (2560 × 1440), 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
VGA2/HDMI2 Output Resolution 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
Audio output 2-ch, RCA (2.0 Vp-p, 1 K Ω)
Decoding Format H.265, H.264+,H.264/MPEG4
Live view / Playback resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/ VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16-ch
Capability 4-ch@4K,or16-ch@1080p
5-ch@1080P
SATA 8 SATA interfaces for 8 HDDs
eSATA 1 eSATA interface
Capacity Up to 6TB capacity for each HDD
DVD-RW Supported (replaces 4x SATA HDD)
Array type RAID0, RAID1, RAID5, RAID10
Number of array 4
Network interface
 2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces
USB interface
  Front panel: 2 × USB 2.0; rear panel: 1 × USB 3.0
Serial interface RS-232; RS-485; Keyboard;
Alarm in / out 16 / 4
Power supply
  100 to 240 VAC, 50 to 60 Hz
Maximum Power 200 W
Consumption (w/o hard disk) ≤30 W (without HDD or DVD-RW)
Working temperature -10° to +55° C (14 to 131° F), 10% to 90% humidity
Chassis 19-inch rack-mounted 2U chassis
Dimensions
(W × D × H)
  445mm×470mm×90mm(17.5″×18.5″×3.5″)
Weight (w/o hard disk) ≤10 Kg (22 lb)
