Description

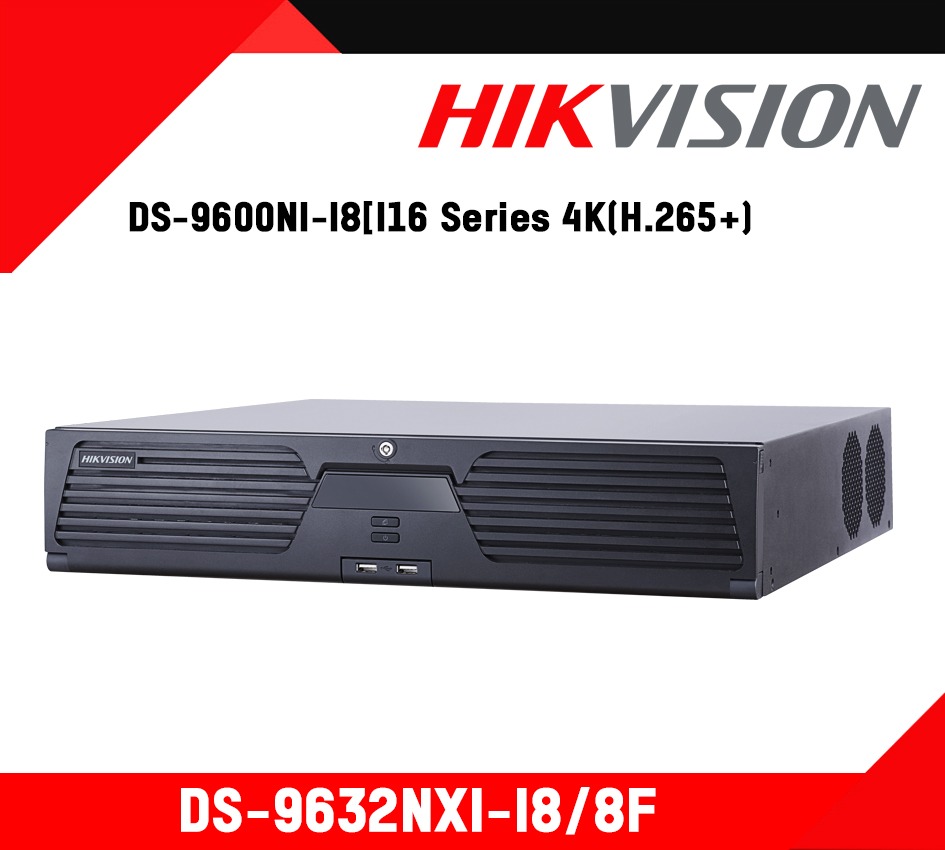

Quick Start Guide: DS-9632NXI-I8/8F
Release Notes: DS-9632NXI-I8/8F
Video/Audio Output | |
---|---|
VGA1 /HDMI1 Output | VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA2 /HDMI2 Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
Video/Audio Input | |
IP Video Input | 32-ch |
Incoming/Outgoing Bandwidth | 320 Mbps/256 Mbps |
Decoding | |
Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 |
Video Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF |
Synchronous Playback | 16-ch |
Capability | 16-ch @ 1080p |
General | |
Power | 200 W |
Power Supply | 220 VAC |
Consumption (Without HDD) | ≤ 70 W |
Working Temperature | -10 to +55° C (+14 to +131° F) |
Working Humidity | 10 to 90 % |
Dimensions (W × D × H) | 445 × 470 × 90 mm (17.5″× 18.5″ × 3.5″) |
Weight (Without Hard Disk) | ≤ 10 kg (22 lb) |
Chassis | 19-inch rack-mounted 2U chassis |
Face Detection And Analytics | |
Face Picture Library | 32 libraries 100, 000 pictures |
Face Picture Comparison Alarm | 8-ch face pictures comparison alarm,,Alarm linkage actions: recording, audio warning, notify surveillance center, send email, |
Face Picture Search | Search by picture is supported |
Hard Disk | |
SATA | 8 SATA interfaces |
ESATA (Optional) | 1 eSATA interface |
Capacity | Up to 10 TB capacity for each HDD |
External Interface | |
Two-Way Audio Input | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
Serial Port | RS-232; RS-485; Keyboard |
USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
Alarm In/Out | 16/4 (16/8 is optional) |
Human/Vehicle Analysis | |
False Alarm Filtering | Up to 16-ch 2 MP video analysis for human and vehicle recognition to filter false alarm |
Disk Array | |
RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
