DS-9664NI-I16

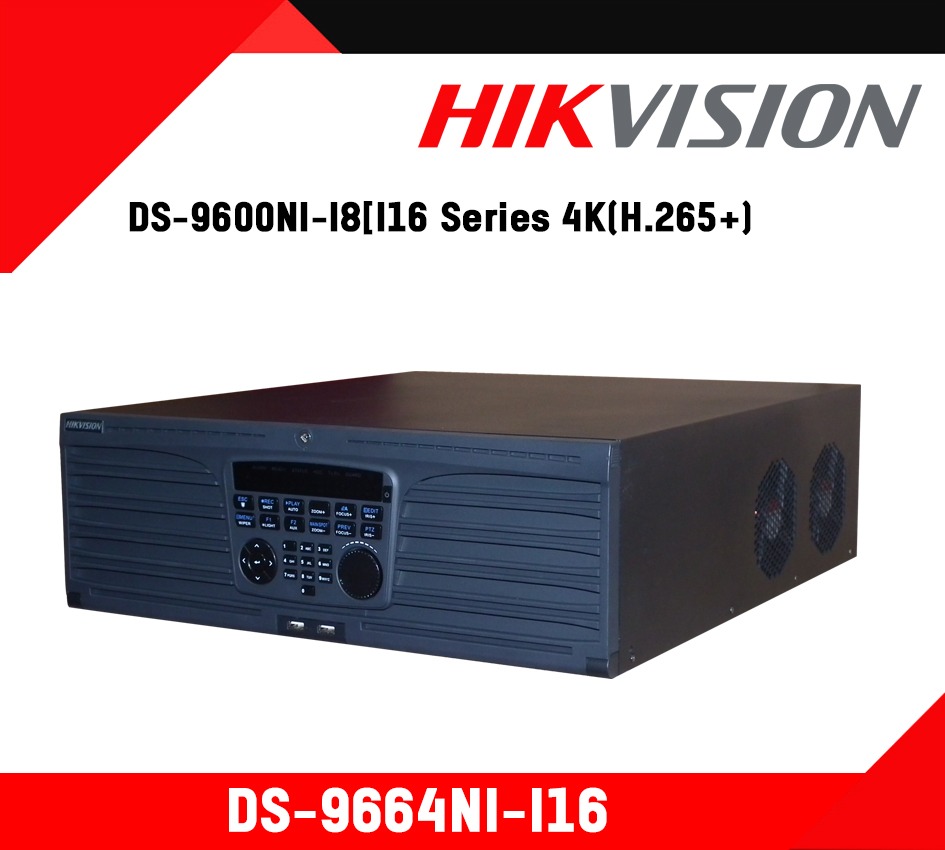

DS-9664NI-I16 Hikvision DS-9600NI-I8/I16 Series 4K(H.265+) NVR Colombocctv.com Sri-Lanka
DS-9664NI-I16
Availability: not in Stock

DS-9664NI-I16

logo-2

Embedded 4K NVR: DS-9664NI-I16

  • Third-party network cameras supported
  • Up to 12 Megapixels resolution recording
  • Support 2-ch HDMI, 2-ch VGA, HMDI1 at up to 4K(3840×2160) resolution
  • Up to 64 IP cameras can be connected with 320M incoming bandwidth
  • Up to 16 SATA interfaces
  • Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
  • Support various VCA detection alarm and VCA search
  • Support H.265/H.264/MPEG4 video formats
Categories:

Description

Datasheet: DS-9664NI-I16

Quick Start Guide: DS-9664NI-I16

Specification of DS-9664NI-I16

Video And Audio

  • IP Video Input: 64-ch

    Up to 12 MP resolution

    *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.

  • Incoming Bandwidth: 320 Mbps
  • Outgoing Bandwidth: 256 Mbps
  • Incoming Bandwidth (RAID Mode): 200 Mbps
  • Outgoing Bandwidth (RAID Mode): 200 Mbps
  • HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA 1 Output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA 2 Output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output Mode
    • HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
    • HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output: 2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

  • Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
  • Recording Resolution:

    32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF

    *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.

  • Synchronous Playback: 16-ch
  • Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
  • Dual-Stream Recording: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

  • RAID Type: RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)

Auxiliary Interface

  • Serial Interface: 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
  • SATA: 16 SATA interfaces supporting hot-plug
  • ESATA: 1 eSATA interface
  • Capacity: Up to 10TB capacity for each disk
  • Alarm In/Out: 16/8
  • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: ≤ 45 W
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10 to 90 %
  • Chassis: 3U chassis
  • Dimension (W × D × H): 445 × 496 × 146 mm (17.5″ × 19.5″ × 5.7″)
  • Weight: ≤ 12.5 kg (27.6 lb)

Certification

  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
