DS-D1050EH
Vous êts ici:
ColomboCCTV Home Page
/
/
/
DS-D1050EH

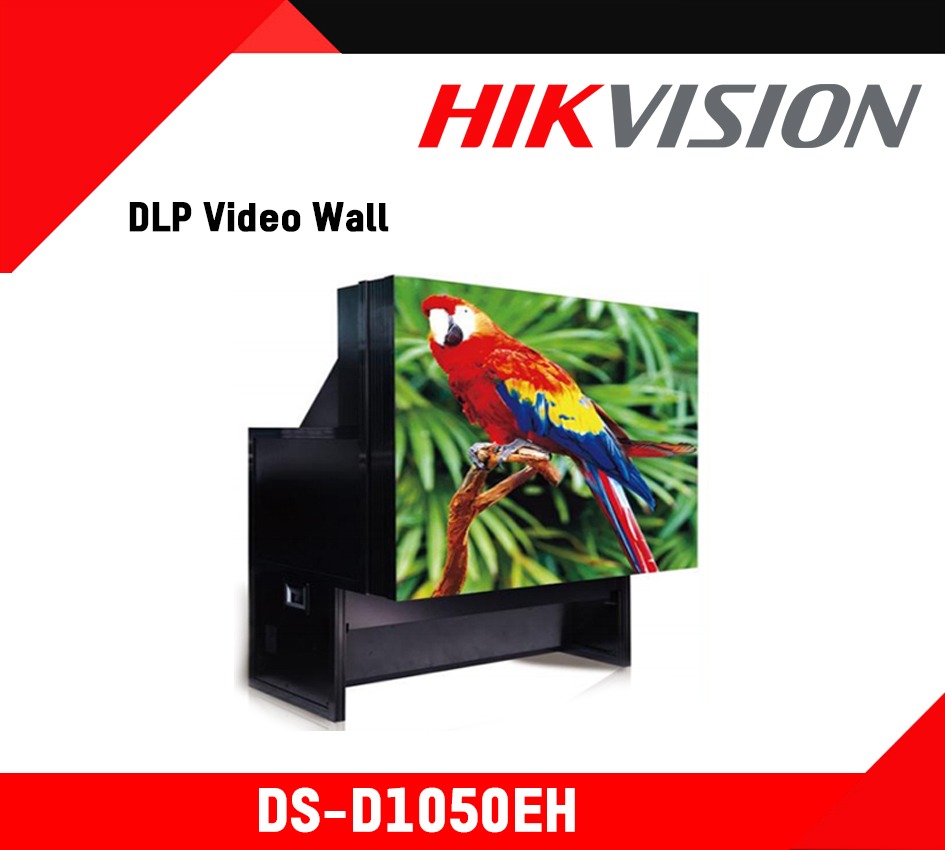

DS-D1050EH Hikvision DLP Video Wall Colombocctv.com Srilanka
DS-D1050EH
Availability: not in Stock

DS-D1050EH

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • Adopting the latest LED cold light source technology, the display unit has an ultra wide color gamut range to provide a better control on the color performance. The degree of color saturation is 140%.
  • Long lifetime as 60000 hours
  • LED fast switching
  • Automatic color and brightness adjustment ensures the evenness of the color and brightness.
  • In-built image processor
  • PIP display
  • The video window can roam, scale, and overlap in the video wall as a floating window.
  • IP5X for Ingress Protection
  • Solid state components reduce the moving parts wear condition thus improve the steadiness and reliability of the LED mechanism
  • A closed structure design, with multiple air filtering system for dust-proof
  • Solid state LED for green and environmental illumination with no mercury pollution
Category:

Description

Datasheet : DS-D1050EH

DLP Unit
Display Technology Superior 0.95″ 1-chip DLP, LVDS DMD Chip, 12° Deflection Angle
Physical Resolution SXGA+(1400×1050)
Dimension 50”
Width(mm) 1016
Height(mm) 762
Output Brightness 1200 ANSI(Typical)
Contrast [2500:1]
Evenness > 93%
Lamp Bulb 3*6 LED
Color Temperature 3200k, 6500k, 7500k, 9300k
Average Lifespan 60000-100000 Hours
Scanning Frequency Horizontal: 15kHz-120kHz Vertical: 24Hz-120Hz
Input Interface
Analog RGB1 D-Sub 15p
Analog RGB2 5BNC
Digital RGB1 DVI-I
Digital RGB1 DVI-I
Digital RGB2 HDMI
ETHERNET RJ45
RS232C D-Sub 9p
RS422 RJ45
Output Interface
Digital RGB DVI-D
RS422 RJ45
Control RS232C, RS422 and Ethernet
power Supply AC 100V–240V@50/60Hz
Power Consumption 365W(Bright Mode),295W(Normal Mode),265W(Power Save Mode)
Working Temperature 0 °C-40 °C (Recommended Temperature22 °C± 5 °C)
Working Humidity 10%-85% (Non-condensing)
Color 16.7M
24-bit True Color Weight
