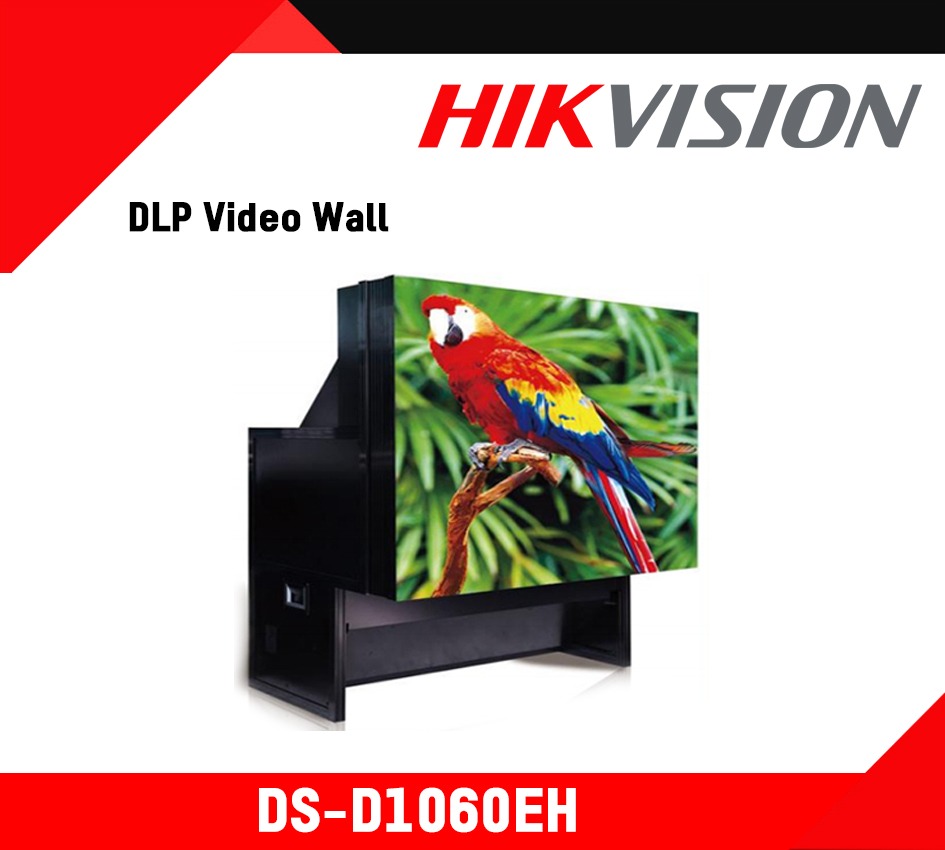

DS-D1060EH
DS-D1060EH
Availability: not in Stock

DS-D1060EH

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

• Adopting the latest LED cold light source technology, the display unit has an ultra wide color gamut range to provide a better control on the color performance. The degree of color saturation is 140%.
• Long lifetime as 80000-100000 hours;
• LED fast switching;
• Automatic color and brightness adjustment ensures the evenness of the color and brightness.
• In-built image processor ;
• PIP display;
• The video window can roam, scale, and overlap in the
video wall as a floating window.
• IP5X for Ingress Protection
• Solid state components reduce the moving parts wear condition thus improve the steadiness and reliability of the LED mechanism;
• A closed structure design, with multiple air filtering system for dust-proof;
• Solid state LED for green and environmental illumination with no mercury pollution;

Description

Data sheet : DS-D1060EH

DLP Unit
Display Technology: Display Technology Superior 0.95″ 1-chip DLP, LVDS DMD Chip, 12° Deflection Angle
Physical Resolution: SXGA+(1400×1050)
Dimension: 60″
Width(mm): 1219
Height(mm): 914
Depth (mm): 761
Contrast: 2500:1
Output Brightness: 1200 ANSI(Typical)
Evenness: > 93%
Lamp Bulb: 3*6 LED
Color Temperature: 3200k, 6500k, 9300k
Average Lifespan: 80000-100000 Hours
Scanning Frequency
Horizontal: 15kHz-120kHz
Vertical: 24Hz-120Hz
Input Interface
Analog RGB1: D-Sub 15p
Analog RGB2: 5BNC
Digital RGB1: DVI-I
Digital RGB2: HDMI
ETHERNET: RJ45
RS232C: D-Sub 9p
RS422: RJ45
Output Interface
Digital RGB: DVI-D
RS422: RJ45
General
Control: RS232C, RS422 and IR Remote
Power Supply: AC 100V–240V@50/60Hz
Color: 16.7M; 24-bit True Color
Power Consumption: 283W(Bright Mode),240W(Normal Mode),132W(Power Save Mode)
Working Temperature: -5 °C~40 °C (Recommended Temperature22 °C±5 °C)
Weight: 100kg
Working Humidity: 10%-85% (Non-condensing)
