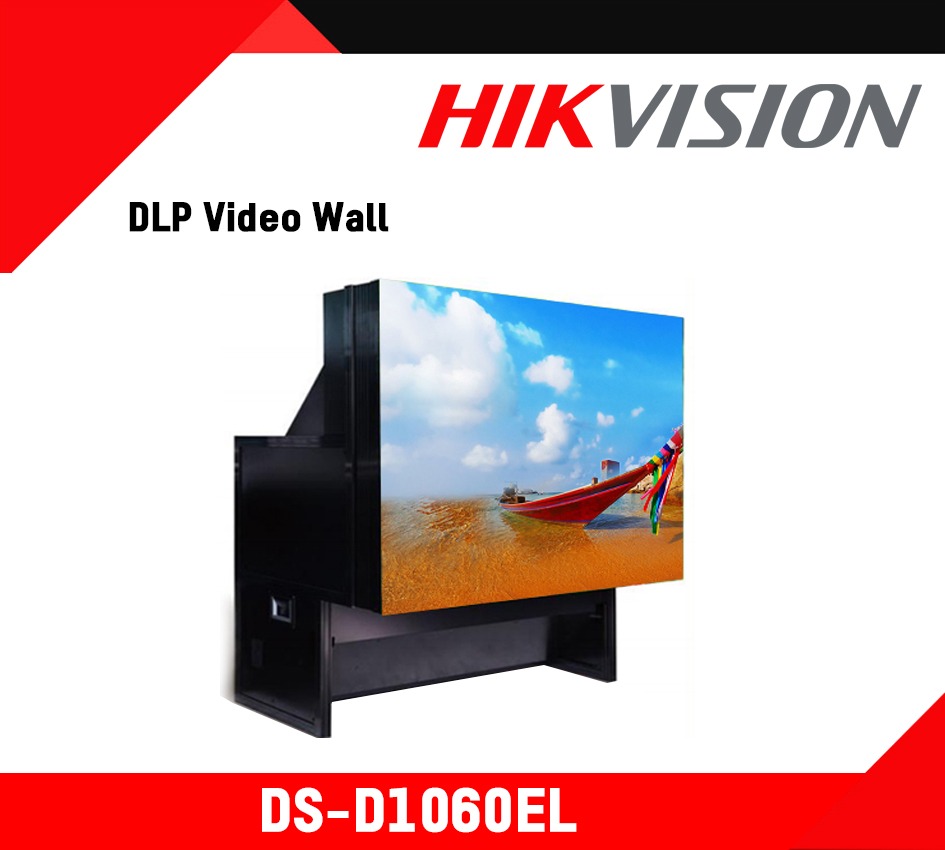

DS-D1060EL Hikvision DLP Video Wall Colombocctv.com Srilanka
DS-D1060EL
Availability: not in Stock

DS-D1060EL

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • Adopting the latest LED cold light source technology, the display unit has an ultra wide color gamut range to provide a better control on the color performance. The degree of color saturation is 140%
    Long lifetime as 60000 hours
  • LED fast switching
  • Automatic color and brightness adjustment ensures the evenness of the color and brightness
  • In-built image processor
  • PIP display
  • The video window can roam, scale, and overlap in the video wall as a floating window.
  • IP5X for Ingress Protection
  • Solid state components reduce the moving parts wear condition thus improve the steadiness and reliability of the LED mechanism
  • A closed structure design, with multiple air filtering system for dust-proof
  • Solid state LED for green and environmental illumination with no mercury pollution
Category:

Description

Datasheet : DS-D1060EL

DLP Unit
Display Technology: Superior 0.7″ 1-chip DLP, LVDS DMD Chip, 12° Deflection Angle
Physical Resolution: XGA+(1024×768)
Dimension: 60″
Width(mm): 1219
Height（mm）: 914
Depth （mm）: 761
Contrast: 2000:1 (Typical); 100000:1 (Dynamic)
Output Brightness: 1100 ANSI(Typical)
Working Resolution: UXGA (1600×1200)
Evenness: > 95%
Lamp Bulb: LED (RGB)
Average Lifespan: 60000 Hours
Scanning Frequency
Horizontal: 15kHz-120kHz
Vertical: 24Hz-120Hz
Input Interface
Analog RGB1: D-sub 15p
Analog RGB2: 5BNC
Digital RGB1: DVI-I
Digital RGB2: HDMI
ETHERNET: RJ45
RS232C: D-Sub 9p
RS422: RJ45
Output Interface
Digital RGB: DVI-D
RS422: RJ45
General
Control: RS232C, RS422
Power Supply: AC 100V–240V, 50/60Hz
Power Consumption: 365W(Bright Mode), 295W(Normal Mode), 265W(Power Save Mode)
Working Temperature: 10 °C-40 °C (Recommended Temperature22 °C±5 °C)
Weight: 100Kg
Working Humidity: 10%-90% (Non-condensing)
