DS-D1067EH

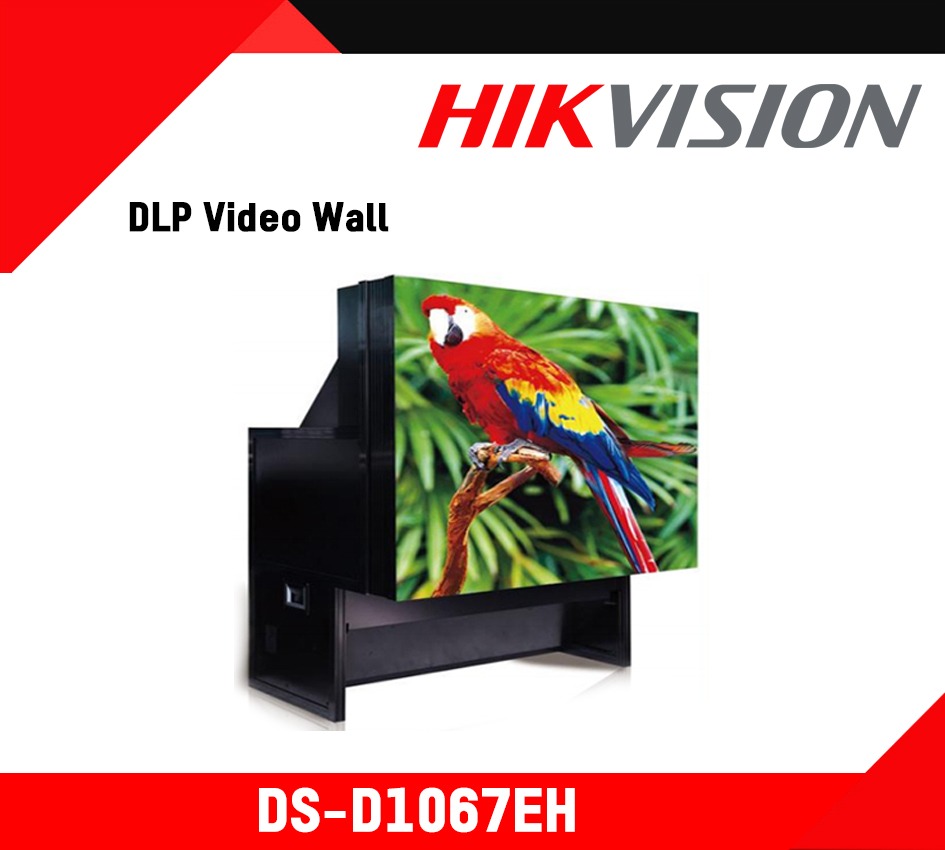

DS-D1067EH Hikvision DLP Video Wall Colombo CCTV Srilanka
DS-D1067EH
Availability: not in Stock

DS-D1067EH

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • Adopting the latest LED cold light source technology, the display unit has an ultra wide color gamut range to provide a better control on the color performance. The degree of color saturation is 140%.
  • Long lifetime as 80000-100000 hours
  • LED fast switching
  • Automatic color and brightness adjustment ensures the evenness of the color and brightness
  • In-built image processor
  • PIP display
  • The video window can roam, scale, and overlap in the video wall as a floating window
  • IP5X for Ingress Protection
  • Solid state components reduce the moving parts wear condition thus improve the steadiness and reliability of the LED mechanism
  • A closed structure design, with multiple air filtering system for dust-proof
  • Solid state LED for green and environmental illumination with no mercury pollution
Categories:

Description

Datasheet : DS-D1067EH

DLP Unit
Display Technology: Display Technology Superior 0.95″ 1-chip DLP, LVDS DMD Chip, 12° Deflection Angle
Physical Resolution: SXGA+(1400×1050)
Dimension: 67″
Width(mm): 1361
Height（mm）: 1021
Depth （mm）: 838
Contrast: 2500:1
Output Brightness: 1200 ANSI(Typical)
Evenness: > 93%
Lamp Bulb: 3*6 LED
Color Temperature: 3200k, 6500k, 9300k
Average Lifespan: 80000-100000 Hours

Scanning Frequency
Horizontal: 15kHz-120kHz
Vertical: 24Hz-120Hz

Input Interface
Analog RGB1: D-Sub 15p
Analog RGB2: 5BNC
Digital RGB1: DVI-I
Digital RGB2: HDMI
ETHERNET: RJ45
RS232C: D-Sub 9p
RS422: RJ45

Output Interface
Digital RGB: DVI-D
RS422: RJ45

General
Control: RS232C, RS422 and IR Remote
Power Supply: AC 100V–240V@50/60Hz
Color: 16.7M; 24-bit True Color
Power Consumption: 283W(Bright Mode),240W(Normal Mode),132W(Power Save Mode)
Working Temperature: -5 °C~40 °C (Recommended Temperature22 °C±5 °C)
Weight: 120kg
Working Humidity: 10%-85% (Non-condensing)
