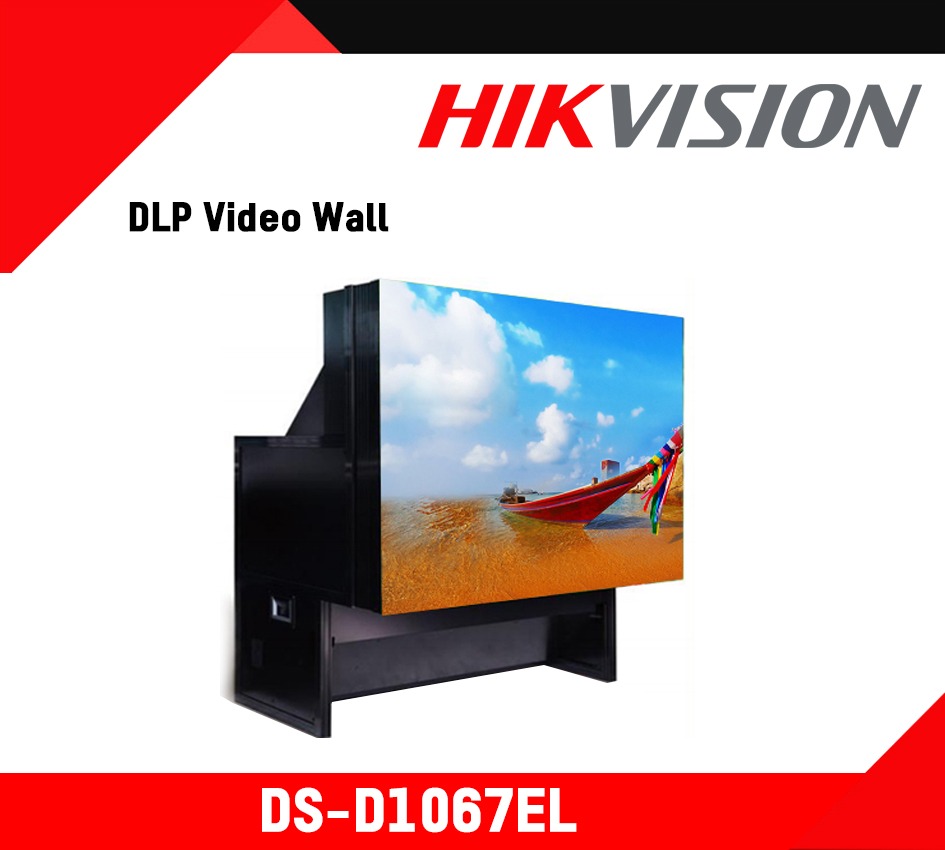

DS-D1067EL
Availability: not in Stock

DS-D1067EL

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

•Adopting the latest LED cold light source technology, the display unit has an ultra wide color gamut range to provide a better control on the color performance. The degree of color saturation is 140%;
•Long lifetime as 60000 hours;
•LED fast switching;
•Automatic color and brightness adjustment ensures the evenness of the color and brightness;
•In-built image processor ;
•PIP display;
•The video window can roam, scale, and overlap in the video wall as a floating window.
•IP5X for Ingress Protection;
•Solid state components reduce the moving parts wear condition thus improve the steadiness and reliability of the LED mechanism;
•A closed structure design, with multiple air filtering system for dust-proof;
•Solid state LED for green and environmental illumination with no mercury pollution;

Description

Datasheet : DS-D1067EL

DLP Unit
Display Technology: Superior 0.7″ 1-chip DLP, LVDS DMD Chip, 12° Deflection Angle
Physical Resolution: XGA+(1024×768)
Dimension: 67″
Width(mm): 1361
Height(mm): 1021
Depth (mm): 838
Contrast: 2000:1 (Typical); 100000:1 (Dynamic)
Output Brightness: 1100 ANSI(Typical)
Working Resolution: UXGA (1600×1200)
Evenness: > 95%
Lamp Bulb: LED (RGB)
Average Lifespan: 60000 Hours
Scanning Frequency
Horizontal: 15kHz-120kHz
Vertical: 24Hz-120Hz
Input Interface
Analog RGB1: D-sub 15p
Analog RGB2: 5BNC
Digital RGB1: DVI-I
Digital RGB2: HDMI
ETHERNET: RJ45
RS232C: D-Sub 9p
RS422: RJ45
Output Interface
Digital RGB: DVI-D
RS422: RJ45
General
Control: RS232C, RS422
Power Supply: AC 100V–240V, 50/60Hz
Power Consumption: 365W(Bright Mode), 295W(Normal Mode), 265W(Power Save Mode)
Working Temperature: 10 °C-40 °C (Recommended Temperature22 °C±5 °C)
Weight: 120Kg
Working Humidity: 10%-90% (Non-condensing)
