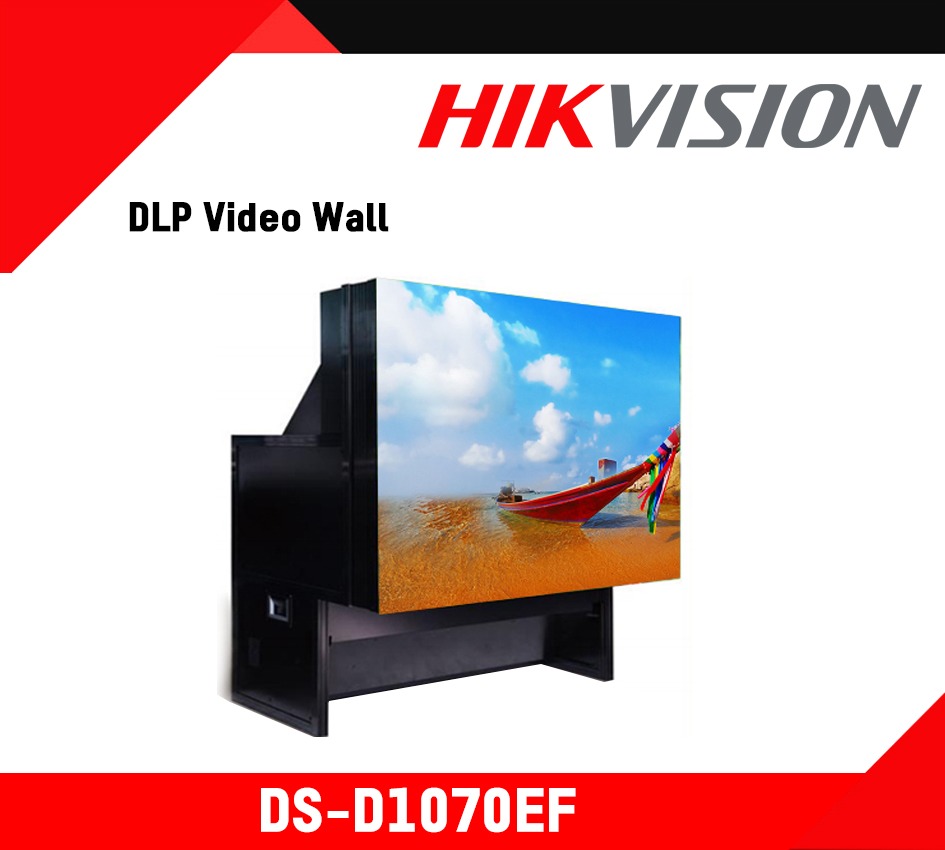

DS-D1070EF Hikvision DLP Video Wall Colombocctv.com Srilanka
DS-D1070EF
Availability: not in Stock

DS-D1070EF

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • Adopting the latest LED cold light source technology, the display unit has an ultra wide color gamut range to provide a better control on the color performance. The degree of color saturation is 140%.
  • Long lifetime as 120000 hours
  • LED fast switching
  • Automatic color and brightness adjustment ensures the evenness of the color and brightness.
  • In-built image processor
  • PIP display
  • The video window can roam, scale, and overlap in the video wall as a floating window.
  • IP5X for Ingress Protection
  • Solid state components reduce the moving parts wear condition thus improve the steadiness and reliability of the LED mechanism
  • A closed structure design, with multiple air filtering system for dust-proof
  • Solid state LED for green and environmental illumination with no mercury pollution
Category:

Description

Data sheet : DS-D1070EF

Screen
Display Technology : Superior 0.95″ 1-chip DLP, LVDS DMD Chip, 12° Deflection Angle
Physical Resolution : 1080P
Dimension : 70”
Width(mm) : 1550.2
Height(mm) : 872
Output Brightness : 1200 ANSI(Typical)
Contrast : [2500:1]
Evenness : > 95%
Lamp Bulb : 3*6 LED
Color Temperature : 3200k, 6500k, 7500k, 9300k
Average Lifespan : 120000 Hours
Scanning Frequency : Horizontal: 15kHz-120kHz Vertical: 24Hz-120Hz
Input Interface
Analog RGB : 1 D-Sub 15p
Analog RGB : 2 5BNC
Digital RGB : 1 DVI-I
Digital RGB : 1 DVI-I
Digital RGB : 2 HDMI
ETHERNET : RJ45
RS232 : C D-Sub 9p
RS422 : RJ45
Output Interface
Digital RGB : DVI-D
RS422 : RJ45
Control : RS232C, RS422 and Ethernet
power Supply : AC 100V–240V@50/60Hz
Power Consumption : 365W(Bright Mode),295W(Normal Mode),265W(Power Save Mode)
Working Temperature : -5 °C~40 °C (Recommended Temperature22 °C± 5 °C)
Working Humidity : 10%-85% (Non-condensing)
