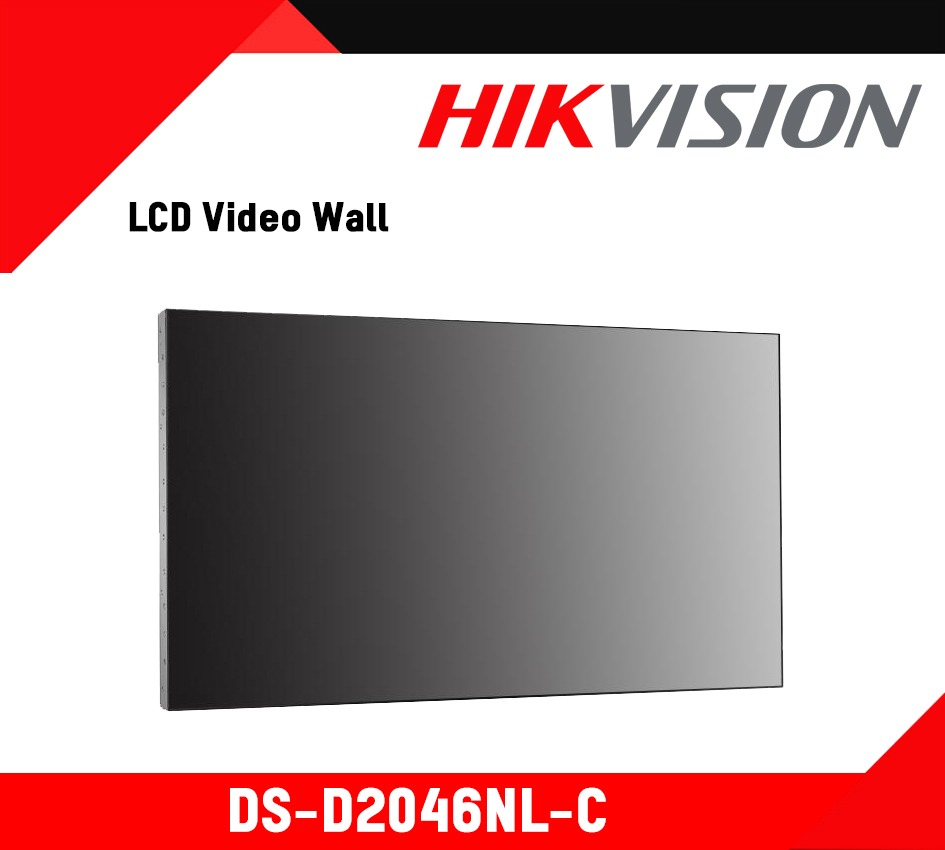

DS-D2046NL-C - Hikvision LCD Video Wall Colombo CCTV Srilanka
DS-D2046NL-C
Availability: not in Stock

DS-D2046NL-C

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • Direct-lit LED backlight with uniform brightness and no boundary shadows
  • 1920 × 1080 resolution, 178° viewing angle
  • Ultra-narrow 3.5 mm bezel design
  • Factory calibration for color uniformity
  • Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
  • Stable and 24-hour continuous working
  • Metal casing for preventing from radiation and magnetic & electric field interference
  • Wall-mount and modular brackets available to meet various installation requirements
Category:

Description

Datasheet : DS-D2046NL-C

Operation Manual : DS-D2046NL-C

Command and Interface File : DS-D2046NL-C

Communication Matrix : DS-D2046NL-C

Product Model
Product Model DS-D2046NL-C
Display
Screen Size 46 inch
Active Display Area 1018.08 (H) mm × 572.67 (V) mm
Backlight Direct-lit LED backlight
Pixel Pitch 0.53 mm
Physical Seam 3.5 mm
Bezel Width 2.3 mm (top/left), 1.2 mm (bottom/right)
Resolution 1920 × 1080@60 Hz (downward compatible)
Brightness 500 cd/m²
Viewing Angle Horizontal 178°, vertical 178°
Color Depth 8 bit, 16.7 M
Contrast Ratio 3500:1
Response Time 8 ms (G to G)
Color Gamut 72% NTSC
Surface Treatment Haze 25%, 2H
Interface
Video & Audio Input HDMI × 1, DVI × 1, VGA × 1, CVBS × 1, USB × 1
Video & Audio Output DVI × 1, VGA × 1, CVBS × 1
Control Interface RS232 IN × 1, RS232 OUT × 1
Power
Power Supply 100-240 VAC, 50/60 Hz
Power Consumption ≤ 111 W
Standby Consumption ≤ 0.5 W
Power Mode MLT188T
Working Environment
Working Temperature 0°C to 40°C (32°F to 104°F)
Working Humidity 20% to 90% RH (non-condensing)
Storage Temperature -20°C to 65°C (-4°F to 149°F)
Storage Humidity 5% to 90% RH (non-condensing)
General
Casing Material SECC
Mounting Hole Pitch 600 (H) mm × 400 (V) mm
Product Dimension (W × H × D) 1021.98 mm × 576.57 mm × 72.2 mm (40.24” × 22.7” × 2.84”)
Package Dimension (W × H × D) Carton with two displays: 1214 mm × 783 mm × 414 mm (47.8” × 30.83” × 16.3”) Carton with a single display: 1214 mm × 783 mm × 414 mm (47.8” × 30.83” × 16.3”)
Net Weight 18.96 ± 0.5 Kg (41.80 ± 1.1 lb) for single display
Gross Weight Carton with two displays: 47.12 ± 0.5 Kg (103.88 ± 1.1 lb) Carton with a single display: 25.79 ± 0.5 Kg (56.86 ± 1.1 lb)
Packing List LCD display × 1, power cable × 1, network cable × 1, screw × 4, installation instruction × 1, remote control × 1, IR receiver × 1, CD-ROM × 1, RS-232 converter × 1
