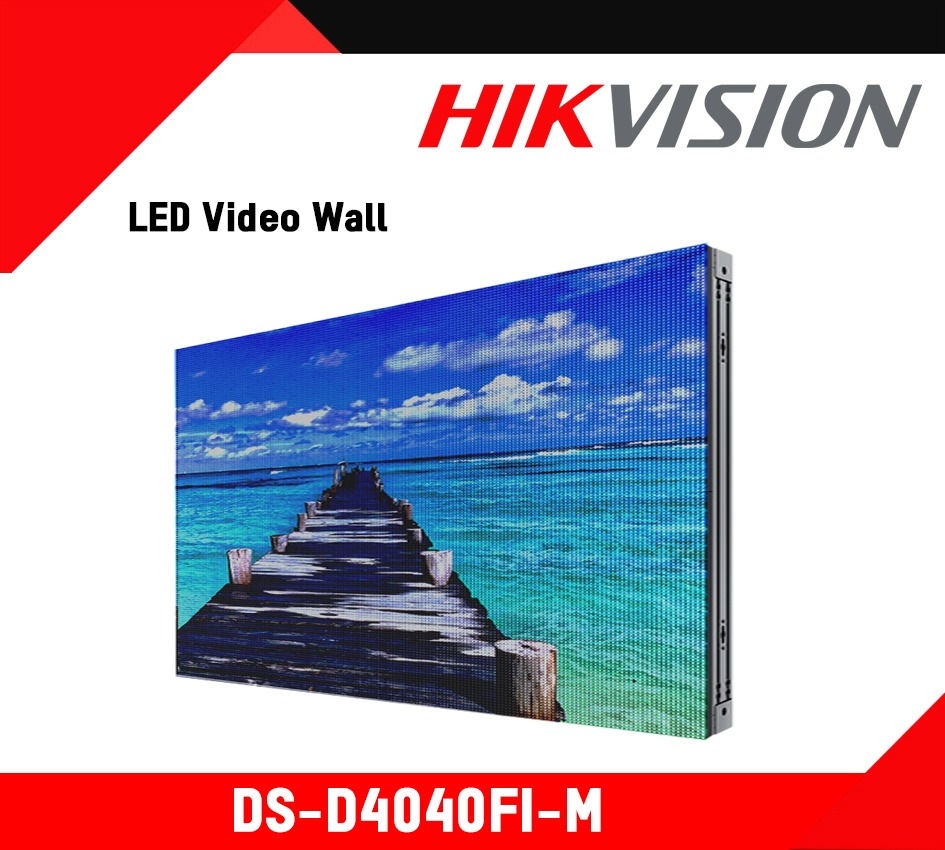

DS-D4040FI-M

DS-D4040FI-M

Key Features

For video wall composition with superior luminance uniformity and black mura prevention
High brightness provides vivid images in a range of lighting conditions
Superior contrast ratio
Broadcast grey processing gives more image details
Superior brightness and color uniformity maintains smooth and complete image quality
Ultra high refresh rate
Nanosecond response time
Long service life
Wide viewing angle (120°)
High aperture ratio and wide color gamut coverage (NTSC)
Low heating and superior cooling system ensures high reliability and environmental protection

Description

LED Module
Module type:	Surface mounted trinity LED ( SMD2121)
Pixel pitch:	4 mm
Resolution (W × H):	64 × 32
Pixel density:	62,500 pitch/ m2
Optical
Brightness (nits):	800
Color temperature:	3200 to 9300 adjustable
Viewing angle:	Horizontal 120°, vertical 120°
Recommended viewing distance:	≥ 4 m
Brightness uniformity:	≥ 97%
Color uniformity:	≤ ± 0.003 Cx, Cy
Contrast:	≥3000 : 1
Electrical
Max. consumption (W/m2):	800
Average consumption (W/m2):	500
Power supply:	100 to 240 VAC ± 15%
Processing Performance
Driving mode:	Constant current driving
Frame frequency:	60 Hz
Refresh rate:	1,000 Hz
Processing depth (bit):	16
Grey level (bit):	65,536
Color:	>16.7 M
Brighness control:	Auto/Manual , 256 levels adjustable
General
Working hours:	≥ 100,000 h
MTBF:	≥ 10,000 h
Continuous working hours:	≥ 48 h
Working temperature:	-20 to 50 º C (-4 to 122 º F)
Storage temperature:	-40 to 60 º C (-40 to 140 º F)
Working humidity:	10 to 95 % (non-condensing)
Storage humidity:	10 to 95% (non-condensing)
Power:	≤ 15 W
Dimensions (W × H × D):	256 × 128 × 16.1 mm (10.1 × 5.0 × 0.6 inch)
Weight:	≤ 9.75 kg (21.5 lb)
