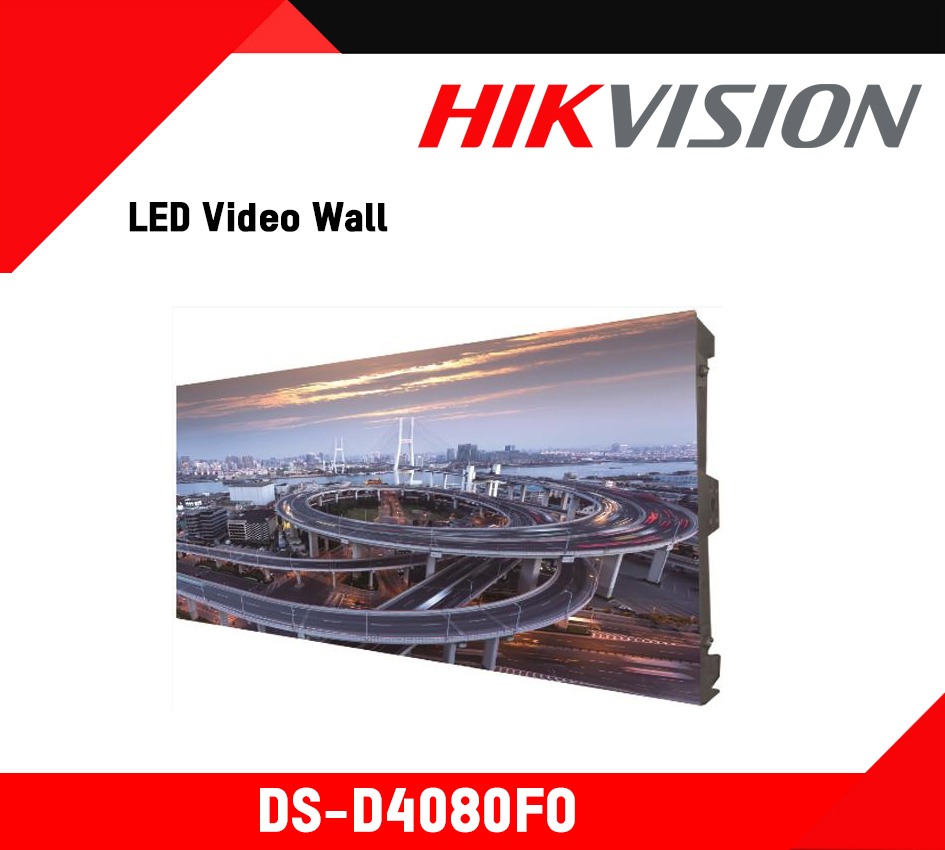

DS-D4080FO Hikvision LED Video Wall Colombocctv.com Srilanka
DS-D4080FO
Availability: not in Stock

DS-D4080FO

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • Support any direction, any size, any shape stitching; High screen uniformity, no black lines, truly seamless stitching;
  • Dual redundant power supply;
  • Dual signal hot backup;
  • High brightness
  • High contrast
  • Controlled brightness &color temperature range of each pixel on the screen, to achieve integrity and perfection of picture display;
  • Ultra-high refresh rate makes the  video picture more exquisite and smooth and achieve more realistic color reproduction
  • Nanosecond response time, eliminating ghosting phenomenon
  • Long screen service life;
  • Ultra-wide viewing angle, ensuring high-quality display at various angles;
  • High color gamut coverage, wider than the NTSC color gamut;
  • Low Heat generating, high-performance radiating heat, super-quiet;
  • Energy saving;
  • Defect rate is very low, low post-maintenance cost

Description

Datasheet : DS-D4080FO

Module Composition
Pixel Package: SMD3535
Pixel structure: 1R1G1B
Pixel pitch (mm): 8.0(mm)
Pixel Density: 15625 points /㎡
Module Resolution (W × H): 40(W)x40(H)
Module Dimension (W × H): 320(W)x 320(H)
Unit Composition
Unit module composition (W × H): 3(W)x3(H)
Unit Resolution (W × H): 120(W)x 120(H)
Unit area: 0.9216㎡
Unit Dimension: 960(W)x960(H)x90(D)
Weight: 48kg/㎡
Weatherproof level: IP65
Optical Parameters
Brightness(nits): ≥5500(cd/m2)
Color Temperature: 6500-8000k
Brightness Uniformity: ≥95%
Viewing Angle: 120 ( Horizontal), 120 ( Vertical)
Best Viewing Distance: ≥8m
Brightness uniformity: <1/10,000
Blind Spot Rate: <1/10,000
Electrical parameters
Peak Consumption: 580 W/㎡
Average Consumption: 195 W/㎡
Processing Performance
Drive Mode: 1/10 Constant Current Driving
Frame Rate: ≥60 fps/s
Refresh Rate: ≥1200Hz
Grey level: Red, Green, Blue, each 12-16bit
Color display: 16.7Million
General
Service life(H): >100,000 (H)
Temperature(℃): -20—50 ℃ ( Working)
Humidity(RH): 10-90%(Non-condensing)
