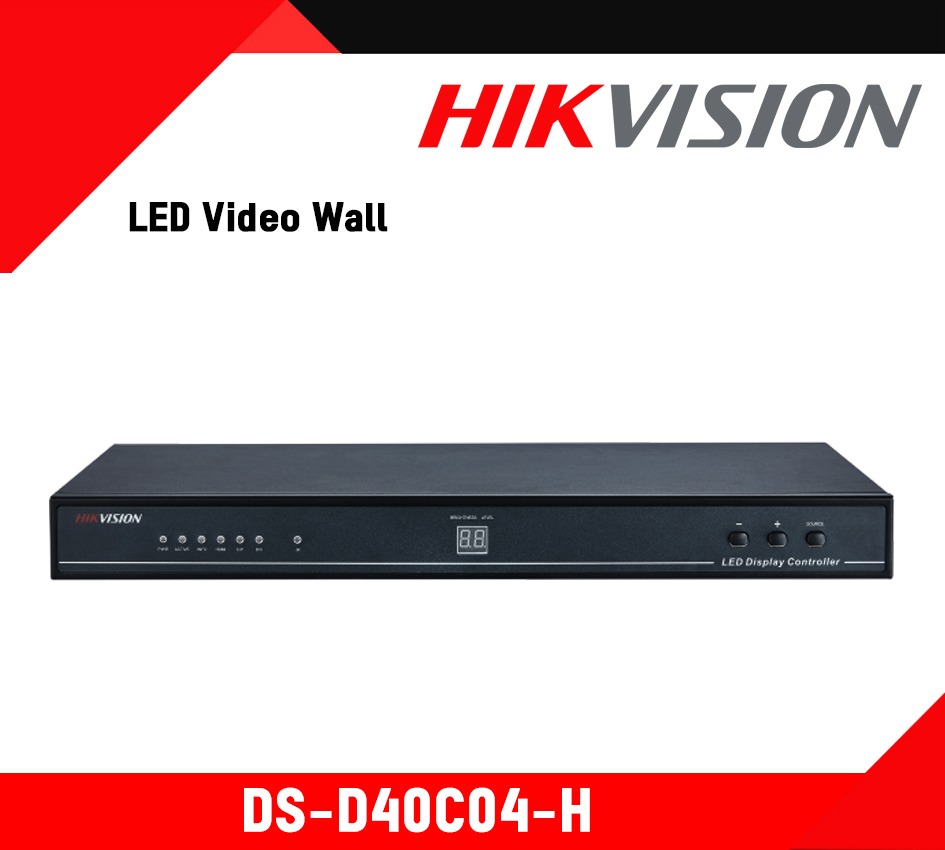

DS-D40C04-H

Key Features

• Four Gigabit Ethernet output ports, each with 650 thousand pixels load at most
• Multi-controller cascade display, multicast control to realize synchronization
• Super long subtitle display, and left-justifying and right-justifying, centering and scroll display
• Automatic dehumidification to protect damp led, and four humidity modes suit the areas of different humidity
• Quick and convenient operation by remote client software
• Obtains IP address on random network segment to make sure no conflicts among IPs and network security

Description

Description

Datasheet : DS-D40C04-H

Interfaces
Signal input:	1-ch DVI, 1-ch HDMI, 1-ch DP, 1-ch VGA
Signal output:	4ch ports output, 1ch DVI output
Signal control:	Network
Processing Performance
Max. resolution:	2048 x 1152@60Hz or 1920 x 1200@60Hz
Frame frequency:	60 Hz
Refresh rate:	3840 Hz
Processing depth:	16 bits
Grey level:	65535 bits
Color:	281.4 trillion
Brightness control:	Automatic/manual
General
Dimensions:	482.6 x 250 x 44.5 mm (19 x 9.8 x 1.8 inch)
Power supply:	110 to 240VAC ± 15%
Average power dissipation:	≤ 20W
Working temperature:	-10 to 45 º C (14 to 113 º F)
Storage temperature:	-20 to 60 º C (-4 to 140 º F)
Working humidity:	10 to 90%
Storage humidity:	10 to 90%
