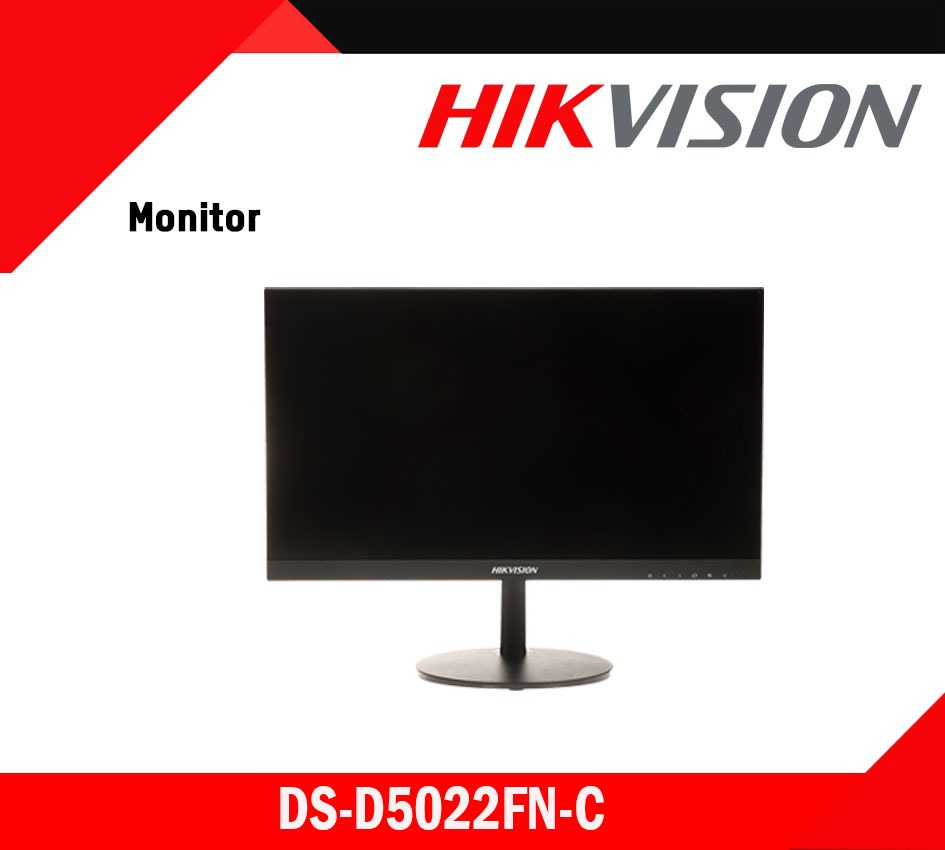

DS-D5022FN-C Hikvision Monitor Colombocctv.com Sri Lanka
DS-D5022FN-C
Availability: not in Stock

DS-D5022FN-C

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 21.5 inch FHD Borderless Monitor
  • Ultra-thin device body with ultra-thin border for 3 sides.
  • 2 channels of 8 bit/10 bit LVDS HD (1920 × 1080) display.
  • 178° ultra-wide view screen.
  • 3D noise reduction.
  • Low blue light design for eye care.
  • Dual interface of HDMI and VGA.
  • Support VESA wall mount.

Description

Datasheet: DS-D5022FN-C

Display

  • Screen Size: 21.5 inch
  • Active Display Area: 478.656 (H) mm × 260.28 (V) mm
  • Resolution: 1920 × 1080
  • Backlight: E-LED
  • Pixel Pitch: 0.0831 (H) mm × 0.241 (V) mm
  • Brightness: 250 cd/m²
  • Viewing Angle: 178°(H)/178°(V)
  • Color Depth: 8 bit
  • Contrast Ratio: 3000:1
  • Response Time: 6.5 ms
  • Refresh Rate: 60 Hz
  • Haze: 25%
  • Reliability: 7 × 24 h
  • Color Gamut: 72% NTSC

Interface

  • Video & Audio Input: HDMI 1.4 × 1, VGA × 1

Power

  • Power Supply: 100 to 240 VAC, 50/60 Hz
  • Power Consumption: ≤ 22 W
  • Standby Consumption: ≤ 0.5 W

Working Environment

  • Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity: 20% to 90% RH (without condensation)
  • Storage Temperature: –20 ℃ to 60 ℃ (–4 ℉ to 140 ℉)
  • Storage Humidity: 10% to 90% RH (without condensation)

General

  • Casing Material: Plastic
  • VESA: 75 mm × 75mm,4-M6 × 6 screw holes
  • Bezel Width: Top: 1.88 mm, bottom: 19 mm, left: 1.88 mm, right: 1.88 mm
  • Product Dimensions (W × H × D):
    • With base: 492.356 (W) mm × 390.11 (H) mm × 200.20 (D) mm (19.38” ×15.36” × 7.88”)
    • Without base: 492.356 (W) mm × 289.680 (H) mm × 43.88 (D) mm (19.38” × 11.40” × 1.73”)
  • Package Dimensions (W × H × D): 647 (W) mm × 111 (H) mm × 406 (D) mm (25.49 ” × 4.37 ” × 15.99 ”)
  • Net Weight: 2.6 ± 0.5 kg (5.7 ± 1.1 lb.)
  • Gross Weight: 4.0 ± 0.5 kg (8.8 ± 1.1 lb.)
  • Packing List: Monitor ×1, AC power cable × 1, base bracket × 1, user manual × 1, quick start guide × 1, HDMI cable × 1
