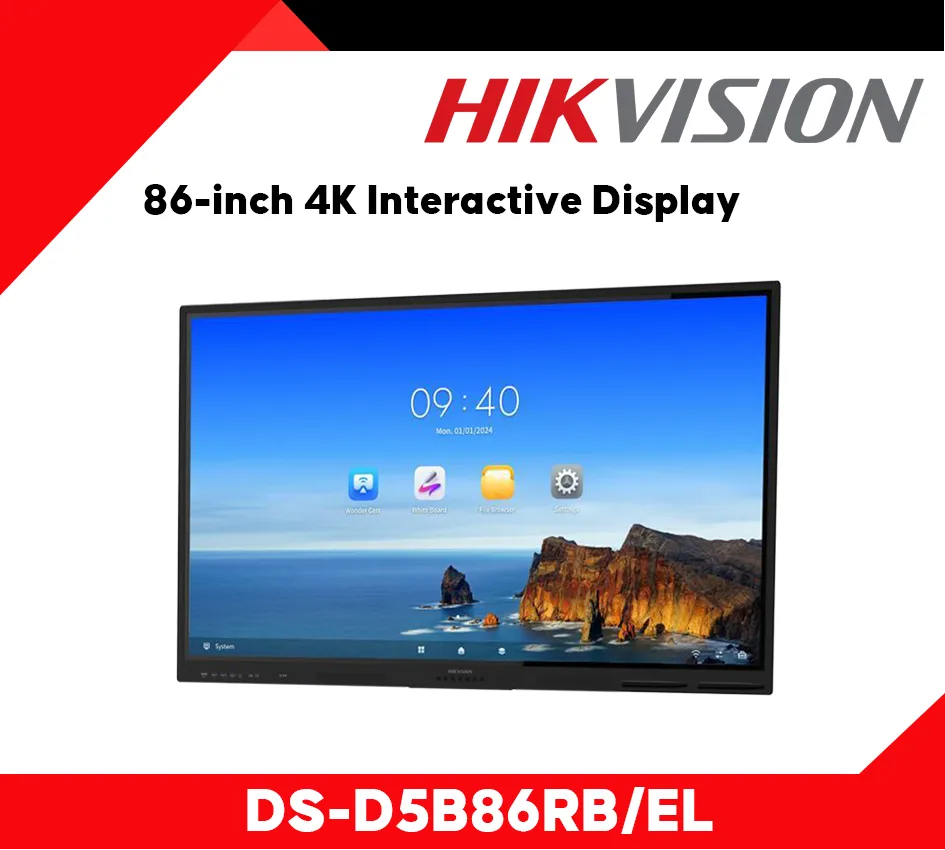

Description
Datasheet: DS-D5B86RB/EL
User Manual: DS-D5B86RB/EL
Display
- Screen Size: 86 inch
- Backlight: DLED
- Pixel Pitch: 0.165 (H) × 0.494 (V) mm
- Resolution: 3840 × 2160 @60 Hz
- Brightness: 400 cd/m² (Typ.)
- Color Depth: 10 bit
- Display Color: 1.07G
- Response Time: 5ms
- Panel Type: VA
- Contrast Ratio
- 5000:1 (Static)
- 30,000:1 (Dynamic)
- Color Gamut: 72% NTSC (CIE1931) (Typ.)
- Refresh Rate: 60 Hz
- Viewing Angle: 178°(H)/178°(V)
- Aspect Ratio: 16:9
- Surface Haze: 25% Haze
- Display Area: 1895.04 mm × 1065.96 mm
- Working Duration: 7 × 16H
- Surface Hardness
- 9H (Pencil)
- 7 (Mohs)
- Surface Glass: 3.2 mm Anti-Glare Glass
- Transmittance: 88% ± 3
- Lifespan: 50,000 hours
Touch
- Type: Infrared Touch Screen
- Touch Point: 40-point multi-touch
- Touch Response Time: < 5 ms
- Minimum Touch Object: ≥ 2 mm (≥ 90% touching area)
- Touch Precision: ± 1 mm (≥ 90% touching area)
- Touch Resolution: 32767 × 32767
Built-in System
- Operation System: Android 13.0
- Memory: 8 GB
- Built-in Storage: 64 GB
- CPU: Cortex-A55 × 4 (1.92GHz)
- HDCP Version: Support 1.4/2.2/2.3
- GPU: Mali-G52 MP2 (2EE)
Internal Function
- Loudspeaker: Built-in 2 × 20 W
- Speaker Frequency: 200-20Khz
- Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2
- NFC: Support card reader
- Light Sensor: Yes
Interface
- Video & Audio Input: HDMI In (HDMI 2.0) × 2, Audio In × 1
- Video & Audio Output: Audio Out × 1
- Control Interface: TOUCH-USB 2.0 × 1, RS232 × 1
- Network Interface
- LAN (100 Mbps) × 2
- WIFI AP&Station,2.4G/5G
- WIFI AP:IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- WIFI Station:IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission Interface: USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 (Type-C supports USB 2.0)
Power
- Power Supply: 100 to 240 VAC, 50/60 Hz
- Standby Consumption: ≤ 0.5 W
- Max. Consumption: 326 W
- Average Consumption: 268 W
Working Environment
- Working Temperature: 0 °C to 40 °C (32 °F to 104°F)
- Working Humidity: 10%~90% RH
General
- Product Dimensions: 1960.44 mm × 1164.69 mm × 82.5 mm
- Package Dimensions (W × H × D): 2157 mm × 1345 mm × 223 mm
- VESA: 800 mm × 600 mm (4 × M8-25 mm)
- Net Weight: 59.71 kg
- Gross Weight: 79.0 kg
- Accessary: Wall mount bracket, hook, user manual, stylus × 2, packing list, 1.5 m power cable (European standard), remote controller
