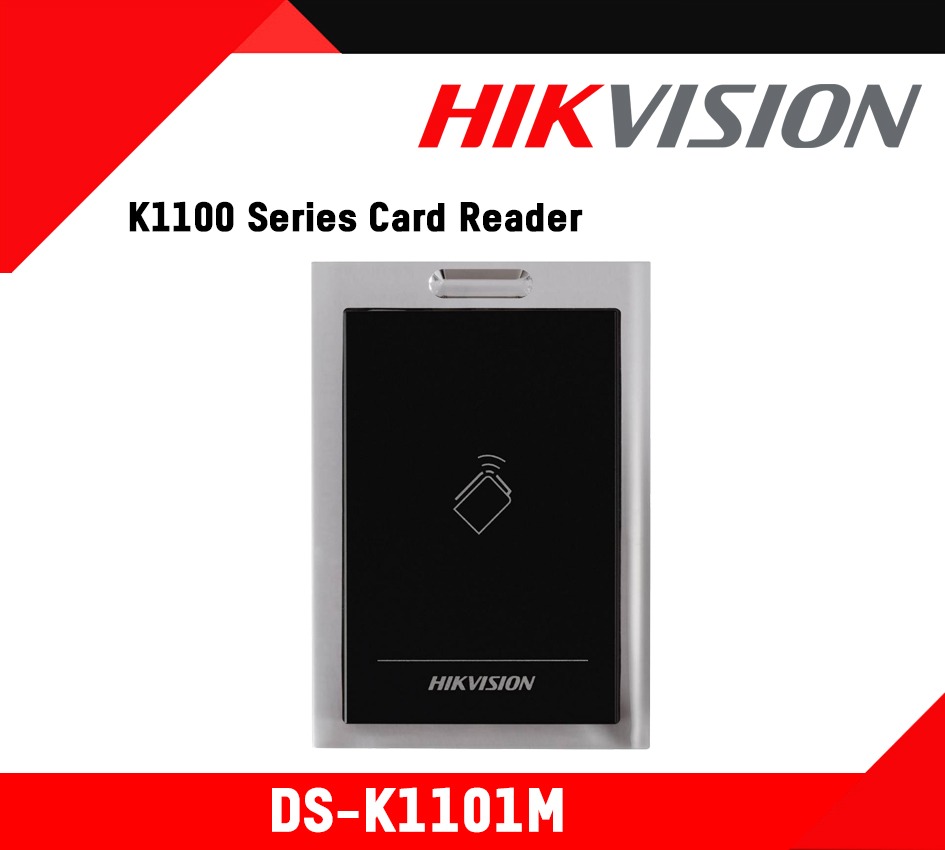

DS-K1101M Hikvision K1100 Series Card Reader Colombocctv.com Srilanka
DS-K1101M
Availability: not in Stock

DS-K1101M

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • PC+ABS material shell with PMMA panel design
  • Equipped with the 32-bit high-speed processor
  • Built-in audible beeper
  • Display the reader status with LED indicator
  • DIP switch
  • RS485 and Wiegand(W26/W34) protocol
  • Tamper-proof alarm
  • Online upgrade function(under the 485 communication mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
  • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
  • Dust-proof and water-proof design
  • Read Mifare card and obtain the card No.
Categories:

Description

Datasheet of DS-K1101M/MK

User manual of DS-K1101M/MK

System Parameters
Card Reading Frequency: 13.56MHz
Card Reading Distance: 30 to 50mm (1.18 to 1.96″)
ID Settings: Setting by the DIP Switch on the Main Board
Processor: 32-bit
General
Working Current: ≤500mA
Key Board: No Keypad ( DS-K1101M )
Keypad with 12 Keys (0 to 9, *, #) ( DS-K1101MK)
Audio Alert: Beeper
Power Supply: 12VDC
Power Consumption: ≤2W
LED Indicator: Power Indicator; Status LED Indicator
Protection Level: IP 64
Installation: Applied for 120 Gang Box Only
Certification: CE, FCC
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 132.0mm × 92.3mm × 20.5mm (5.20” × 3.63” × 0.81″)
Weight: ≤ 0.14Kg
