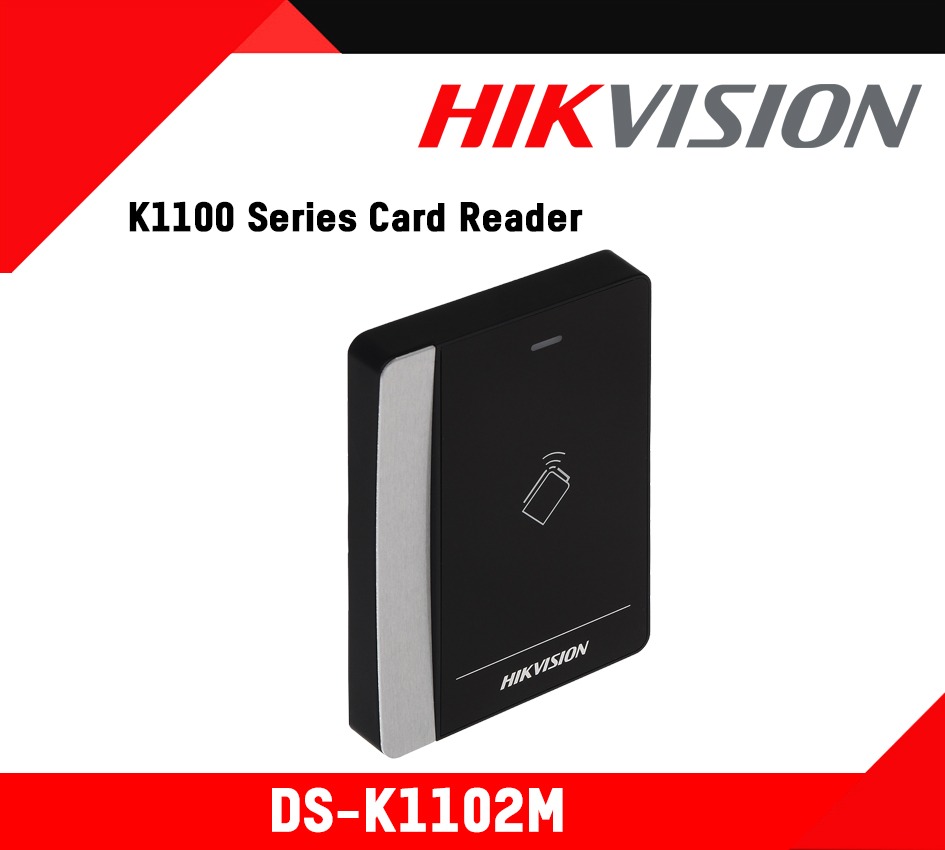

DS-K1102M - Hikvision K1100 Series Card Reader Colombo CCTV Srilanka
DS-K1102M
Availability: not in Stock

DS-K1102M

logo-2
Key Features

  • PC+ABS material shell with PMMA panel design and alloy decoration
  • Equipped with the 32-bit high-speed processor
  • Built-in audible beeper
  • Display the reader status with LED indicator
  • DIP switch
  • RS485 and Wiegand (W26/ W34) protocol
  • Tamper-proof alarm
  • Online upgrade function (under the 485 communication mode). Card reader can degrade to pre-upgrade status in case of upgrading failed
  • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
  • Dust-proof and water-proof design
  • Build-in EM card reading module (Frequency:125KHz). Supports reading EM card No. (DS-K1102E/DS-K1102EK)
  • Build-in Mifare card reading module (Frequency: 13.56MHz). Meets the standard of ISO 14443-A.
  • Supports reading Mifare card No (DS-K1102M/DS-K1102MK)

Description

Datasheet : DS-K1102M

User Manual : DS-K1102M

Specification

General

  • Power Supply: 12V DC
  • Working Temperature: -20°C to +65°C (-4°F to +149°F)
  • Working Humidity: 10% to 90% (Non Condensing)
  • Working Current: ≤500mA
  • Reading Frequency: 125KHz
  • Reading Range: ≤50mm (≤1.97″)
  • ID Settings: via DIP Switch
  • Audio Alert: Beeper
  • Power Consumption: ≤2W
  • Keypad: No Keypad (DS-K1102E/M)Keypad with 12 Keys (0 to 9, *, #) (DS-K1102EK/MK)
  • Certifications: FCC, CE
  • LED Indicator: Power Indicator; Status LED Indicator
  • Protection Level: IP 64
  • Dimensions: 121mm × 86.5mm × 14mm (4.76” × 3.41” × 0.55″)
  • Weight: ≤0.14Kg
  • Installing Method: Applied for 86 & 120 Gang Box

System Parameters

  • Processor: 32-bit
