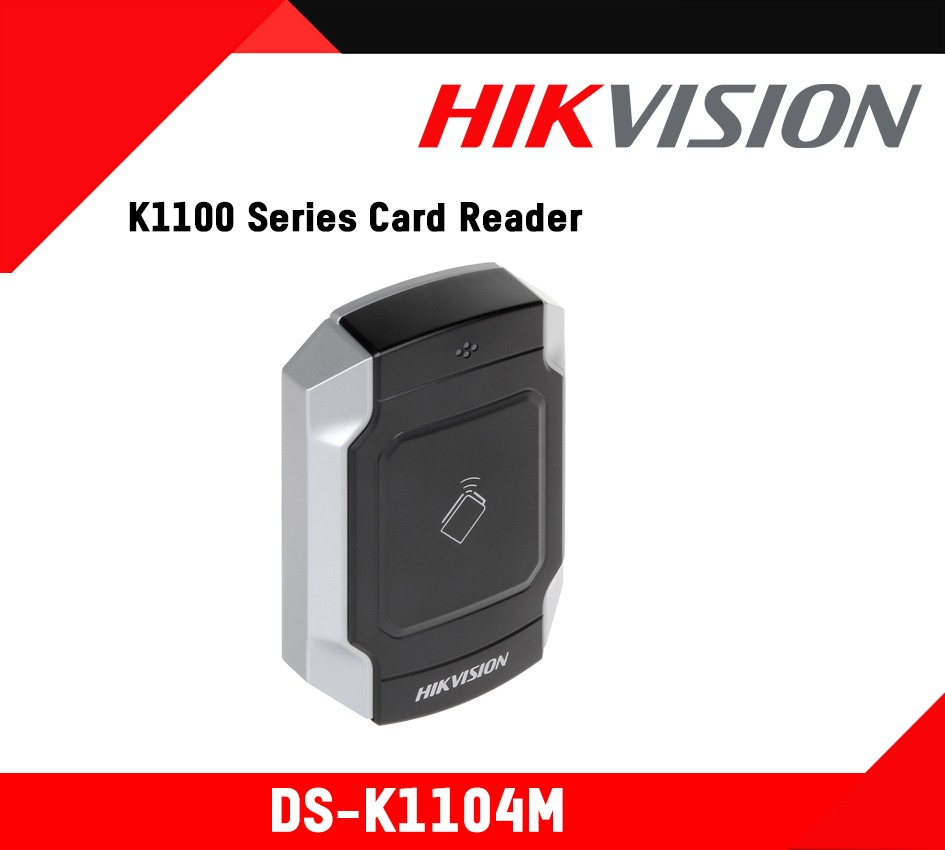

DS-K1104M Hikvision K1100 Series Card Reader Colombocctv.com Srilanka
DS-K1104M
Availability: not in Stock

DS-K1104M

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • PC + zinc-alloy material shell (material protection level is IK 10)
  • Equipped with the 32-bit high-speed processor
  • Built-in audible beeper
  • Display the reader status with LED indicator
  • DIP switch
  • RS485 and Wiegand(W26/W34) protocol
  • Tamper-proof alarm
  • Online upgrade function (under the 485 communication mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
  • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
  • Dust-proof and water-proof design
  • Read Mifare card and obtain the card No.
Categories:

Description

User manual of DS-K1104M

Datasheet of DS-K1104M

System Parameters
Card Reading Frequency: 13.56MHz
Card Reading Distance: ≤50mm (≤1.97″)
ID Settings: Setting by the DIP Switch on the Main Board
Processor: 32-bit
General
Working Current: ≤500mA
Key Board: No Keypad (DS-K1104M)
Keypad with 12 Keys (0 to 9, *, #) (DS-K1104MK)
Audio Alert: Beeper
Power Supply: 12VDC
Power Consumption: ≤2W
LED Indicator: Power Indicator; Status LED Indicator
Protection Level: IP 65 Water-Proof
Installation: Applied for 86 & 120 Gang Box
Certification: CE, FCC
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 118mm × 76mm × 23mm (4.65” × 2.99” × 0.91″)
Weight: ≤ 0.52Kg
