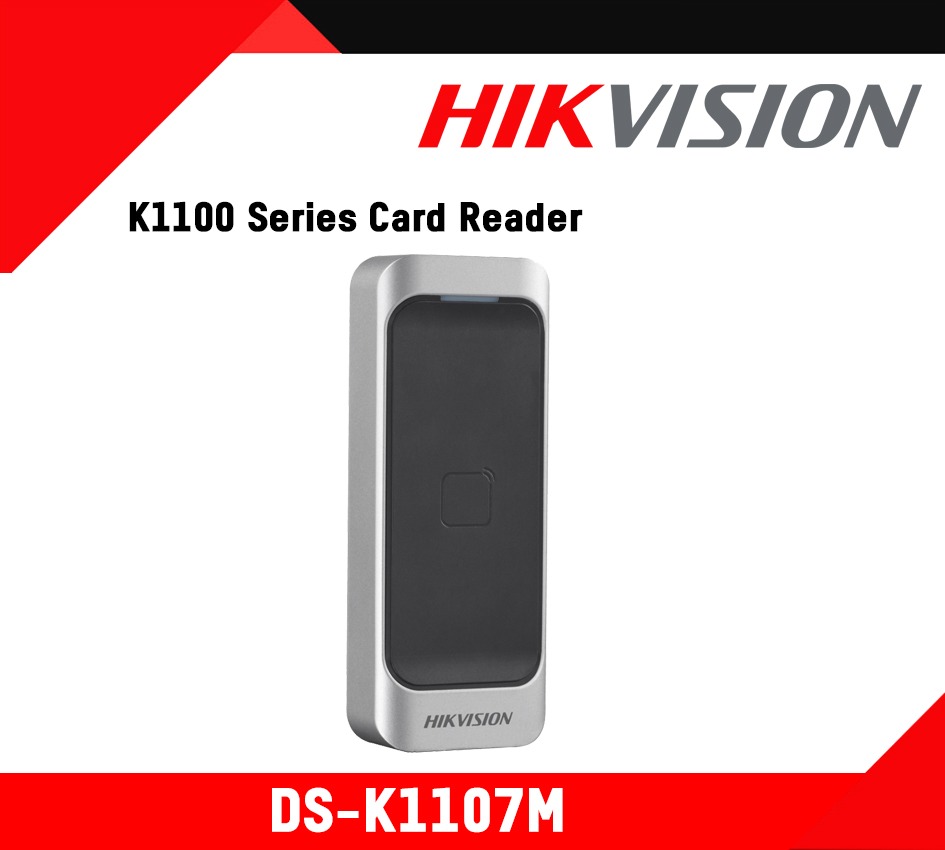

DS-K1107M
DS-K1107M
Availability: not in Stock

DS-K1107M

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • Pro 1107 Series Card Reader
  • Mifare1/ EM card reader
  • Built-in audible beeper
  • RS-485, Wiegand (W26/W34) protocol, and OSDP protocol
  • IP65

Description


Datasheet: DS-K1107M


User Manual: DS-K1107M

General
  • Power Supply: 12V DC
  • Working Temperature: -20°C to +65°C (-4°F to 149°F)
  • Working Humidity: 10% to 90% (Non Condensing)
  • Reading Range: ≤50mm (≤1.97″)
  • Communication Interface: RS485/Wiegand (Set via DIP Switch)
  • ID Settings: via DIP Switch
  • Audio Alert: Beeper
  • Power Consumption: ≤2W
  • Keypad: No Keypad (DS-K1107E and DS-K1107M)Keypad with 12 Keys (0~9, *, #) (DS-K1107EK and DS-K1107MK)
  • LED Indicator: Power Indicator, Status Indicator
  • Protection Level: IP65
  • Tamper-Proof: Supports
  • Dimensions: 115mm × 44mm × 22mm (4.53” × 1.73” × 0.87”)
  • Installing Method: Wall Mounting with Screws; Do Not Support Gang Box
System Parameters
  • Processor: 32-bit
