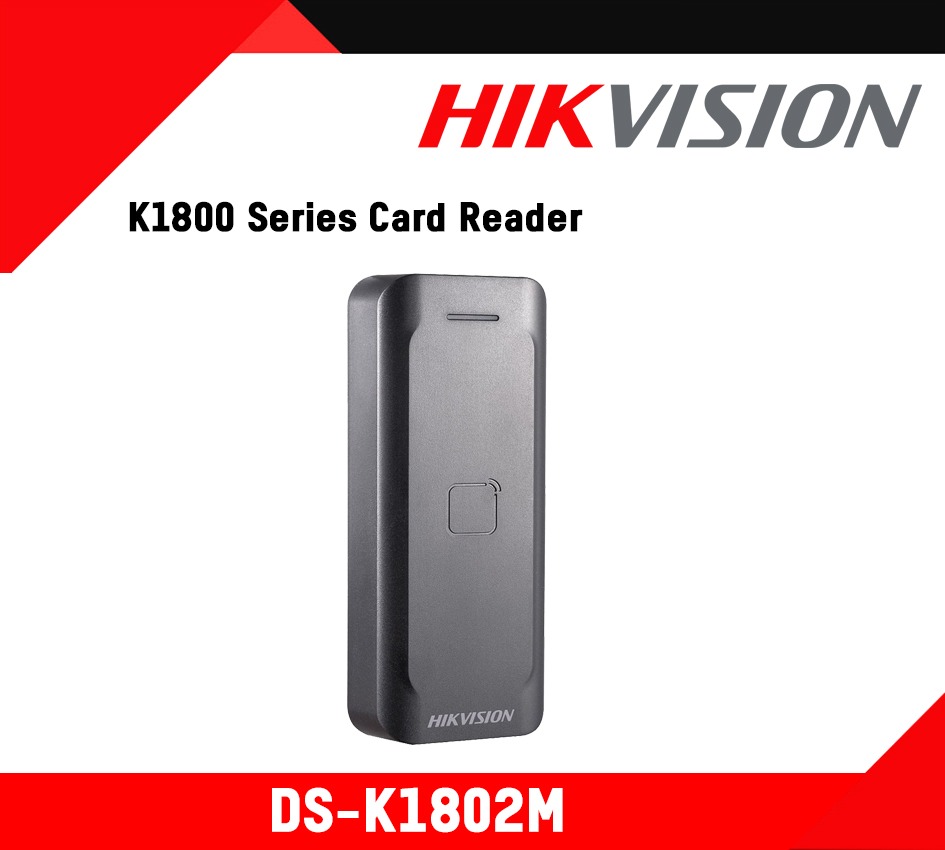

DS-K1802M - Hikvision K1800 Series Card Reader Colombo CCTV Srilanka
DS-K1802M
Availability: not in Stock

DS-K1802M

logo-2

Key Features

  • Meets the standard of ISO 11784/11785 and the card reading frequency is 125KHz. The number of ID card can be read (DS-K1802E and DS-K1802EK)
  • Meets the standard of ISO 14443-A and the card reading frequency is 13.56MHz. The number and content of MIFARE card can be read (DS-K1802M and DS-K1802MK)
  • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
  • Wiegand(w26, w34) protocol
  • Built-in buzzer for identifying the reading status
  • IP65 Standard
Categories:

Description

Datasheet: DS-K1802M

User Manual: DS-K1802M

System Parameters
Card Reading Frequency: 13.56MHz
Card Type: M1 Card
Processor: 32-bit
Device Interfaces
Reading Range: ≤50mm (≤1.97″)
General
Radio Frequency Standard: ISO 14443-A
Key Board: N/A
Audio Alert: Beeper
Power Supply: 12VDC
Power Consumption: ≤2W
LED Indicator: Power Indicator, Status Indicator
Protection Level: IP 65 Water-Proof
Installation: Wall Mounting with Screws; Do Not Support Gang Box
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 115.9mm × 43.3mm × 17mm (4.56″×1.70″×0.67″)
