Description

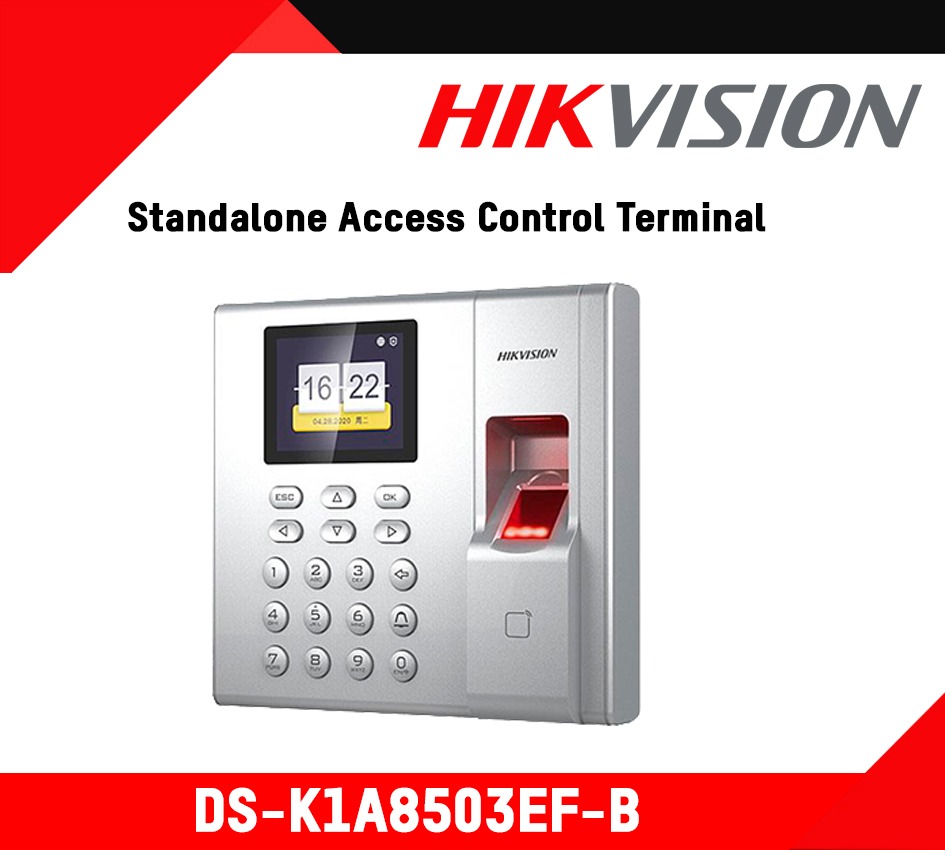

Datasheet: DS-K1A8503EF-B
User Manual: DS-K1A8503EF-B
System
- Operation System: Linux
Display
- Size: 2.4-inch
- Type: LCD-TFT display screen
Audio
- Audio Output: 1 loudspeaker, 1 buzzer
Network
- Wired Network: TCP/IP, 10/100Mbps, self-adaptive
Interface
- Network Interface: 1
- USB: 1
Capacity
- Card Capacity: 1000
- Fingerprint Capacity: 1000
- Event Capacity: 100,000
Authentication
- Card Type: EM card
- Card Reading Distance: 0 to 3.5 cm
- Fingerprint Module: Optical fingerprint module
- Fingerprint Comparing Mode: 1:1 and 1:N
- Fingerprint Recognition Duration: < 1 s
- Fingerprint False Acceptance Rate (FAR): ≤ 0.001 %
- Fingerprint False Rejection Rate (FRR): ≤ 0.01 %
General
- Battery: Support
- Power Supply: 5 VDC/1 A
- Working Temperature: -10 °C to +55 °C (14 °F to +131 °F)
- Working Humidity: 10% to 90% (no condensing)
- Color: White
- Dimensions: 140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
- Application Environment: Indoor
- Installation: Wall mounting
