Description

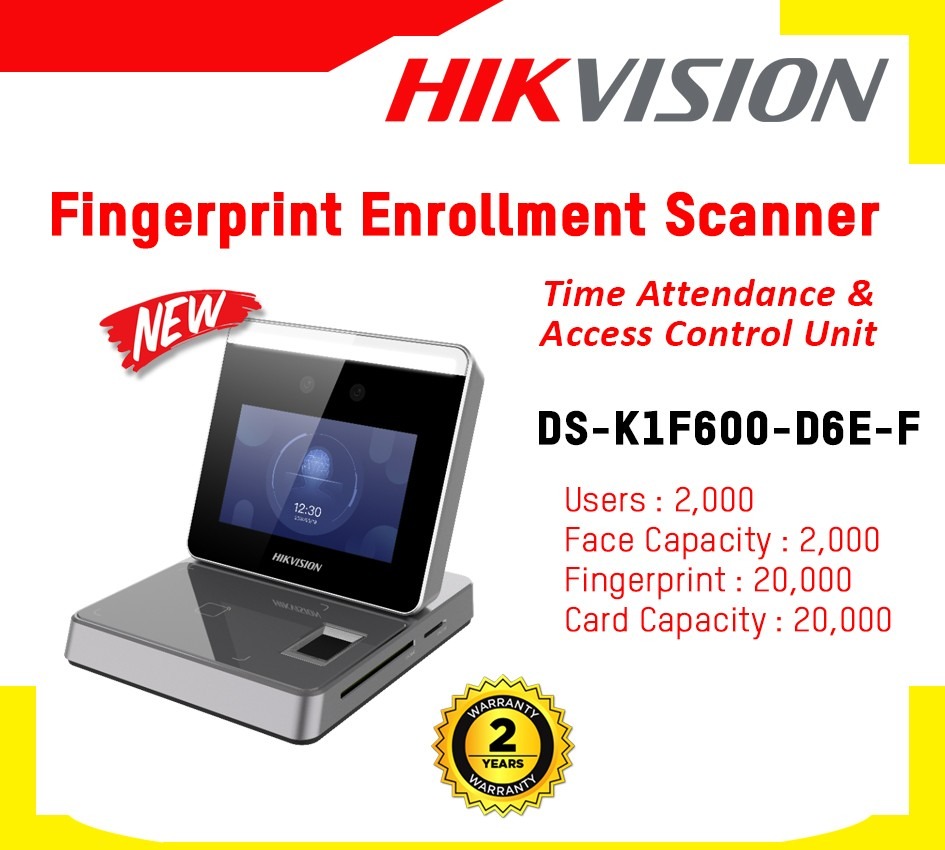

Quick Start Guide: DS-K1F600-D6E-F
Model |
DS-K1F600-D6E-F |
|
System |
Operation system |
Linux |
Screen |
Dimensions |
3.97 inch |
Resolution |
800 × 480 |
|
Type |
Capacitive |
|
Operation method |
Touch |
|
Video |
Pixel |
2 MP |
Lens |
2 |
|
WDR |
Support |
|
Video standard |
PAL/NTSC |
|
Audio |
Audio output |
Support |
Volume adjustment |
Support |
|
Network |
Wired network |
TCP/IP |
Wi-Fi |
Support |
|
Interface |
Power interface |
Round |
USB |
1 |
|
PSAM card |
Reserved |
|
Capacity |
User capacity |
2000 |
Card capacity |
20,000 (The displayed capacity on the device screen varies according to the configured enrollment rules) |
|
Face capacity |
2000 |
|
Fingerprint capacity |
20,000 (10 fingerprints per person) |
|
Event capacity |
2000 offline enrollment records |
|
Authentication |
Card type |
EM card and Mifare 1 card |
Card reading frequency |
13.56MHz, 125KHz |
|
Card reading distances |
0 to 5 cm |
|
Face recognition distance |
0.3 m to 1.5 m |
|
Function |
Face anti-spoofing |
Support |
Audio prompt |
Support |
|
M1 card encryption |
Support |
|
Time synchronization |
Support |
|
Others |
Supplement light |
Support |
Indicator |
Not support |
|
Power supply |
12 VDC, 15 W |
|
Working temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
|
Working humidity |
10% to 90% |
|
Others |
Dimensions |
121.6 mm × 137.9 mm × 125 mm (4.8″ × 5.4″ × 4.9″) |
Others |
Application environment |
Indoor |
Others |
Weight |
0.5 kg (1.1 lb) |
Others |
Installation |
Base Mounting |
