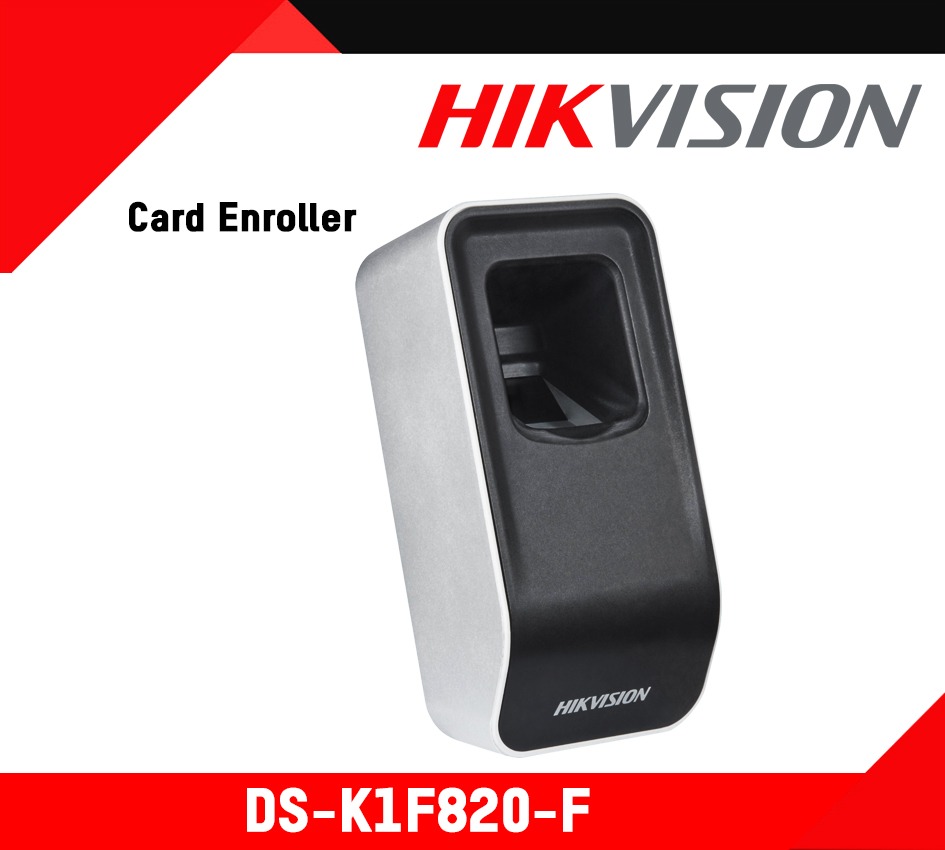

DS-K1F820-F Hikvision Card Enroller Colombocctv.com Srilanka
DS-K1F820-F
Availability: not in Stock

DS-K1F820-F

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • 508 dpi high-definition
  • Supports the function of PnP (plug and play)
  • Optical fingerprint sensor designed with scratch-resistant material
  • Applies to Windows XP, Windows7, and Windows 10 operation system
  • Supports configuration and operation via client software
  • USB 2.0 communication standard for data transmission
  • Power over USB
  • Composite fingerprint images from triple collection

Description

User Manual of DS-K1F820-F

Datasheet of DS-K1F820-F

System Parameters
Operation System: Windows XP, Windows7, and Windows 10
Fingerprint Template Size: 256 × 288 (pixel)
Fingerprint Module: Optical, Red Backlight
Resolution: 508 dpi
Device Interfaces
USB Interface: USB2.0
General
CPU: 32bit MCU
Working Voltage: 5 VDC, 200mA
Dimensions (L×W×H): 100mm × 48mm × 35mm (3.9” × 1.9” × 1.4”)
Working Humidity: 20% to 80% (Non-Condensing)
Working Temperature : -30°C to +70°C (-22°F to 158°F)
