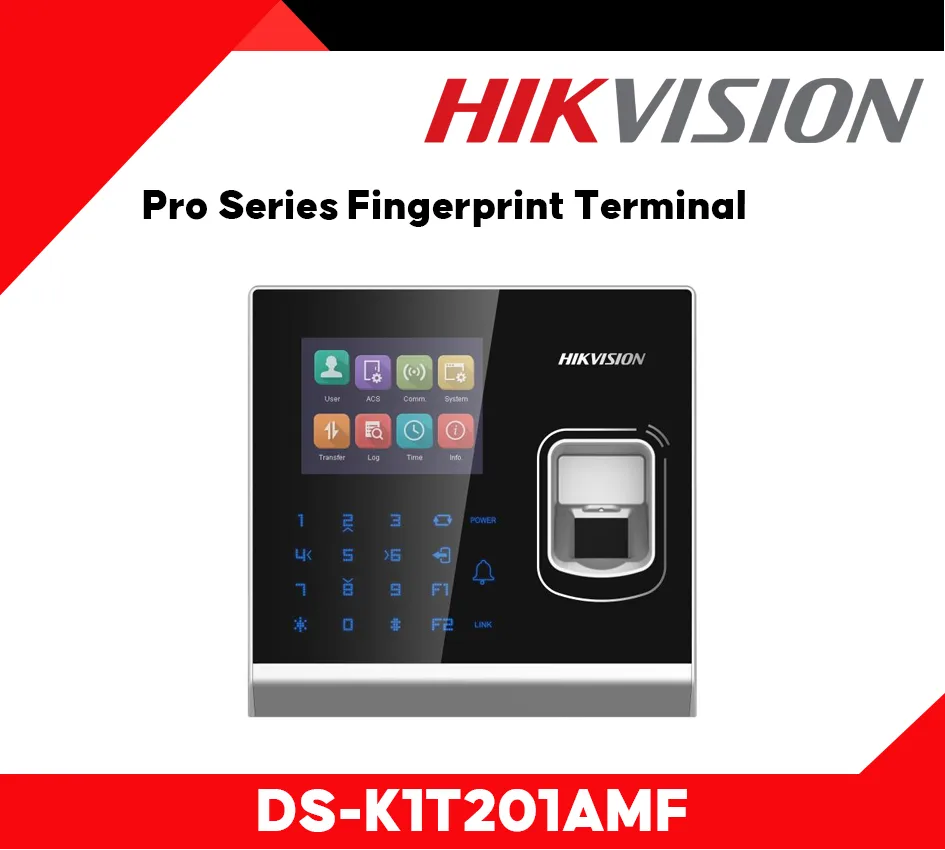

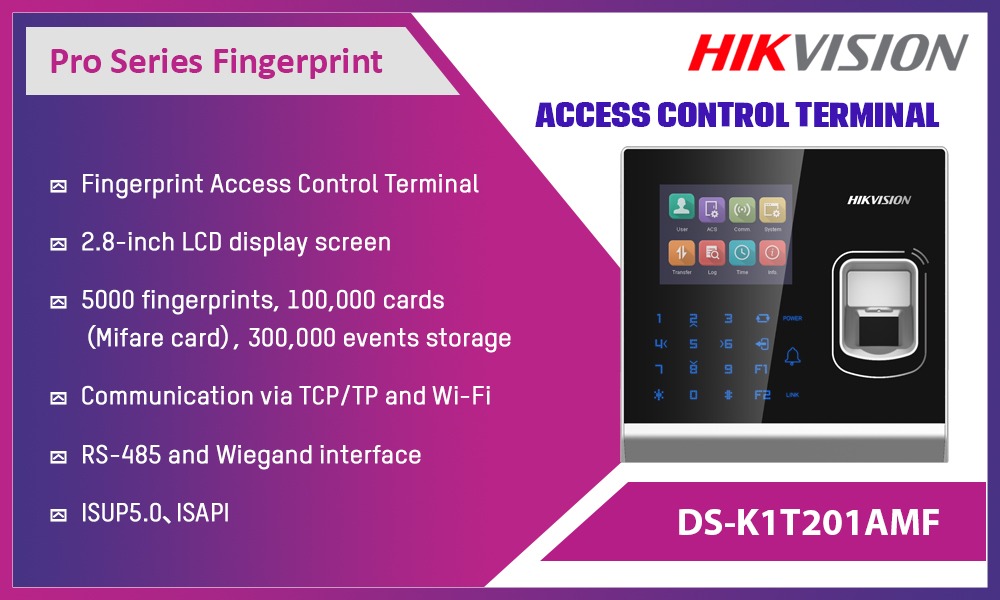

DS-K1T201AMF

Description

Datasheet: DS-K1T201AMF

User Manual: DS-K1T201AMF

Quick Start Guide: DS-K1T201AMF

Display

• Screen Size: 2.8-inch
• Type: Display screen

Network

• Wired Network: 100 M/1000 M self-adaptive

Interface

• Network Interface: 1
• Lock Control: 1
• Exit Button: 1
• Door Contact Input: 1
• Alarm Input: 2
• Alarm Output: 1
• TAMPER: 1
• RS-485: 1
• Wiegand: 1
• USB: 1

Authentication

• Card Reading Frequency: 13.56 MHz

General

• Power Supply: 12 VDC/2 A
• Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Working Humidity: 10% to 90%
• Dimensions: 137 mm x 142 mm x 35 mm (5.4″ × 5.6″ × 1.4″)
