Description

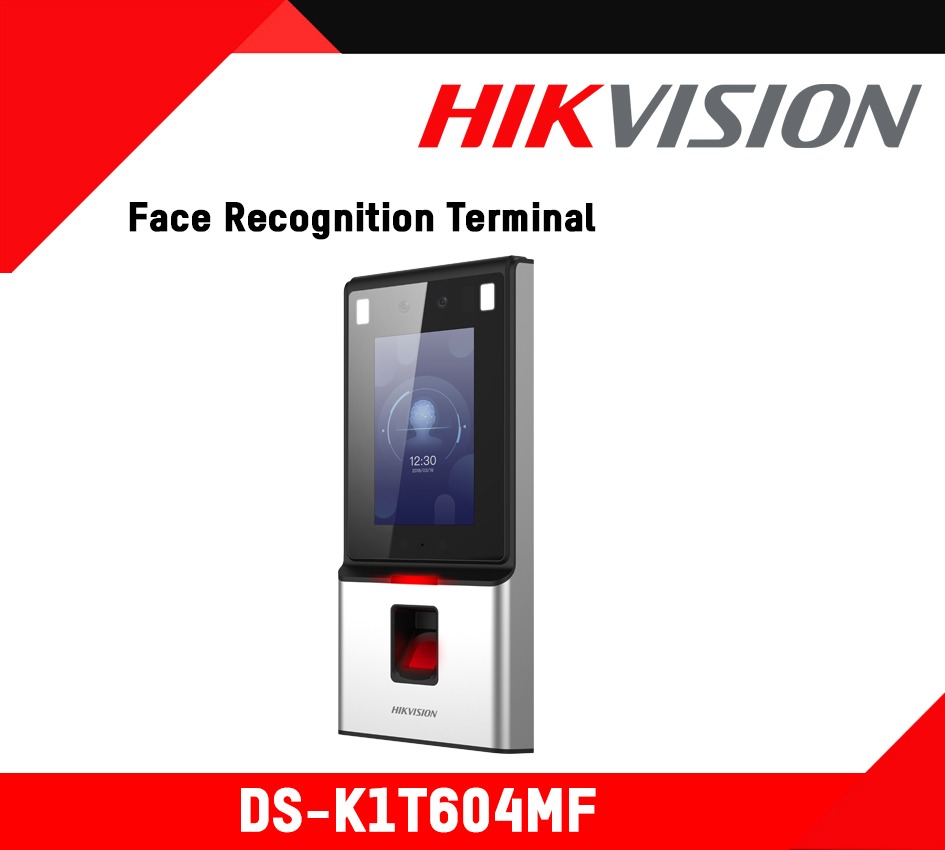

| Model | DS-K1T604MF | |
|---|---|---|
| System Parameters | ||
| 1:N Face Recognition Duration: | ≤0.5 s/Person | |
| Operation System: | Linux | |
| Card Capacity: | 50,000 | |
| Face Recognition Accuracy Rate: | ≥ 99% | |
| Card Type: | Mifare Card | |
| Camera: | 2 MP Dual-Lens Camera; 1080p; Auto-Focus; Suggested Person Recognition Height: 140 cm to 190 cm | |
| Event Capacity: | 50,000 | |
| Face Recognition Distance: | 0.3 m to 1 m | |
| Face Capacity: | 10,000; JPG and JPEG Format | |
| Processor: | GPU | |
| Device Interfaces | ||
| Communication Mode: | 10/100/1000 Mbps Self-Adaptive Network Interface | |
| Output Interface: | Lock × 1, Door Magnetic Sensor × 1, Alarm Output × 1 | |
| Input Interface: | RS-485 × 1, Wiegand × 1, USB × 1, Exit Button × 1, Tamper × 1 , Alarm Input × 2 | |
| General | ||
| LCD Screen: | 7-inch LCD Touch Screen; Ratio: 16:9; Resolution: 1280p × 600p | |
| Power Supply: | 12 VDC/3 A (Without Adapter; Centralized Power Supply); 36W | |
| Audio: | Loudspeaker | |
| Installation: | Wall Mounting with/without Gang Box | |
| Application Situation: | Indoor; Outdoor (Installed with Shell) | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -20°C to +65°C (-4°F to +149°F) | |
| Dimensions (L×W×H): | 330mm × 140mm × 45mm (12.99” × 5.51” × 1.77″) | |
