Description

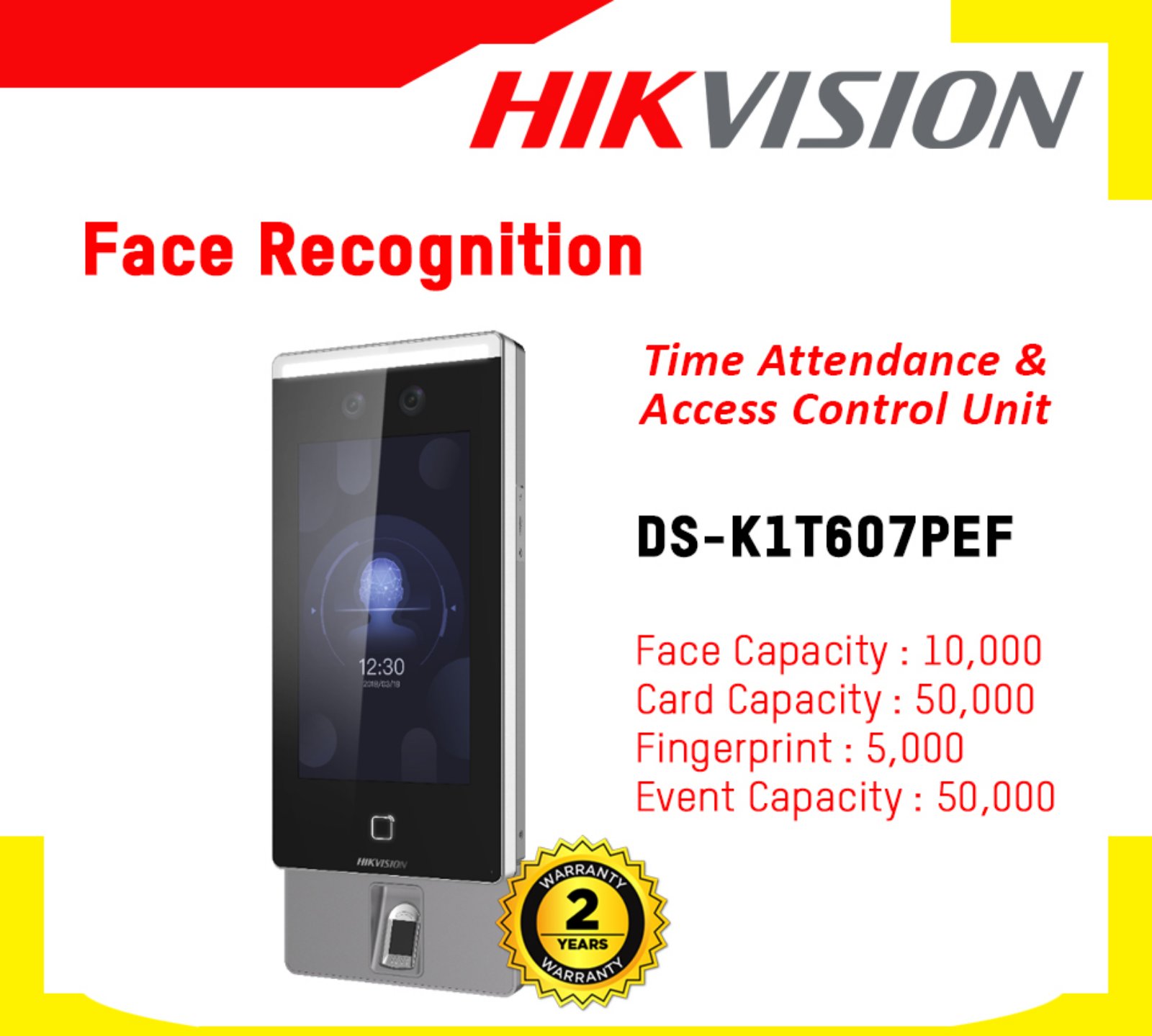

Quick Start Guide: DS-K1T607PEF
General
- Fingerprint Capacity: 5000
- Card Reading Response Duration: < 1 s
- Wi-Fi: Not support
- Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity: 0 to 90% (No condensing)
- Protection Level: IP65
- Tamper-Proof: Support
System Parameters
- Operation System: Linux
- Camera: 2 MP dual-lens camera, with IR supplement light, WDR
- Card Reading Mode: EM card
- Induction Distance: 0 to 3 cm
- 1:1 Face Recognition Duration: < 0.5 s per person
- Face Picture Capacity: 10,000
- Event Capacity: 50,000
General
- Working Voltage: 12 VDC/3 A
- Face Recognition Distance: 0.3 to 1.5 m
- Card Capacity: 50,000
- Interface (Built-In): Network × 1, RS-485 × 1, Wiegand × 1, USB × 1, alarm output × 1, alarm input × 2, lock ×1, door contact × 1, exit button × 1, tamper × 1
