Description

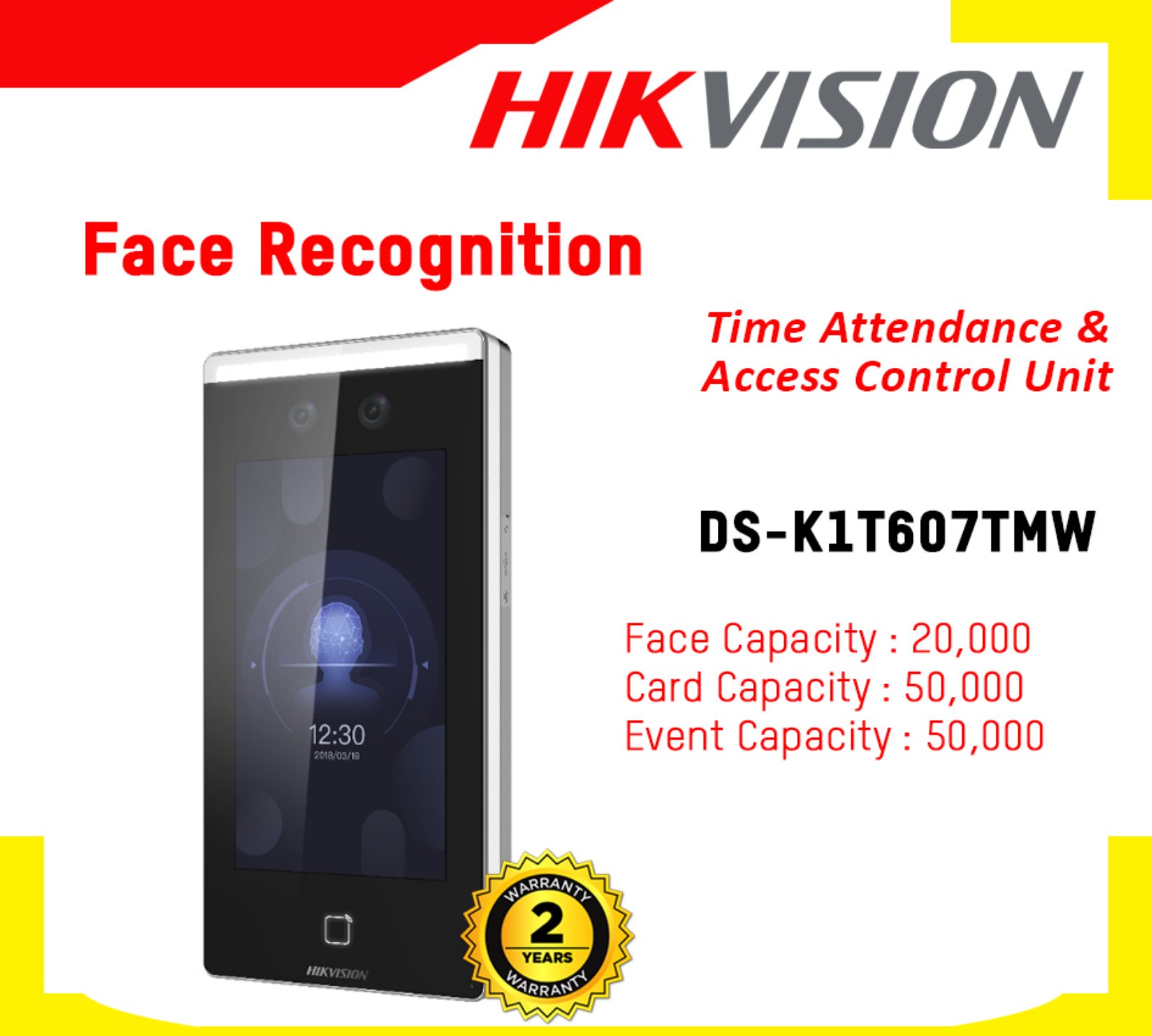

Datasheet: DS-K1T607TMW
User Manual: DS-K1T607TMW
Model |
DS-K1T607TMW |
---|---|
Operating system | Linux |
Screen | 7 ” 16: 9 touchscreen with 1024 x 600 resolution |
Camera | 2 MP, dual lens, IR illuminator and WDR |
Indicator | there is |
Recognition mode | Faces: 1: 1 and 1: N |
Number of persons in the database | 20,000 |
Duration of face recognition | <0.5 s for 1 person |
Recognition distance | 0.3-1.5 m |
Number of Cards Supported | 50,000 |
Card type | M1 |
Duration of contact of the card with the terminal | <1 s |
Distance for interaction between the card and the terminal | 0-3 cm |
Number of events | 50,000 |
Interfaces | Network, RS-485, Wiegand, USB, alarm input, 2 alarm outputs, lock, door contact, exit button, tamper |
Net | 10, 100, 1000 Mbps adaptive interface |
Wi-Fi | there is |
Food | DC 12V / 3A |
Working conditions | -30 ° C … + 60 ° C, humidity 0% – 90% |
Dimensions (edit) | 116.5 x 239 x 33mm |
Protection | IP65 |
Tamper | Supported |
