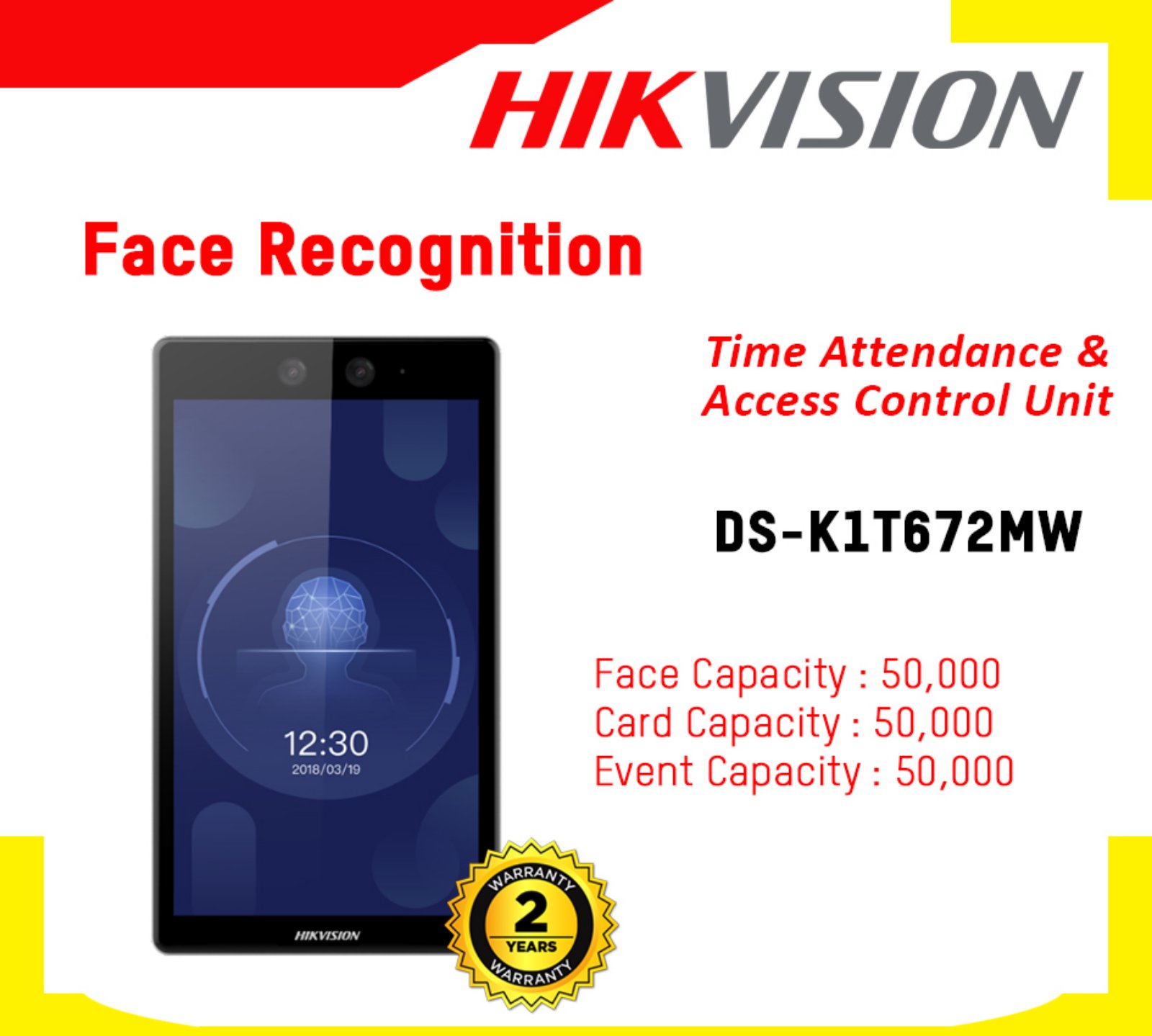

Quick Start Guide: DS-K1T672MW
Display
- Dimensions: 7-inch
- Type: LCD
- Operation Method: Capacitive touch screen
Video
- Pixel: 2 MP
- Lens: × 2 (Visible light lens × 1,850nm Infrared lens × 1)
Audio
- Tone Quality: Noise Suppression and Echo Cancellation
Network
- Wired Network: 10 M/100 M/1000 M self-adaptive
- Wi-Fi: Support
- Communication Protocol: ISUP5.0; SDK; RTSP; ISAPI; Hik-Connect; HikCentral Pro OpenAPI; Hik-ProConnect OpenAPI
Interface
- Network Interface: 1
- Lock Output: 1
- Exit Button: 1
- Door Contact Input: 1
- Power Interface: 2-pin
Capacity
- Card Capacity: 50,000
- Face Capacity: 50,000
- Event Capacity: 50,000
Authentication
- Card Type: Mifare 1 card
- Card Reading Frequency: 13.56MHz
- Face Recognition Accuracy Rate: ≥99%
- Face Recognition Distance: 0.3 to 3 m
Function
- QR Code Recognition: Support
- Face Anti-Spoofing: Support
- Audio Prompt: Support
- Time Synchronization: Support
General
- Button: Touch screen
- Power Supply Method: 12 VDC Power Adapter
- Working Temperature: -10 °C to 50 °C (-58 °F to 122 °F)
- Working Humidity: 0 to 90% (No condensing)
- Dimensions: 185.8 × 103.36 × 20.7mm (7.31” × 4.07” × 0.81” )
- Application Environment: Indoor
- Installation: Surface mounting
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
- Platform: Hik-ProConnect and HikCentral Professional
