Description
Datasheet: Datasheet: DS-K1T8003MF
User Manual: DS-K1T8003MF

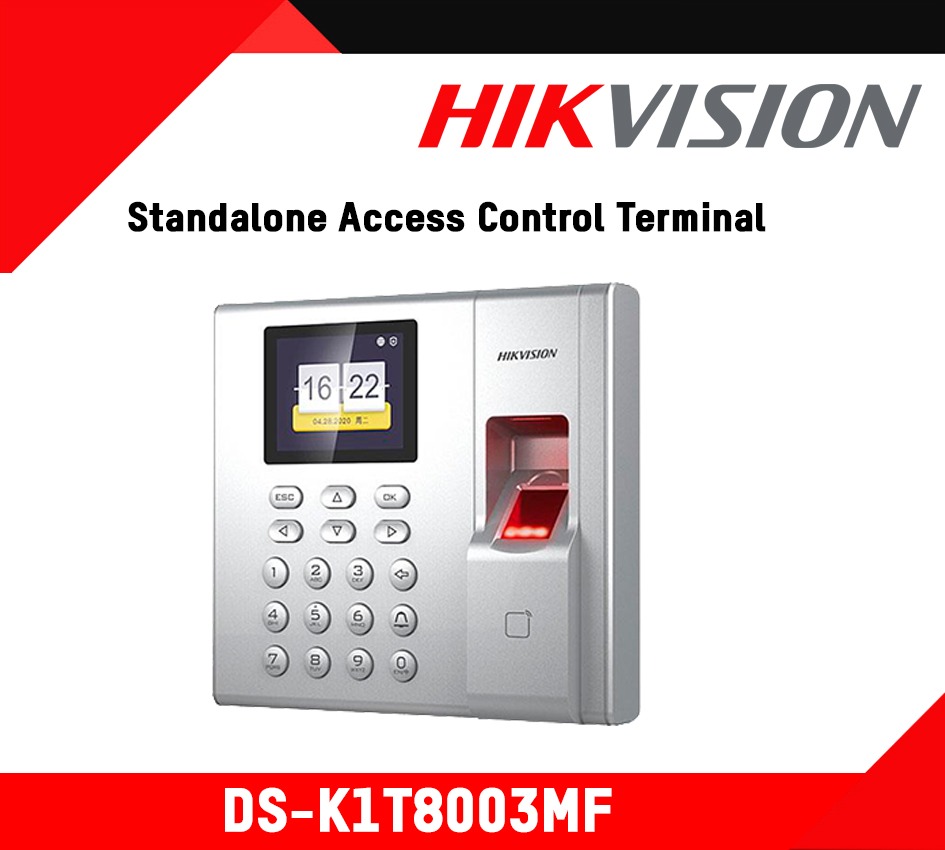

| Model | DS-K1T8003MF | |
|---|---|---|
| System Parameters | ||
| Fingerprint Recognition Duration: | 1:N recognition duration (Up to 1000 fingerprints) < 1 s | |
| Operation System: | Linux | |
| Fingerprint Module: | Optical fingerprint module | |
| Storage: | 1,000 users, 1,000 cards, 100,000 events | |
| FRR (False Rejection Rate): | ≤0.1% | |
| Card Reading Distance: | 0 to 5cm | |
| FAR (False Accept Rate): | ≤0.001% | |
| Card Type: | M1 Card | |
| Fingerprint Capacity: | 1,000 | |
| Device Interfaces | ||
| Communication Mode: | Ethernet 10/100Mbps self-adaptive; EHome | |
| Output Interface: | Doorbell×1, Relay×1 | |
| Input Interface: | Exit button × 1, door contact × 1 | |
| USB Interface: | USB2.0 | |
| General | ||
| SSR(Self Service Reports): | Stand-alone operation, calculate attendance data and export reports via USB interface | |
| LCD Screen: | 2.4-inch (320×240 LCD-TFT Display Screen) | |
| Key Board: | Physical Keys (No Back Light) | |
| Power Supply: | 12 VDC/1 A | |
| Audio: | 1 Buzzer and 1 Loudspeaker | |
| Installation: | Wall Mounting with/without Gang Box | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -10° C to 55° C (14° F to 131° F) | |
| Dimensions (L×W×H): | 140mm × 155mm × 30mm (5.51″ × 6.01″ × 1.18″) | |
