Description

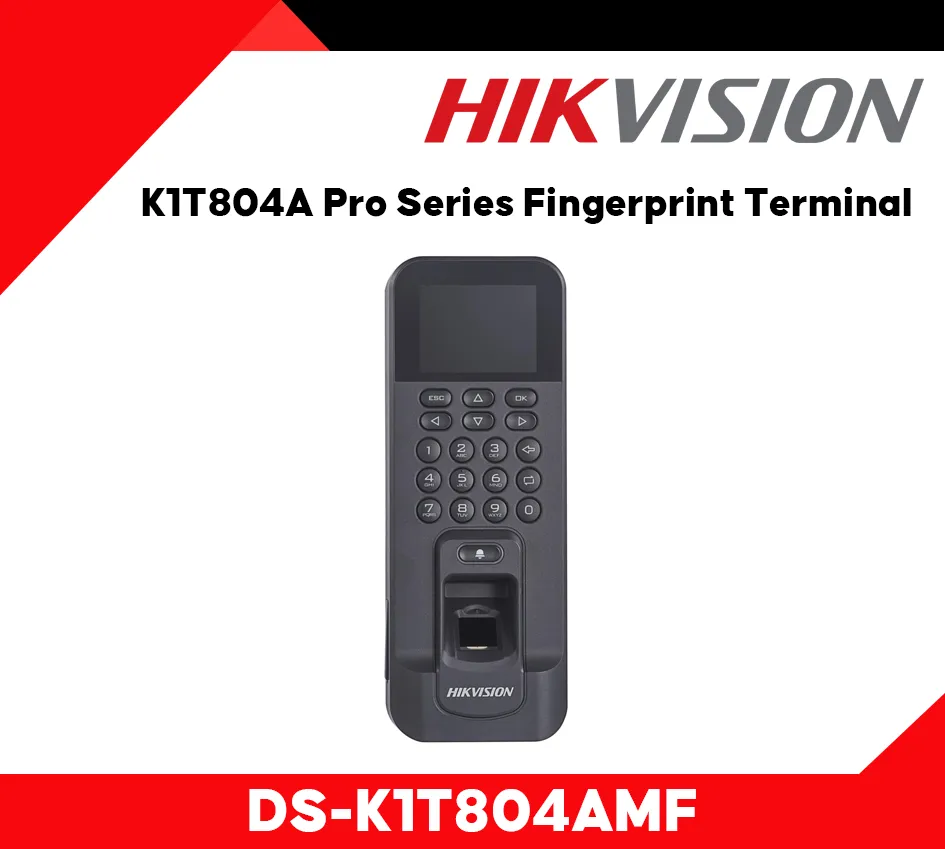

Datasheet: DS-K1T804AMF
User Manual: DS-K1T804AMF
Quick Start Guide: DS-K1T804AMF
Display
- Screen Size: 2.4-inch
- Resolution: 320 × 240
- Type: LCD-TFT display screen
Audio
- Audio Output: 1 loudspeaker, 1 buzzer
Network
- Wired Network: TCP/IP, 10/100Mbps, self-adaptive
- Wi-Fi: Support
Interface
- Network Interface: 1
- RS-485: 1
- Wiegand: 1
- Lock Control: 1
- Exit Button: 1
- Door Contact Input: 1
- Alarm Input: 1
- Alarm Output: 1
- TAMPER: 1
- USB: 1
Capacity
- Card Capacity: 3000
- Fingerprint Capacity: 3000
- Event Capacity: 100,000
Authentication
- Card Type: Mifare 1 card
- Reading Distance: 0 to 4.5 cm
- Card Reading Duration: ＜ 1 s
- Fingerprint Module: Optical fingerprint module
- Comparing Mode: 1:1 and 1:N
- Fingerprint Recognition Duration: ＜ 1 s
General
- Indicator: Power/status (red/green)
- Power Supply: 12 VDC/1 A
- Working Temperature: -10 °C to +55 °C (14 °F to +131 °F)
- Working Humidity: 10% to 90% (no condensing)
- Color: Black (included), gold (optional), silver (optional), white (optional)
- Dimensions: 205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)
- Installation: Surface mounting
