Description
Quick Start Guide of DS-K1T804
| System Parameters | ||
|---|---|---|
| Fingerprint Recognition Duration: | < 1 s | |
| Operation System: | Linux | |
| Storage: | 3,000 cards, 100,000 events, 150,000 attendance records | |
| FRR (False Rejection Rate): | ≤0.01% | |
| Card Reading Distance: | 0 to 5cm | |
| FAR (False Accept Rate): | ≤0.001% | |
| Fingerprint Comparing Mode: | 1:1 and 1:N, N=3000 | |
| Card Reading Mode: | Supports Mifare Card, Including Cards with Special Shapes; Supports Reading Card in Metal Environment | |
| Card Reading Response Duration: | < 1 s | |
| Fingerprint Recognizer: | Optical Fingerprint Recognizer Module | |
| Fingerprint Capacity: | 3,000 | |
| Device Interfaces | ||
|---|---|---|
| Wiegand Interface: | Output: Wiegand 26/34; Input: Wiegand 26/34 | |
| Communication Interface: | TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34) | |
| Output Interface: | Relay (Lock Output) × 1, and Alarm Output × 1 | |
| External Card Reader: | Standard Wiegand26/34 | |
| Transmission Rate: | TCP/IP, WIFI: 10/100Mbps Self-adaptive, RS-485: 19200 bps-N-8-1 |
|
| Input Interface: | Exit Button × 1, Door Sensor × 1 and Alarm Input × 1 | |
| Wi-Fi: | Support | |
| USB Interface: | USB2.0, Type A | |
| General | ||
|---|---|---|
| LCD Screen: | 2.4-inch (320×240 LCD-TFT Display Screen) | |
| Key Board: | Keyboard (Back Light) | |
| Power Supply: | 12 VDC/2 A | |
| Audio: | 1 Buzzer and 1 Loudspeaker | |

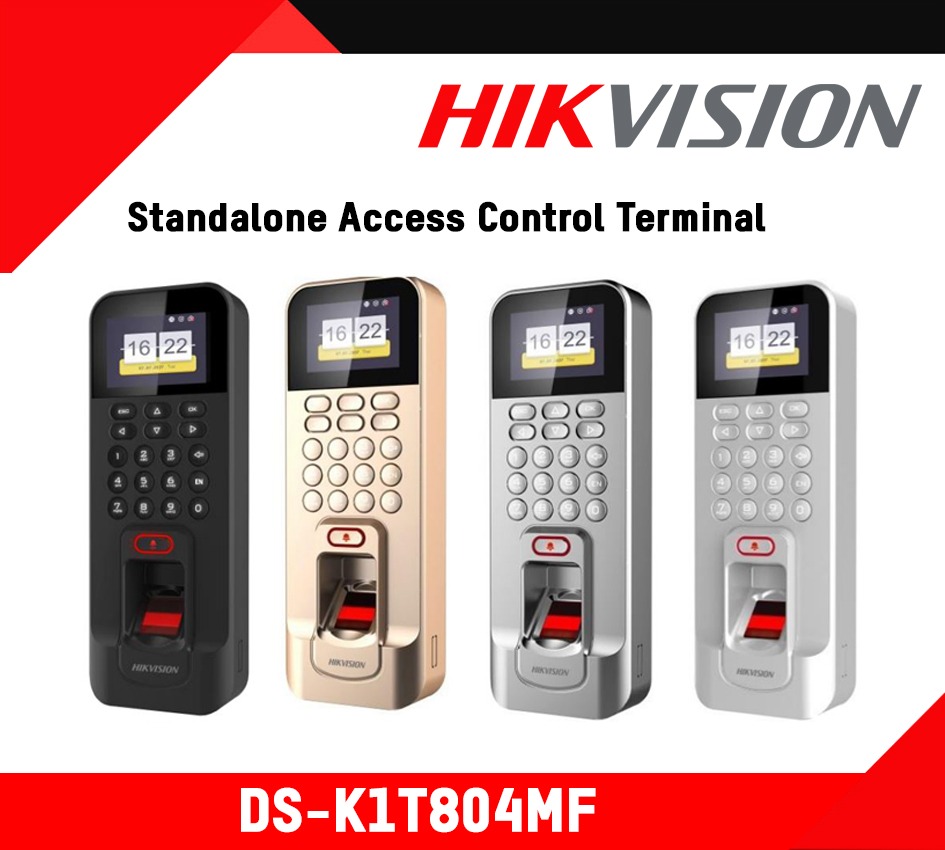

| Appearance Color: | Black (Included), Gold (Optional), Silver (Optional), White (Optional) | |
| LED Indicator: | Power/Status (Red/Green) | |
| Reset Key: | × 1 | |
| Installation: | Surface Mounting, Metal Door Mounting, Installation with Gang Box | |
| Temper-Proof: | Support | |
| Water-Proof: | IP42 | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -10° C to 55° C (14° F to 131° F) | |
| Dimensions (L×W×H): | 205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″) | |
