Description

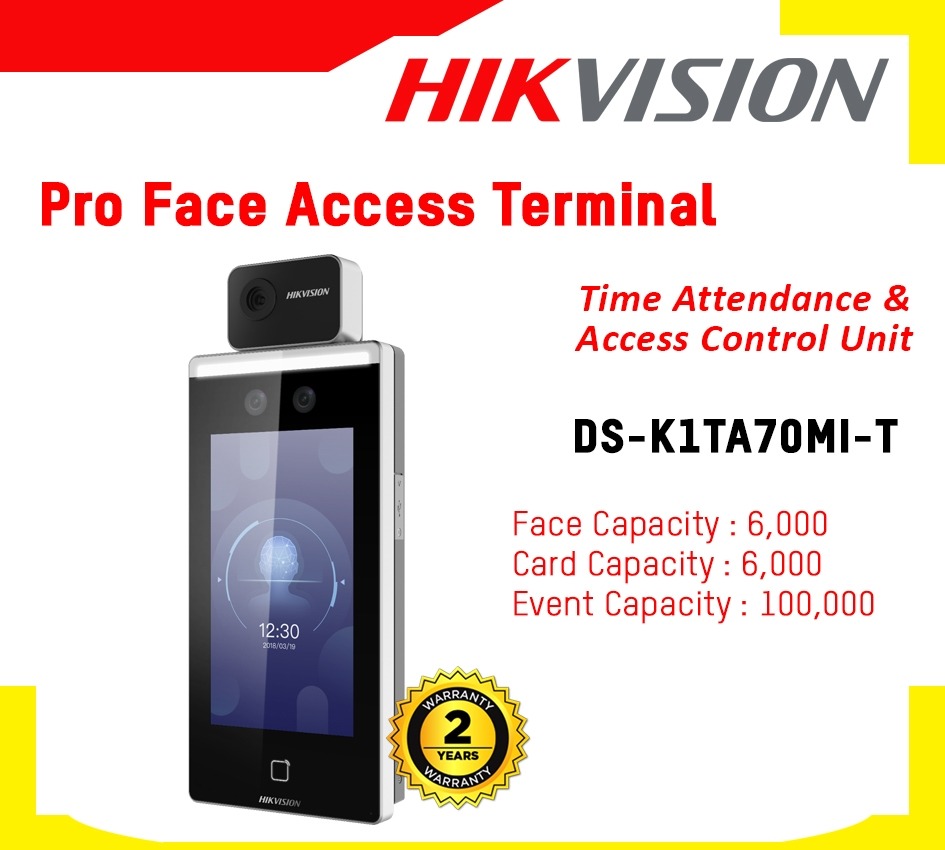

Quick Start Guide: DS-K1TA70MI-T
Model | DS-K1TA70MI-T |
---|---|
Temperature measurement |
|
Temperature range |
30 °C to 45 °C (86 °F to 113 °F) |
Sensor |
Vanadium Oxide uncooled sensor |
Resolution |
120 × 160 |
Frame rate |
25 fps |
Measurement accuracy |
0.1 °C |
Measurement deviation |
± 0.5 °C |
Measuring distance |
0.3 to 1.8 m |
Screen |
|
Size |
7-inch |
Type |
Touch screen |
Camera |
|
Pixel |
2 MP |
Lens |
Dual – lens |
Network |
|
Wired network |
Support, 10/100/1000 Mbps self-adaptive |
Interface |
|
Network interface |
1 |
RS-485 |
1 |
Wiegand |
1 |
Lock output |
1 |
Exit button |
1 |
Door contact input |
1 |
IO input |
2 |
IO output |
1 |
TAMPER |
1 |
Capacity |
|
Card capacity |
6000 |
Face capacity |
6000 |
Event capacity |
100,000 |
Authentication |
|
Card type |
Mifare 1 card |
Card reading distance |
0 to 5 cm |
Card reading duration |
< 1 s |
Face recognition duration |
< 0.2 s per person |
Face recognition distance |
0.3 to 1.8 m |
Function |
|
Face anti-spoofing |
Support |
Live view |
Support |
Audio prompt |
Support |
Others |
|
Power supply |
12 VDC/2 A |
Working temperature |
0 °C to 50 °C (32 °F to 122 °F) For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F) |
Working humidity |
10 to 90% (No condensing) |
Application environment |
Indoor and windless environment use only |
