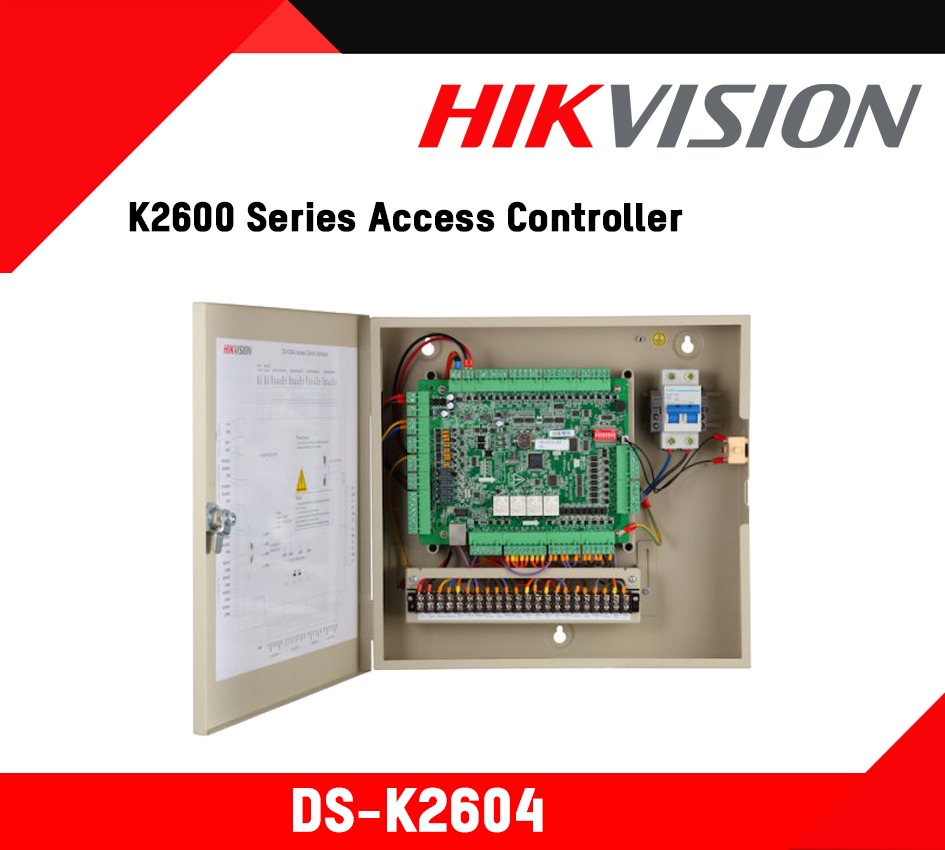

DS-K2604 - Hikvision K2600 Series Access Controller Colombo CCTV Srilanka
DS-K2604
Availability: not in Stock

DS-K2604

logo-2
Key Features

  • 32-bit high-speed processor
  • TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
  • The recognition and storage of card number with maximum 20 digits
  • Massive storage with 100,000 (can be expended to 200,000) cards information and 300,000 (can be expended to 600,000) access control events
  • Supports multi-door interlocking function (DS-K2602, and DS-K2604), anti-passback function, multi-card function, first card function, super card and super password function
  • Online upgrade function and online remote control of the doors
  • Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm, duress card and code alarm, blacklist alarm and alarm for invalid card swiping attempts alarm)
  • Short circuit attempts alarm and open circuit attempts alarm
  • Supports zone alarm input
  • Supports RS485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
  • Supports various card types such as normal/ disabled/ blacklist/ patrol/ guest/ duress/ super card, etc.
  • Various indicators to show different device status
  • Supports time synchronization via NTP, manual or automatic method
  • Supports standby battery
  • Watchdog for device running status detection
  • Data can be permanently saved when the access controller is powered off
Categories:

Description

User manual of DS-K2604 Series

Quick Start Guide of DS-K2604 Series

Datasheet of DS-K2604 Series

System Parameters
Storage: 100,000 cards(200,000 expandable) 300,000 events(600,000 expandable)
Capacity: 16M
Processor: 32-bit
Device Interfaces
Accessible Card Reader: 8 Card Readers (RS485 Interface) and 4 Card Readers (Wiegand Interface) Connectable
Uplink Communication Interface: TCP/IP Network Interface and RS-485 Interface
Downlink Communication Interface: RS-485 and Wiegand (W26/W34)
Output Interface: Lock Relay×4, Alarm Relay×4
Input Interface: Alarm Input×4,Door Sensor×4,Exit Button×4,Case Input×8,Tamper Alarm ×1
General
Working Voltage: DC 12V/1A
Power Consumption: ≤4W(Without Load); ≤100W(with Load)
LED Indicator: Power Supply Status, Communication Status, Working Status
Certification: CE, FCC
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 370mm x 345mm x 90 mm (14.6” x 13.6” x 3.5″)
