Description

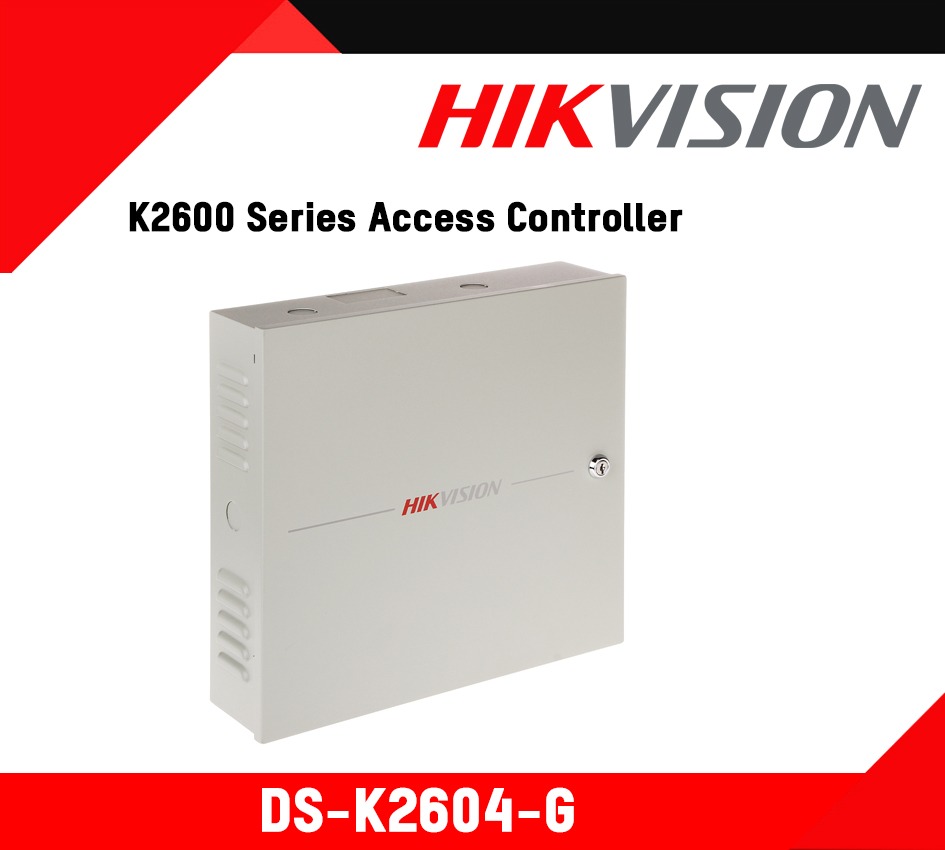

| Model | DS-K2604-G |
|---|---|
| Processor | 32-bit |
| Capacity | 16 MB |
| Clock | Built-In |
| Power Supply | 110 to 220 VDC |
| Working Voltage | 12 VDC, 1 A |
| Power Dissipation | With Load: ≤100 Without Load: ≤4 W |
| LED Indicators | Power Supply Status |
| Alarm | 4 x Alarm Inputs 4 x Alarm Outputs 8 x Case Inputs 4 x Door Sensor 4 x Exit Button 1 x Tamper Alarm 1 x Fire Relay |
| Connectivity | 1 x RJ-45 Input at 10/100/1000 Mb/s TCP/IP, and RS-485 Uplink Communication Interfaces VMS |
| External Card Reader Support | 8 RS-485 Interface Card Readers 4 Wiegand Interface Card Readers |
| Storage | Card Information: 100,000, Expandable to 200,000 Access Control Events: 300,000, Expandable to 600,000 |
| Material of Construction | Aluminum Alloy |
| Mounting | Surface Mount |
| Supported Recorders | Hikvision I-Series NVR TurboHD 3.0 and 4.0 DVRs |
| Supported Features | Event Text Overlay for Other IPC Streams, Search Playback by Access Control Event, and Search Playback by Card Access Event |
| Certifications | CE, FCC, UL |
| Operating Temperature | -40 to 60°F / -40 to 140°C |
| Operating Humidity | 10 to 90%, Non-Condensing |
| Dimensions (L x W x H) | 17.7 x 15.7 x 3.7″ / 450 x 400 x 93.7 mm |
| Package Weight | 22.8 lb |
| Box Dimensions (LxWxH) | 23 x 21.5 x 7.5″ |
