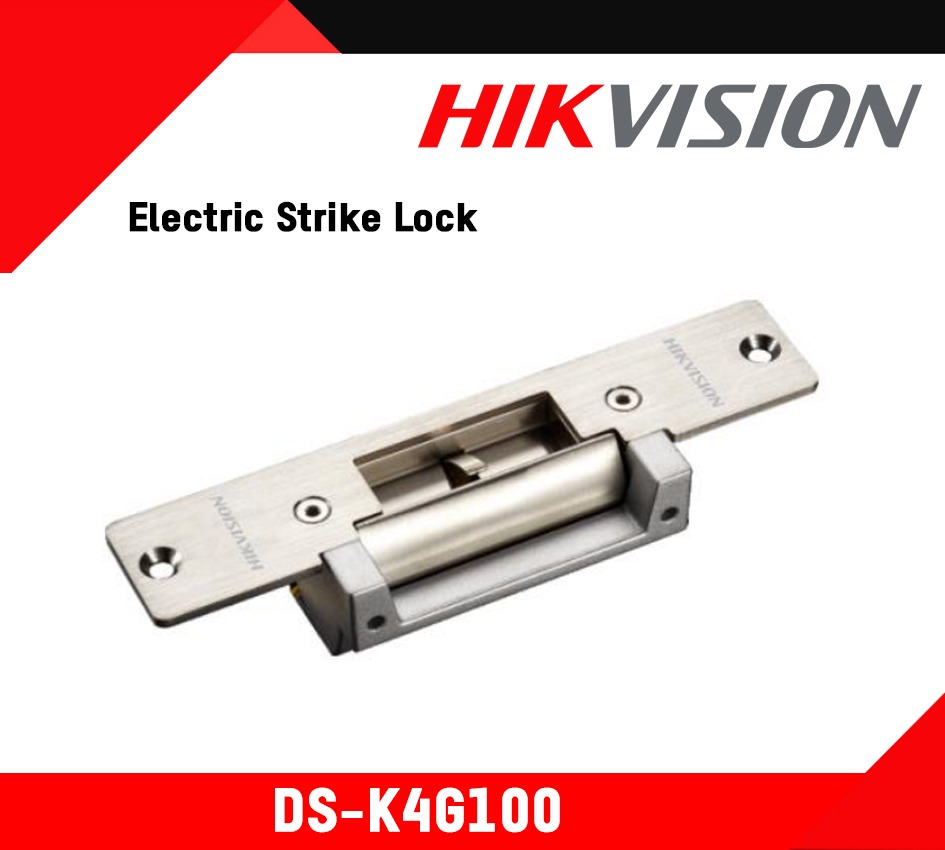

Description
| IGeneral | |
|---|---|
| Maximum Thrust | 800 kg (1764 lb) |
| Input Voltage | 12 VDC, 320 mA/24 VDC, 160 mA ± 15% |
| Signal Output | Dry contact signal output; NO output while locking and NC output while unlocking |
| Suitable Door | Wooden door, metal door, PVC door |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 0 to 95% (non-condensing) |
| Weight | 0.4 kg (0.9 lb) |
| Material Of Latch | Stainless steel |
| Dimension Of Lock Body (L × W × H) | 165 mm × 43.7 mm × 35 mm (6.5″ × 1.7″ × 1.4″) |
