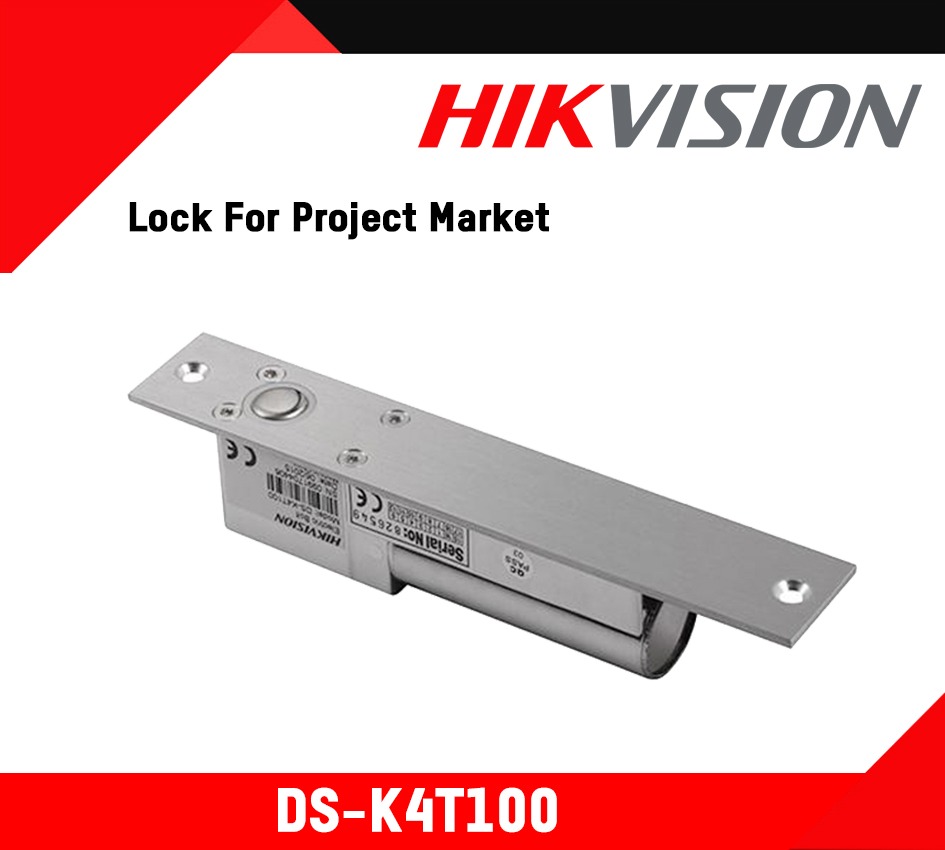

DS-K4T100 - Hikvision Lock For Project Market Colombo CCTV Srilanka
DS-K4T100
Availability: not in Stock

DS-K4T100

logo-2</a>

Key Features

  • Photoelectric control technique to avoid mechanical failure;
  • Ultra-cold design and ultralow-consumption to make the electric bolt safer and more durable;
  • 500 thousand times of locking operation.
  • Equipped with internal voltage dependent resistor (MOV);
  • Equipped with smart one-chip;
  • The main body and bolt of the electric strike is made up of alloy and stainless steel respectively;
  • The delay duration can be set: 0/3/6/9s

Description

Datasheet of DS-K4T100

General
Delay Duration: 0/3/6/9s Optional
Secure: Power Off for Unlocking
Bolt Performance: Polished and Brushed Stainless Steel, Support Thrust of 800kg
Dimension of Plate (L×W×H): 205mm × 35mm × 40mm (8.07” × 1.38” × 1.57″)
Working Voltage: 12VDC+10%
Working Current: 900mA (Startup Current) 100mA (Standby)
Magnetic Induction Distance: 8mm (0.31″)
Dimension of Strike (L×W×H): 90×25×2mm (3.54×0.98×0.07″)
Dimension of Bolt: 16mm×16mm (0.63×0.63″)
Lifetime: 500 Thousand Times of Locking Operation
Suitable Doors: Wooden Door, Glass Door, Metal Door, Fireproof Door
Signal Output: Signal Output NC, COM Contact of Door-status
Working Humidity: 0 to 95% (relative humidity)
Working Temperature : -10° C to 55° C (14° F to 131° F)
Weight: 0.7kg(1.54lb)
