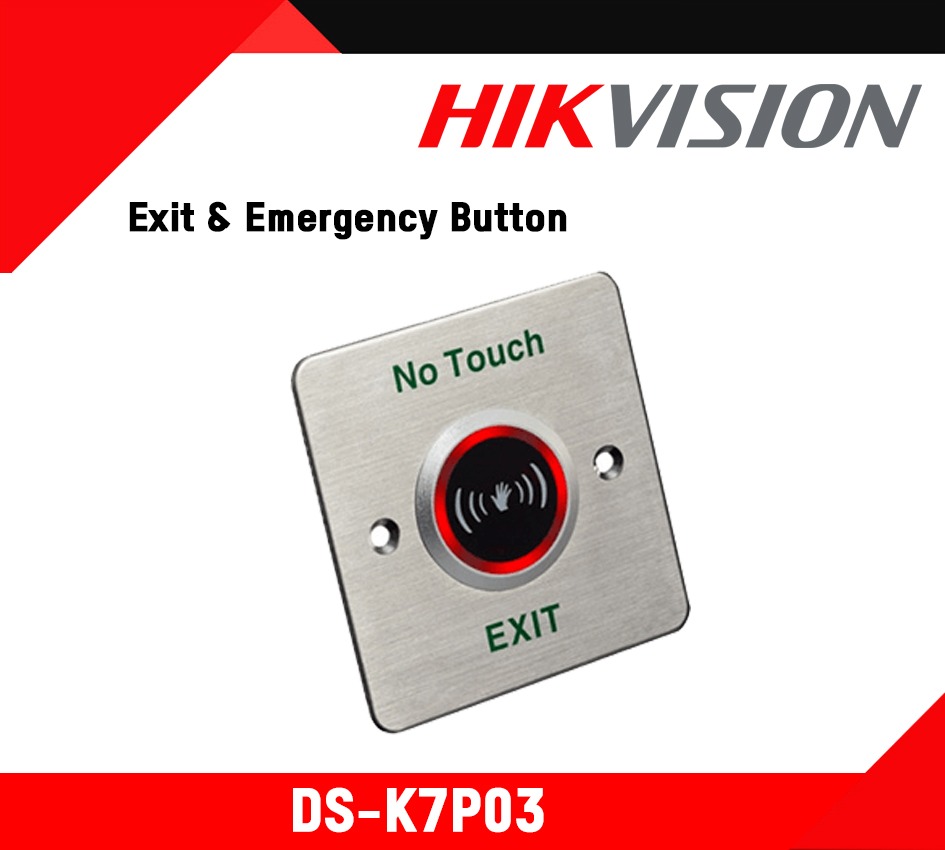

DS-K7P03 - Hikvision Emergency Exit Button in Colombo CCTV Srilanka
DS-K7P03
Availability: not in Stock

DS-K7P03

logo-2
Key Features

  • Dimension (L×W×H): 86×86×28.9mm(3.39×3.39×1.14″)
  • Structure: aluminum alloy panel, metal button
  • Current Rating: 3A@36VDC Max
  • Output Contact: NO/NC/COM Contact
  • Aging Test: already passed 500 thousand times aging test
  • Suitable Doors: hollow doorframe and embedded-electric box
  • Working Temperature: -10°C to +55°C (14°F to 131°F)
  • Working Humidity: 0 to 95% (relative humidity)
  • Panel: aluminum panel with sandblast
  • Product Weight: 0.25kg (0.55lb)

Description

Datasheet of Exit Button

General
Output Contact: NO/NC/COM Contact
Aging Test: already passed 1 million times aging test
Working Current: 20mA(standby), 50mA(working current)
Power Supply: 12VDC
Suitable Doors: all kinds of narrow doorframes
Maximum Inductive Distance: 40 to 100mm(1.57 to 3.94″) (adjustable)
LED Indicator: white/green/red LED, indicates power-off/active/Standby
Panel: aluminum panel
Working Humidity: 0 to 95% (relative humidity)
Working Temperature : -20°C to +50°C (-4°F to 122°F)
Dimensions (L×W×H): 86mm × 86mm × 25.7mm(3.39” × 3.39” × 1.01″)
Weight: 0.15kg (0.33lb)
