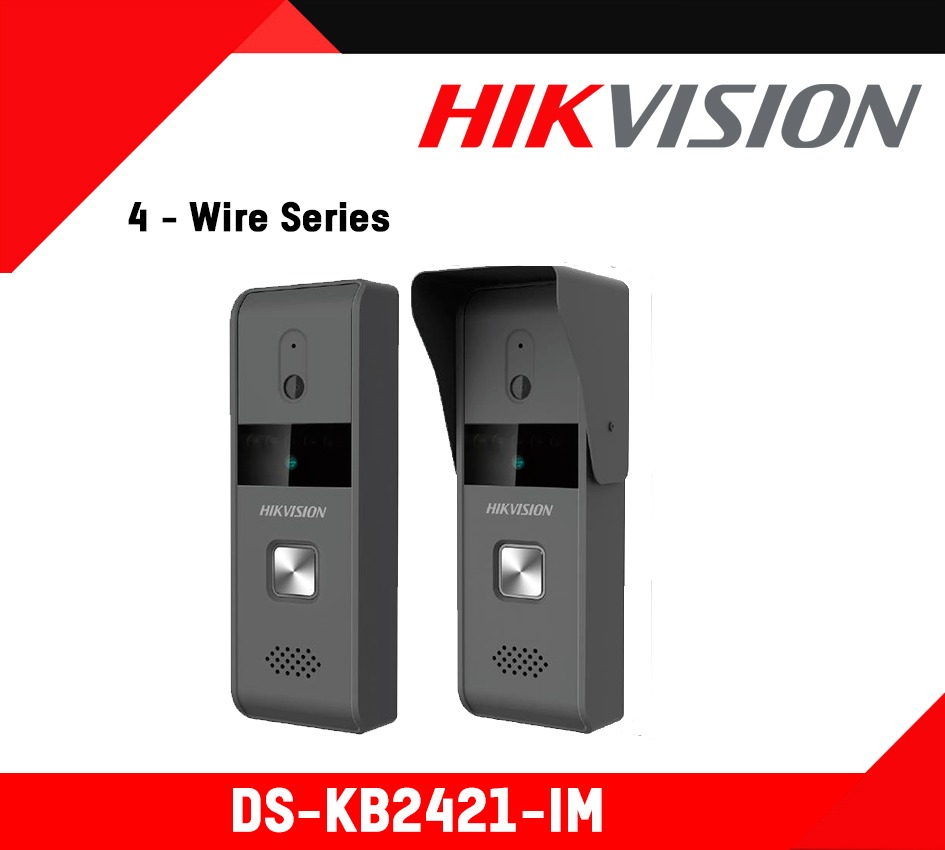

DS-KB2421-IM Hikvision 4 - Wire Series (Analog) Door Station Colombocctv.com Srilanka
DS-KB2421-IM
Availability: not in Stock

DS-KB2421-IM

Hikvision cctv cameras ans dvr in colombo cctv srilanka

Key Features

  • Four wire (analog) interface
  • Pinhole camera with IR supplement, metal frame with one physical button
  • Video calls to indoor station
  • Access control function supported
  • IK7, IP65

Description

 Datasheet : DS-KB2421-IM

 User Manual : DS-KB2421-IM

General
Power Supply 12 VDC
Power Consumption ≤5 W
Working Temperature ‘-30°C to 70°C (-22°F to 158°F)
Working Humidity 10% to 90%
Dimensions (L X W X H) 145 mm × 49.2 mm × 26.45 mm (5.7″ × 1.9″ × 1.0″)
Material Zinc Alloy
Display Parameters
Display Screen 7-Inch Colorful TFT LCD
Display Resolution 800 × 480
Operation Method Physical Button
Device Interfaces
Four-Wire Interface 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio,Input/Output, 1-ch Power Supply, 1-ch Grounding)
I/O Output 1 Relay Output
Audio Parameters
Audio Input Built-in Omnidirectional Microphone
Audio Output Built-in Loudspeaker
Audio Quality Noise Suppression and Echo Cancellation
Device Interfaces
Four-Wire Interface 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio,Input/Output, 1-ch Power Supply, 1-ch Grounding)
I/O Output 1 Relay Output
Video Parameters
Camera 1/4″ CMOS
Resolution 720 × 576
Video Frame Rate PAL: 25 fps
