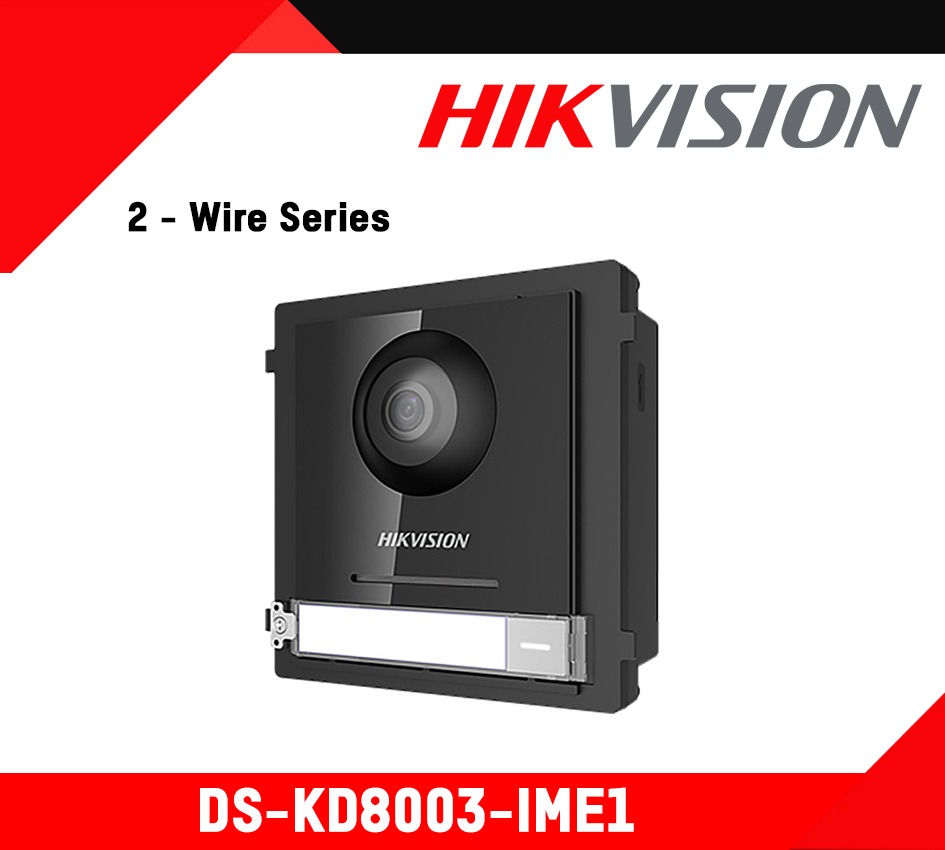

Datasheet of DS-KD8003-IME1
| System Parameters |
| Operation System: |
Embedded Linux Operation System |
| Operation method: |
Physical Button |
| Processor: |
Embedded MCU Processor |
| Camera Parameters |
| Field of view: |
180° (Horizontal), 96°(Vertical) |
| Audio Parameters |
| Audio Input: |
Built-in Omnidirectional Microphone |
| Audio Output: |
Built-in Loudspeaker(More than 85dB within 20 cm) |
| Audio Compression Standard: |
G.711 U |
| Audio Compression Rate: |
64 Kbps |
| Audio Quality: |
Noise Suppression and Echo Cancellation |
| Video Parameters |
| WDR: |
Supported |
| DNR: |
Supported |
| BLC: |
Supported |
| Camera: |
Low Illumination 2 MP HD IR Camera |
| Video Compression Standard: |
H.264 |
| Resolution: |
Main Stream: 1920 × 1080 Sub Stream：720 × 480 |
| Anti-flicker frequency: |
50 Hz, 60 Hz |
| Network Parameters |
| Network Protocol: |
TCP/IP, RTSP |
| Ethernet: |
10/100 Mbps Self-Adaptive Ethernet |
| Light Supplement |
| Light Supplement Mode: |
IR Supplement |
| Alarm Parameters |
| Tampering alarm: |
1 |
| Device Interfaces |
| Debug: |
1 |
| Module-connecting: |
1 |
| Relay Output: |
2(30V, 1A) |
| I/O Input: |
4 |
| General |
| Installation: |
Flush Mounting, Surface Mounting |
| Power Supply: |
IEEE802.3af standard PoE, 12 VDC/1A |
| Power Consumption: |
≤10 W |
| Physical button: |
1 |
| Working Humidity: |
10% to 95% |
| Working Temperature: |
-40° C to +60° C (-40° F to 140° F) |
| IP Protection Level: |
IP65 |
| Dimensions(L × W × H): |
98mm × 99.8mm × 43.9mm(3.86″× 3.93″ ×1.73″) |
