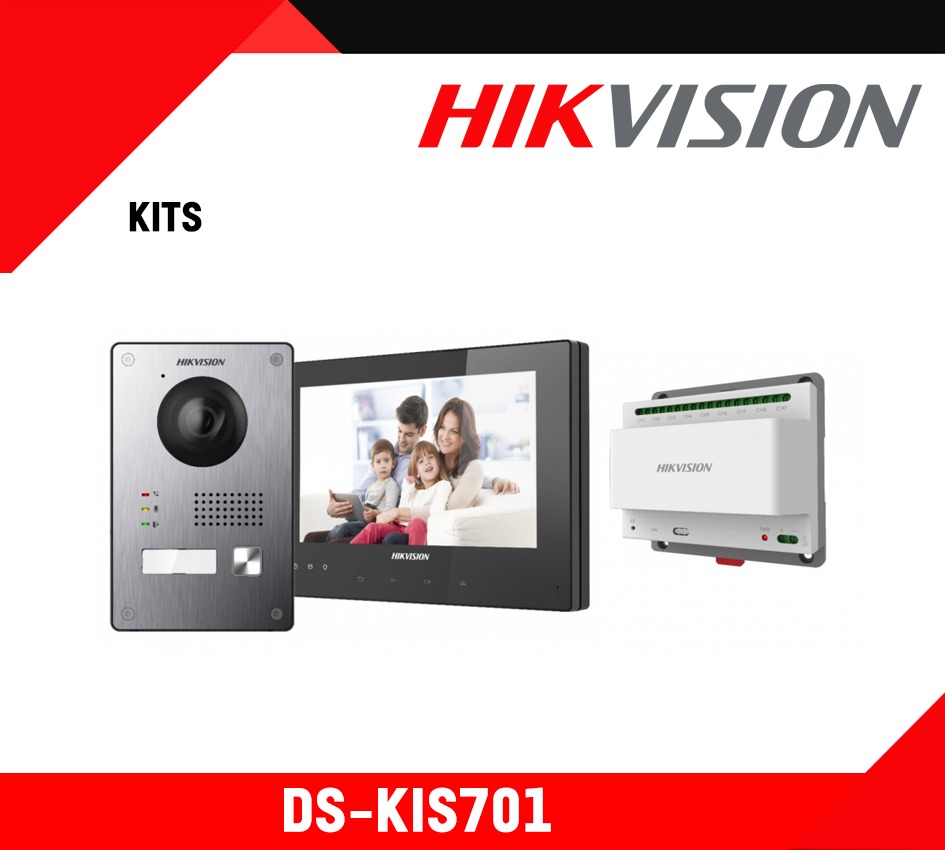

Datasheet of DS-KIS701
Firmware for DS-KH8340-TCE2 download
Firmware for DS-KV8103-IME2 download
| Door Station/Video Parameters | |
|---|---|
| Camera | CMOS Low Illumination 2 MP HD Colorful 155° Fisheye Camera |
| Resolution | 1920 × 1080 |
| Video Frame Rate | NTST: 30 fps PAL: 25 fps |
| Video Compression Standard | H.264 |
| Door Station/Audio Parameters | |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Audio Compression Standard | G.711 U |
| Audio Compression Rate | 64 Kbps |
| Door Station/Light Supplement | |
| Light Supplement Mode | IR Supplement |
| Door Station/Device Interfaces | |
| IO Output | 1-ch 12 VDC Output |
| RS-485 | 1 RS-485 Half-Duplex Port |
| Alarm Input | Door Magnetic Alarm, Tampering Alarm |
| Network Interface | Two-Wire Interface |
| I/O Input | 2 |
| Door Station/General | |
| Material | Stainless Steel |
| Power Consumption | ≤12 W |
| Working Temperature | -30 °C to +60 °C (-22 °F to 140 °F) |
| Working Humidity | 10% to 90% |
| Dimension (L X W X H) | 169 mm x 110 mm x 44 mm (6.65″ x 4.33″ x 1.73″) |
| Protection Level | IP 65 |
| Power Input | Powered by DS-KAD709 |
| Door Station/System Parameters | |
| Processor | High-Performance Embedded SOC Processor |
| Operation System | Embedded Linux Operation System |
| Door Station/Access Control Parameters | |
| Exit Button | Exit Button for Opening the Door |
| Door Magnetic Detection | Detects Door Magnetic Status |
| Door Station/Network Parameters | |
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Network Protocol | TCP/IP, RTSP |
| Indoor Station/Display Parameters | |
| Display Screen | 7-inch Colorful TFT LCD |
| Display Resolution | 1024 × 600 |
| Operation Method | Capacitive Touch Screen, Touch Button |
| Operation Interface | Flattened UI Operation Interface |
| Indoor Station/Audio Parameters | |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Indoor Station/Device Interfaces | |
| Network Interface | Two-Wire Interface |
| RS-485 | 1, Half-duplex Interface |
| Relay Output | 1 |
| Indoor Station/General | |
| Power Supply | Powered by DS-KAD709 |
| Power Consumption | Max. 10 W |
| Working Temperature | -10 ° C to +55 ° C (14 ° F to 131 ° F) |
| Working Humidity | 10% to 90% |
| Dimension (L X W X H) | 196 mm × 133 mm × 25.75 mm (7.72″ × 5.24″ × 1.01″) |
| Installation | Wall Mounting |
| Indoor Station/System Parameters | |
| Processor | High-Performance Embedded SOC Processor |
| Indoor Station/Video Parameter | |
| Video Compression Standard | H.264 |
| Video Audio Distributor/Interfaces | |
| Interface Number | 1, 10/100M Interface |
| Interface Type | 9-ch 2-wire Interface |
| Video Audio Distributor/General | |
| Power Supply | 24 VDC |
| Power Consumption | 60 W |
| Working Temperature | -10 ℃ to 55 ℃ |
| Working Humidity | 10% to 90%, No Condensing |
| Dimension | 112.2 mm x 111 mm x 66 mm (4.42″ × 4.37″ × 2.60″) |
