Description

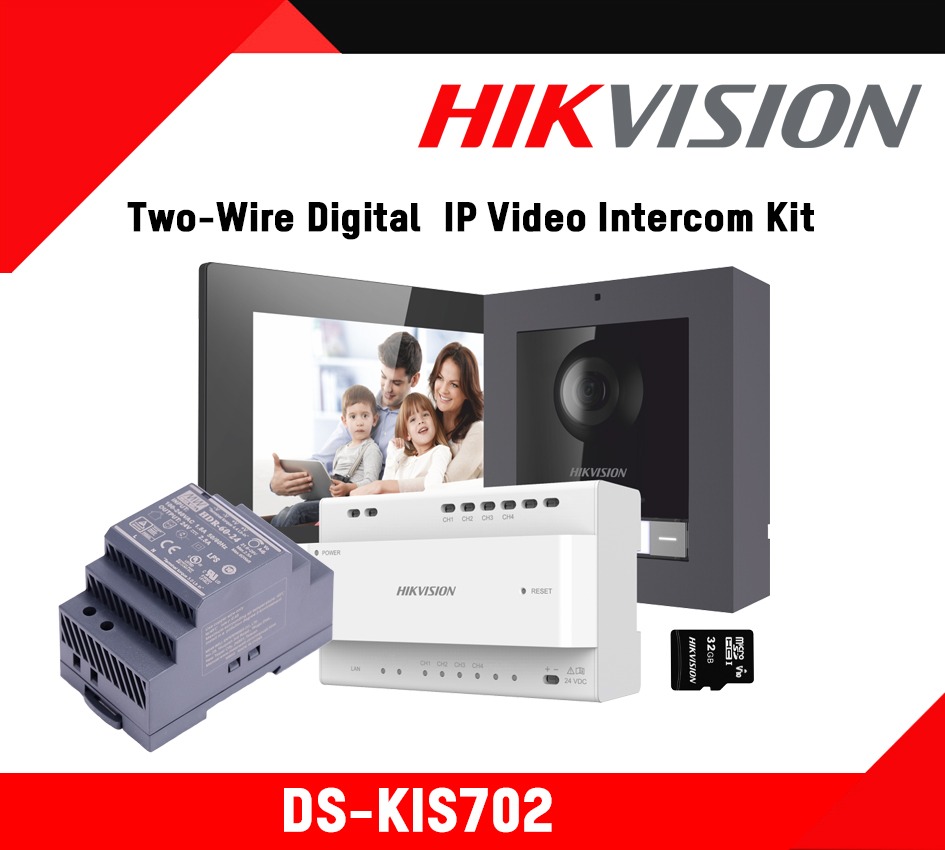

Datasheet: DS-KIS702
Quick Start Guide: DS-KIS702
Door Station/System Parameters
- Processor: Embedded microcontroller
- Operation System: Embedded Linux operation system
- Operation Mode: One touch key
Door Station/Video Parameters
- Camera: 2MP super definition camera
- Resolution
- Main stream: 1920 × 1080, (720p configurable)
- sub stream: 720 × 480
- Night Vision: Support low light and IR light supplement mode
- Backlight Compensation: Support
- Digital Noise Reduction: Support
- WDR: True WDR
- Field Of View: Horizontal 180°, vertical 96°
- Video Compression Standard: H.264
- Stream
- Main stream: 1080p@30fps, 720p@30fps (configurable)
- sub stream: D1
- Motion Detection: Support
- Flash-Avoid Frequency: 50 Hz, 60 Hz
Door Station/Audio Parameters
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Loudspeaker, 20 cm sound effect > 80 db
- Audio Quality: Noise suppression and echo cancellation
- Audio Compression Standard: G.711 U
- Audio Compression Rate: 64 Kbps
- Audio Intercom: Full-duplex two-way audio intercom
Door Station/Device Interfaces
- RS-485: 1 (inter-module connection)
- Alarm Input: 1
Door Station/General
- Working Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Working Humidity: 10% to 90%
- Installation: Wall mounting
- Protection Level: IP 65
- Button: 1
- Power Input: 24 VDC two-wire power supply (< 16 W)
Indoor Station/System Parameters
- Operation System: Embedded Linux operation system
- Processor Basic Frequency: 1 GHz
- Memory: 128 MB
- Flash: 16 MB
Indoor Station/Display Parameters
- Display Screen: 7-inch TFT LCD
- Display Resolution: 1024 × 600
- Operation Method: Capacitive touch
Indoor Station/Audio Parameters
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Quality: Noise suppression and echo cancellation
- Volume: Local or software control
- Audio Compression Standard: G.711 U, G.711 A
- Audio Compression Rate: 64 Kbps
Indoor Station/Network Parameters
- Wired Network: Two-wire network
- Wireless Network: Wi-Fi 802.11b/g/n
- Protocol: TCP/IP, SIP, RTSP
Indoor Station/Device Interfaces
- Network Interface: Two-wire interface
- RS-485: 1
- Alarm Input: 8 zones alarm input
- Relay Output: 2
- TF Card: Support, Max. 32 GB
Indoor Station/General
- Power Supply: Two-wire
- Power Consumption: ≤ 6 W
- Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity: 10% to 90%
- Dimensions (W × H × D): 200 mm × 140 mm × 15.1 mm (7.87″ ×5.51 × 0.59\”)”
Video Audio Distributor/Interfaces
- Network Interface: 1 RJ45
- Two-Wire Interface: 4
- Signal Indicator: 4
- Power Indicator: 1
- Reset: 1
Video Audio Distributor/General
- Power Supply: Two-wire mode
- Power Consumption: CH1 to CH3＜6 W, CH4＜8 W
- Working Temperature: -10 °C to +50 °C (14 °F to +122 °F)
- Working Humidity: 10% to 90%
- Digital Noise Reduction: Support
