Description

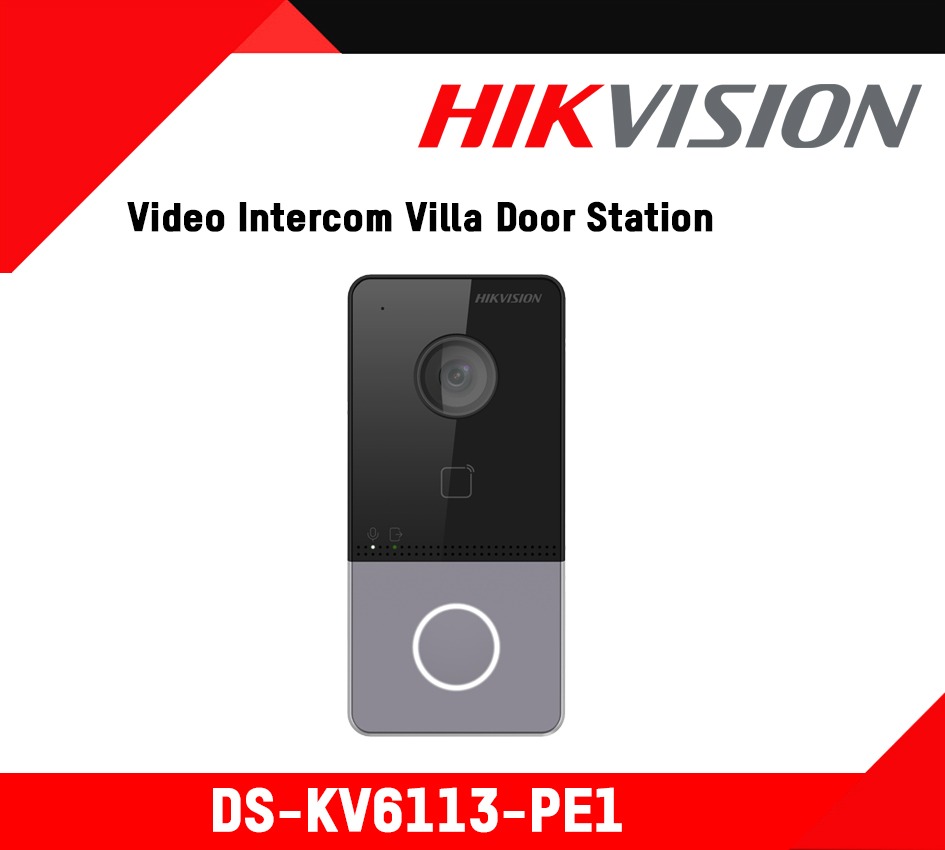

Datasheet: DS-KV6113-PE1
Quick Start Guide: DS-KV6113-PE1
Display Parameters
- Size: /
- Operation Method: /
- Type: /
Video Parameters
- Supplement Light: IR supplement
- Lens: 1
- FOV: Horizontal: 129° Vertical: 75°
- Simultaneous Live View: Up to 3 channels
- Pixel
- Main stream: 1920 × 1080p, 720p
- Sub stream: 704 × 576
Audio Parameters
- Audio Quality: Noise suppression and echo cancellation
Network Parameters
- Communication Protocol: TCP/IP, RTSP
- Wired Network: 10/100 Mbps self-adaptive Ethernet
- Wi-Fi: /
- Bluetooth: /
Device Interfaces
- Network Interface: 1
- Exit Button: 1
- Lock Control: 1
- Door Contact Input: 1
- Power Interface: 1
General
- Button: 1
- Installation: Surface mounting
- Indicator: 2
- Weight: 190g
- Protective Level: IP65
- Power Supply Method: 12 VDC, IEEE802.3af, standard PoE
- Working Temperature: -40° C to +55° C(-40° F to 131° F)
- Working Humidity: 10% to 95%
- Dimensions: 138 mm × 65 mm × 27 mm
- Battery: /
- Application Environment: Outdoor
- Power Consumption: ＜ 10 W
